SPECpower_ssj2008 JVM Instance 'WIN-86FEQPF270A.116' Performance Report

SPECpower_ssj2008

JVM Instance 'WIN-86FEQPF270A.116' Performance Report

Lenovo Global Technology Think System SR665 V3			ssj_ops@100% = 184,766
Test Sponsor:	Lenovo Global Technology	SPEC License #:	9017	Test Method:	Single Node
Tested By:	Lenovo Global Technology	Test Location:	Beijing, China	Test Date:	May 12, 2023
Hardware Availability:	Aug-2023	Software Availability:	May-2023	Publication:	Jun 13, 2023
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

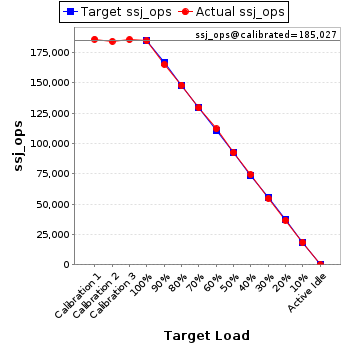

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			186,085
Calibration 2			184,330
Calibration 3			185,724
ssj_ops@calibrated=185,027
100%	99.9%	185,027	184,766
90%	89.3%	166,524	165,289
80%	80.1%	148,021	148,250
70%	70.0%	129,519	129,436
60%	60.6%	111,016	112,153
50%	50.0%	92,513	92,560
40%	40.2%	74,011	74,328
30%	29.6%	55,508	54,677
20%	19.8%	37,005	36,618
10%	10.0%	18,503	18,467
Active Idle		0	0

System Under Test

Set: 'sut'

Set Identifier:	sut
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	'SUT'

Hardware
Hardware Vendor:	Lenovo Global Technology
Model:	Think System SR665 V3
Form Factor:	2U
CPU Name:	AMD EPYC 9754 2.25GHz
CPU Characteristics:	128-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz):	2250
CPU(s) Enabled:	256 cores, 2 chips, 128 cores/chip
Hardware Threads:	512 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 1Rx8 PC5-4800B-RD0; slots 1 to 24 populated
Power Supply Quantity and Rating (W):	1 x 1100
Power Supply Details:	Lenovo P/N:4P57A72666
Disk Drive:	1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4Y37A79663
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08238
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Microsoft Windows Server 2022 Datacenter
OS Version:	Version 21H2(OS Build 20348.1726)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1
JVM Command-line Options:	-server -Xmn1900m -Xms2048m -Xmx2048m -XX:UseAVX=1 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:BiasedLockingStartupDelay=30000 -XX:-ThreadLocalHandshakes -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0-31] /AFFINITY [0xF,0xF0,0xF00,0xF000]
JVM Instances:	128
JVM Initial Heap (MB):	2048
JVM Maximum Heap (MB):	2048
JVM Address Bits:	64
Boot Firmware Version:	KAE111F
Management Firmware Version:	KAX317D
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	KB5026370

Boot Firmware Settings

Choose Operating Mode: Custom Mode
SVM Mode = Disabled
SMEE = Disabled
SRIOV = Disabled
Memory Speed: 4000MHz
SOC P-states: P3
NUMA nodes per socket: NPS4
ACPI SRAT L3 Cache as NUMA Domain: Enable
L1 Stream HW Prefetcher: Disable
L1 Region Prefetcher: Disable
L2 Stream HW Prefetcher: Disable
Core Performance Boost: Disable

Management Firmware Settings

None

System Under Test Notes

Benchmark started via Windows Remote Desktop Connection
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark
Balanced mode
Hard Disk set to turn off after 1 minute
Display set to turn off after 1 minute
Minmum processor state set to 0%.
Maximum processor state set to 100%.
System cooling policy set to passive.
PCIE power management set to maximum power saving.
Using Windows PowerShell, set the following powercfg properties:

Powercfg /setacvalueindex scheme_current sub_processor PROCTHROTTLEMIN 0
Powercfg /setacvalueindex scheme_current sub_processor PROCTHROTTLEMAX 100
Powercfg /setacvalueindex scheme_current sub_processor PERFEPP 0
Powercfg /setacvalueindex scheme_current sub_processor perfautonomous 1
Powercfg /setactive scheme_current

Each JVM instance was bound to 4 logical processors
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
The system ROM used for this result contains AMD AGESA version 0502A00A00000000 for the AMD EPYC 9754 processor

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 512 due to a known inconsistency in processor reporting with this Java version.

Performance Details

Target Load	Actual Load	Transaction Type	Count	Total Heap (MB)
Calibration 1		New Order	13,540,909	2,038
		Payment	13,540,915
		Order Status	1,354,090
		Delivery	1,354,093
		Stock Level	1,354,089
		Customer Report	13,540,912
Calibration 2		New Order	13,416,629	2,038
		Payment	13,416,629
		Order Status	1,341,662
		Delivery	1,341,662
		Stock Level	1,341,662
		Customer Report	13,416,628
Calibration 3		New Order	13,511,906	2,038
		Payment	13,511,899
		Order Status	1,351,192
		Delivery	1,351,188
		Stock Level	1,351,189
		Customer Report	13,511,892
100%	99.9%	New Order	13,442,020	2,038
		Payment	13,442,020
		Order Status	1,344,202
		Delivery	1,344,203
		Stock Level	1,344,203
		Customer Report	13,442,025
90%	89.3%	New Order	12,022,834	2,038
		Payment	12,022,836
		Order Status	1,202,284
		Delivery	1,202,283
		Stock Level	1,202,283
		Customer Report	12,022,827
80%	80.1%	New Order	10,785,662	2,038
		Payment	10,785,661
		Order Status	1,078,565
		Delivery	1,078,567
		Stock Level	1,078,568
		Customer Report	10,785,663
70%	70.0%	New Order	9,416,129	2,038
		Payment	9,416,136
		Order Status	941,614
		Delivery	941,614
		Stock Level	941,613
		Customer Report	9,416,130
60%	60.6%	New Order	8,157,640	2,038
		Payment	8,157,644
		Order Status	815,765
		Delivery	815,761
		Stock Level	815,763
		Customer Report	8,157,642
50%	50.0%	New Order	6,733,735	2,038
		Payment	6,733,742
		Order Status	673,373
		Delivery	673,375
		Stock Level	673,372
		Customer Report	6,733,727
40%	40.2%	New Order	5,406,004	2,038
		Payment	5,405,996
		Order Status	540,601
		Delivery	540,598
		Stock Level	540,601
		Customer Report	5,406,000
30%	29.6%	New Order	3,976,522	2,038
		Payment	3,976,515
		Order Status	397,650
		Delivery	397,653
		Stock Level	397,651
		Customer Report	3,976,515
20%	19.8%	New Order	2,663,272	2,038
		Payment	2,663,270
		Order Status	266,330
		Delivery	266,326
		Stock Level	266,325
		Customer Report	2,663,274
10%	10.0%	New Order	1,343,088	2,038
		Payment	1,343,087
		Order Status	134,308
		Delivery	134,309
		Stock Level	134,309
		Customer Report	1,343,079
Active Idle		New Order	0	2,038
		Payment	0
		Order Status	0
		Delivery	0
		Stock Level	0
		Customer Report	0
