SPECpower_ssj2008 JVM Instance 'WIN-86FEQPF270A.122' Performance Report

SPECpower_ssj2008

JVM Instance 'WIN-86FEQPF270A.122' Performance Report

Lenovo Global Technology Think System SR665 V3			ssj_ops@100% = 189,797
Test Sponsor:	Lenovo Global Technology	SPEC License #:	9017	Test Method:	Single Node
Tested By:	Lenovo Global Technology	Test Location:	Beijing, China	Test Date:	May 12, 2023
Hardware Availability:	Aug-2023	Software Availability:	May-2023	Publication:	Jun 13, 2023
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

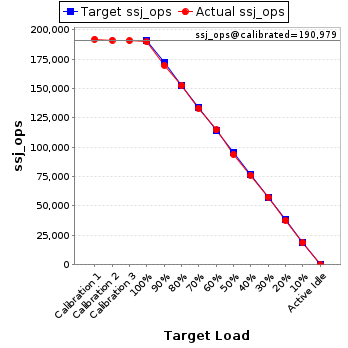

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			192,009
Calibration 2			191,171
Calibration 3			190,786
ssj_ops@calibrated=190,979
100%	99.4%	190,979	189,797
90%	88.9%	171,881	169,859
80%	79.9%	152,783	152,648
70%	69.8%	133,685	133,368
60%	60.1%	114,587	114,762
50%	49.2%	95,489	93,977
40%	39.9%	76,392	76,191
30%	30.2%	57,294	57,609
20%	19.8%	38,196	37,735
10%	9.8%	19,098	18,663
Active Idle		0	0

System Under Test

Set: 'sut'

Set Identifier:	sut
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	'SUT'

Hardware
Hardware Vendor:	Lenovo Global Technology
Model:	Think System SR665 V3
Form Factor:	2U
CPU Name:	AMD EPYC 9754 2.25GHz
CPU Characteristics:	128-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz):	2250
CPU(s) Enabled:	256 cores, 2 chips, 128 cores/chip
Hardware Threads:	512 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 1Rx8 PC5-4800B-RD0; slots 1 to 24 populated
Power Supply Quantity and Rating (W):	1 x 1100
Power Supply Details:	Lenovo P/N:4P57A72666
Disk Drive:	1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4Y37A79663
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08238
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Microsoft Windows Server 2022 Datacenter
OS Version:	Version 21H2(OS Build 20348.1726)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1
JVM Command-line Options:	-server -Xmn1900m -Xms2048m -Xmx2048m -XX:UseAVX=1 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:BiasedLockingStartupDelay=30000 -XX:-ThreadLocalHandshakes -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0-31] /AFFINITY [0xF,0xF0,0xF00,0xF000]
JVM Instances:	128
JVM Initial Heap (MB):	2048
JVM Maximum Heap (MB):	2048
JVM Address Bits:	64
Boot Firmware Version:	KAE111F
Management Firmware Version:	KAX317D
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	KB5026370

Boot Firmware Settings

Choose Operating Mode: Custom Mode
SVM Mode = Disabled
SMEE = Disabled
SRIOV = Disabled
Memory Speed: 4000MHz
SOC P-states: P3
NUMA nodes per socket: NPS4
ACPI SRAT L3 Cache as NUMA Domain: Enable
L1 Stream HW Prefetcher: Disable
L1 Region Prefetcher: Disable
L2 Stream HW Prefetcher: Disable
Core Performance Boost: Disable

Management Firmware Settings

None

System Under Test Notes

Benchmark started via Windows Remote Desktop Connection
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark
Balanced mode
Hard Disk set to turn off after 1 minute
Display set to turn off after 1 minute
Minmum processor state set to 0%.
Maximum processor state set to 100%.
System cooling policy set to passive.
PCIE power management set to maximum power saving.
Using Windows PowerShell, set the following powercfg properties:

Powercfg /setacvalueindex scheme_current sub_processor PROCTHROTTLEMIN 0
Powercfg /setacvalueindex scheme_current sub_processor PROCTHROTTLEMAX 100
Powercfg /setacvalueindex scheme_current sub_processor PERFEPP 0
Powercfg /setacvalueindex scheme_current sub_processor perfautonomous 1
Powercfg /setactive scheme_current

Each JVM instance was bound to 4 logical processors
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
The system ROM used for this result contains AMD AGESA version 0502A00A00000000 for the AMD EPYC 9754 processor

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 512 due to a known inconsistency in processor reporting with this Java version.

Performance Details

Target Load	Actual Load	Transaction Type	Count	Total Heap (MB)
Calibration 1		New Order	13,987,493	2,038
		Payment	13,987,489
		Order Status	1,398,748
		Delivery	1,398,751
		Stock Level	1,398,750
		Customer Report	13,987,495
Calibration 2		New Order	13,907,343	2,038
		Payment	13,907,342
		Order Status	1,390,734
		Delivery	1,390,735
		Stock Level	1,390,734
		Customer Report	13,907,348
Calibration 3		New Order	13,879,292	2,038
		Payment	13,879,293
		Order Status	1,387,930
		Delivery	1,387,930
		Stock Level	1,387,930
		Customer Report	13,879,294
100%	99.4%	New Order	13,804,611	2,038
		Payment	13,804,617
		Order Status	1,380,463
		Delivery	1,380,459
		Stock Level	1,380,459
		Customer Report	13,804,607
90%	88.9%	New Order	12,353,971	2,038
		Payment	12,353,970
		Order Status	1,235,396
		Delivery	1,235,397
		Stock Level	1,235,399
		Customer Report	12,353,968
80%	79.9%	New Order	11,103,455	2,038
		Payment	11,103,446
		Order Status	1,110,346
		Delivery	1,110,345
		Stock Level	1,110,347
		Customer Report	11,103,456
70%	69.8%	New Order	9,706,109	2,038
		Payment	9,706,114
		Order Status	970,612
		Delivery	970,613
		Stock Level	970,613
		Customer Report	9,706,109
60%	60.1%	New Order	8,347,666	2,038
		Payment	8,347,660
		Order Status	834,764
		Delivery	834,768
		Stock Level	834,765
		Customer Report	8,347,659
50%	49.2%	New Order	6,837,064	2,038
		Payment	6,837,066
		Order Status	683,705
		Delivery	683,707
		Stock Level	683,707
		Customer Report	6,837,062
40%	39.9%	New Order	5,541,963	2,038
		Payment	5,541,961
		Order Status	554,196
		Delivery	554,195
		Stock Level	554,195
		Customer Report	5,541,962
30%	30.2%	New Order	4,189,927	2,038
		Payment	4,189,929
		Order Status	418,994
		Delivery	418,993
		Stock Level	418,991
		Customer Report	4,189,935
20%	19.8%	New Order	2,744,719	2,038
		Payment	2,744,721
		Order Status	274,473
		Delivery	274,472
		Stock Level	274,471
		Customer Report	2,744,719
10%	9.8%	New Order	1,357,371	2,038
		Payment	1,357,377
		Order Status	135,737
		Delivery	135,738
		Stock Level	135,737
		Customer Report	1,357,374
Active Idle		New Order	0	2,038
		Payment	0
		Order Status	0
		Delivery	0
		Stock Level	0
		Customer Report	0

http://www.spec.org - info@spec.org

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
