SPECpower_ssj2008 JVM Instance 'WIN-86FEQPF270A.126' Performance Report

SPECpower_ssj2008

JVM Instance 'WIN-86FEQPF270A.126' Performance Report

Lenovo Global Technology Think System SR665 V3			ssj_ops@100% = 187,169
Test Sponsor:	Lenovo Global Technology	SPEC License #:	9017	Test Method:	Single Node
Tested By:	Lenovo Global Technology	Test Location:	Beijing, China	Test Date:	May 12, 2023
Hardware Availability:	Aug-2023	Software Availability:	May-2023	Publication:	Jun 13, 2023
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

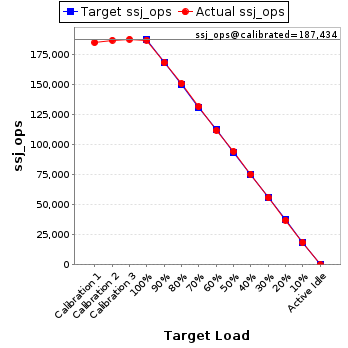

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			185,068
Calibration 2			187,008
Calibration 3			187,861
ssj_ops@calibrated=187,434
100%	99.9%	187,434	187,169
90%	89.8%	168,691	168,332
80%	80.5%	149,947	150,962
70%	70.2%	131,204	131,662
60%	59.7%	112,461	111,841
50%	50.4%	93,717	94,415
40%	40.2%	74,974	75,307
30%	29.8%	56,230	55,779
20%	19.8%	37,487	37,042
10%	9.9%	18,743	18,632
Active Idle		0	0

System Under Test

Set: 'sut'

Set Identifier:	sut
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	'SUT'

Hardware
Hardware Vendor:	Lenovo Global Technology
Model:	Think System SR665 V3
Form Factor:	2U
CPU Name:	AMD EPYC 9754 2.25GHz
CPU Characteristics:	128-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz):	2250
CPU(s) Enabled:	256 cores, 2 chips, 128 cores/chip
Hardware Threads:	512 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 1Rx8 PC5-4800B-RD0; slots 1 to 24 populated
Power Supply Quantity and Rating (W):	1 x 1100
Power Supply Details:	Lenovo P/N:4P57A72666
Disk Drive:	1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4Y37A79663
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08238
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Microsoft Windows Server 2022 Datacenter
OS Version:	Version 21H2(OS Build 20348.1726)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1
JVM Command-line Options:	-server -Xmn1900m -Xms2048m -Xmx2048m -XX:UseAVX=1 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:BiasedLockingStartupDelay=30000 -XX:-ThreadLocalHandshakes -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0-31] /AFFINITY [0xF,0xF0,0xF00,0xF000]
JVM Instances:	128
JVM Initial Heap (MB):	2048
JVM Maximum Heap (MB):	2048
JVM Address Bits:	64
Boot Firmware Version:	KAE111F
Management Firmware Version:	KAX317D
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	KB5026370

Boot Firmware Settings

Choose Operating Mode: Custom Mode
SVM Mode = Disabled
SMEE = Disabled
SRIOV = Disabled
Memory Speed: 4000MHz
SOC P-states: P3
NUMA nodes per socket: NPS4
ACPI SRAT L3 Cache as NUMA Domain: Enable
L1 Stream HW Prefetcher: Disable
L1 Region Prefetcher: Disable
L2 Stream HW Prefetcher: Disable
Core Performance Boost: Disable

Management Firmware Settings

None

System Under Test Notes

Benchmark started via Windows Remote Desktop Connection
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark
Balanced mode
Hard Disk set to turn off after 1 minute
Display set to turn off after 1 minute
Minmum processor state set to 0%.
Maximum processor state set to 100%.
System cooling policy set to passive.
PCIE power management set to maximum power saving.
Using Windows PowerShell, set the following powercfg properties:

Powercfg /setacvalueindex scheme_current sub_processor PROCTHROTTLEMIN 0
Powercfg /setacvalueindex scheme_current sub_processor PROCTHROTTLEMAX 100
Powercfg /setacvalueindex scheme_current sub_processor PERFEPP 0
Powercfg /setacvalueindex scheme_current sub_processor perfautonomous 1
Powercfg /setactive scheme_current

Each JVM instance was bound to 4 logical processors
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
The system ROM used for this result contains AMD AGESA version 0502A00A00000000 for the AMD EPYC 9754 processor

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 512 due to a known inconsistency in processor reporting with this Java version.

Performance Details

Target Load	Actual Load	Transaction Type	Count	Total Heap (MB)
Calibration 1		New Order	13,474,826	2,038
		Payment	13,474,826
		Order Status	1,347,484
		Delivery	1,347,483
		Stock Level	1,347,483
		Customer Report	13,474,821
Calibration 2		New Order	13,607,139	2,038
		Payment	13,607,147
		Order Status	1,360,714
		Delivery	1,360,716
		Stock Level	1,360,714
		Customer Report	13,607,136
Calibration 3		New Order	13,666,455	2,038
		Payment	13,666,452
		Order Status	1,366,645
		Delivery	1,366,647
		Stock Level	1,366,645
		Customer Report	13,666,450
100%	99.9%	New Order	13,614,422	2,038
		Payment	13,614,431
		Order Status	1,361,441
		Delivery	1,361,442
		Stock Level	1,361,441
		Customer Report	13,614,423
90%	89.8%	New Order	12,244,186	2,038
		Payment	12,244,186
		Order Status	1,224,418
		Delivery	1,224,417
		Stock Level	1,224,418
		Customer Report	12,244,185
80%	80.5%	New Order	10,984,338	2,038
		Payment	10,984,338
		Order Status	1,098,434
		Delivery	1,098,434
		Stock Level	1,098,433
		Customer Report	10,984,338
70%	70.2%	New Order	9,577,441	2,038
		Payment	9,577,444
		Order Status	957,744
		Delivery	957,745
		Stock Level	957,744
		Customer Report	9,577,443
60%	59.7%	New Order	8,134,473	2,038
		Payment	8,134,478
		Order Status	813,447
		Delivery	813,449
		Stock Level	813,447
		Customer Report	8,134,475
50%	50.4%	New Order	6,866,699	2,038
		Payment	6,866,701
		Order Status	686,672
		Delivery	686,671
		Stock Level	686,670
		Customer Report	6,866,706
40%	40.2%	New Order	5,477,439	2,038
		Payment	5,477,429
		Order Status	547,744
		Delivery	547,744
		Stock Level	547,742
		Customer Report	5,477,425
30%	29.8%	New Order	4,056,897	2,038
		Payment	4,056,900
		Order Status	405,691
		Delivery	405,689
		Stock Level	405,690
		Customer Report	4,056,902
20%	19.8%	New Order	2,694,071	2,038
		Payment	2,694,081
		Order Status	269,407
		Delivery	269,409
		Stock Level	269,407
		Customer Report	2,694,072
10%	9.9%	New Order	1,355,143	2,038
		Payment	1,355,134
		Order Status	135,513
		Delivery	135,513
		Stock Level	135,516
		Customer Report	1,355,143
Active Idle		New Order	0	2,038
		Payment	0
		Order Status	0
		Delivery	0
		Stock Level	0
		Customer Report	0

http://www.spec.org - info@spec.org

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
