SPECpower_ssj2008

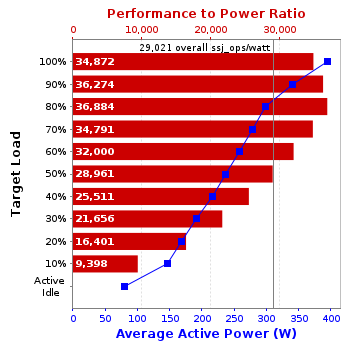

Supermicro Server AS-1015CS-TNR			SPECpower_ssj2008 = 29,021 overall ssj_ops/watt
Test Sponsor:	Supermicro	SPEC License #:	1176	Test Method:	Single Node
Tested By:	Supermicro	Test Location:	Zhonghe Dist, New Taipei City, Taiwan (R.O.C.)	Test Date:	May 27, 2023
Hardware Availability:	Nov-2022	Software Availability:	May-2023	Publication:	Jun 21, 2023
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Supermicro
Model:	Server AS-1015CS-TNR
Form Factor:	1U
CPU Name:	AMD EPYC 9754,2.25GHz
CPU Characteristics:	128 Core, 2.25GHz, 256 MB cache
CPU Frequency (MHz):	2250
CPU(s) Enabled:	128 cores, 1 chip, 128 cores/chip
Hardware Threads:	256 (2 / core)
CPU(s) Orderable:	1 chip
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	12 x 32 GB
Memory Details:	32GB 2Rx8 DDR5-4800; CPU1 A1,B1,C1,D1,E1,F1,G1,H1,I1,J1,K1,L1 populated.
Power Supply Quantity and Rating (W):	1 x 860
Power Supply Details:	PWS-860P-1R2
Disk Drive:	1x480GB M.2 NVMe GEN4 Micron,MTFDKBA480TFR-1BC1ZABYY
Disk Controller:	onboard SCU controller
# and type of Network Interface Cards (NICs) Installed:	1 x Dual Intel I350 Gigabit Ethernet controller, AOC-AG-i2M
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Power Saver (see SUT Notes)
Operating System (OS):	Microsoft Windows Server 2022 Datacenter
OS Version:	Version 10.0.20348 Build 20348
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	OpenJDK 64-Bit Server VM build 17.0.1+12-39, mixed mode
JVM Command-line Options:	-server -Xms2048m -Xmx2048m -Xmn1900m -XX:+UseParallelGC -XX:ParallelGCThreads=4 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:InlineSmallCode=1500 -XX:UseAVX=1 XX:AutoBoxCacheMax=20000-XX:+OptimizeFill -XX:+AggressiveHeap
JVM Affinity:	start /NODE [0-15] /AFFINITY [0xF, 0xF0, 0xF00, 0xF000]
JVM Instances:	64
JVM Initial Heap (MB):	2048
JVM Maximum Heap (MB):	2048
JVM Address Bits:	64
Boot Firmware Version:	1.4
Management Firmware Version:	01.00.18
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	KB5026370

None

SPECpower_ssj.props input.load_level.number_warehouses set to 256 due to a known inconsistency in processor reporting with this Java version.
The test was started via Remote Desktop
JVM Settings:

Each JVM instance was bound to 4 logical processors
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.

YES: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
YES: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
YES: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
The system ROM used for this result contains AMD AGESA version 0802A00A00000000 for the AMD EPYC 9754 processor

Software
Operating System (OS):	Microsoft Windows Server 2019 Datacenter
JVM Vendor:	Oracle Corporation
JVM Version:	Jave(TM) SE Runtime Environment (build 1.7.0_80-b15) Java HotSpot(TM) 64-Bit Server VM(build 24.80-b11)
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	Yokogawa Meters and Instruments Corporation.
Model:	WT310
Serial Number:	C3RF27027E
Connectivity:	GPIB
Input Connection:	Default
Metrology Institute:	NML (National Measurement Laboratory)
Accredited by:	Omnio Calibration Lab. Co., Ltd.
Calibration Label:	OCL-230203F01008
Date of Calibration:	03-Feb-2023
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.10.0-82175bac-20220817
Setup Description:	SUT Power Supply

Temperature Sensor temp1
Hardware Vendor:	Digi International Inc.
Model:	Watchport/H
Driver Version:	5.10.26.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	10 mm in front of SUT main air intake

None

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	394	30.6
90%	341	30.2
80%	299	30.3
70%	278	30.8
60%	258	30.8
50%	237	30.2
40%	217	30.2
30%	191	30.6
20%	168	30.8
10%	147	30.4
Active Idle	79.6	30.3

Line Standard	Minimum Temperature (°C)	Elevation (m)
220V / 50 Hz / 1 phase / 2 wires	30.2	10

See the Power/Temperature Details Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
