SPECpower_ssj2008 JVM Instance 'localhost.050' Performance Report

SPECpower_ssj2008

JVM Instance 'localhost.050' Performance Report

ASUSTeK Computer Inc. RS720A-E12-RS12			ssj_ops@100% = 210,563
Test Sponsor:	ASUSTeK Computer Inc.	SPEC License #:	9016	Test Method:	Single Node
Tested By:	ASUSTeK Computer Inc.	Test Location:	Taipei, Taiwan.	Test Date:	May 30, 2023
Hardware Availability:	Jun-2023	Software Availability:	Jan-2023	Publication:	Jun 21, 2023
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

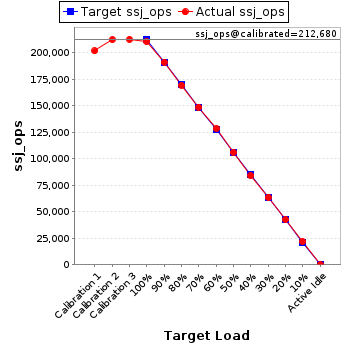

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			201,821
Calibration 2			212,449
Calibration 3			212,911
ssj_ops@calibrated=212,680
100%	99.0%	212,680	210,563
90%	90.0%	191,412	191,343
80%	79.6%	170,144	169,329
70%	70.0%	148,876	148,827
60%	60.5%	127,608	128,614
50%	50.0%	106,340	106,323
40%	39.4%	85,072	83,857
30%	29.9%	63,804	63,518
20%	20.0%	42,536	42,577
10%	10.2%	21,268	21,790
Active Idle		0	0

System Under Test

Set: 'RS720A-E12-RS12'

Set Identifier:	RS720A-E12-RS12
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	'SUT'

Hardware
Hardware Vendor:	ASUSTeK Computer Inc.
Model:	RS720A-E12-RS12
Form Factor:	2U
CPU Name:	AMD EPYC 9754
CPU Characteristics:	128-Core, 2.25GHz, AMD Core Performance Boost up to 3.10GHz, 256MB L3 Cache
CPU Frequency (MHz):	2250
CPU(s) Enabled:	256 cores, 2 chips, 128 cores/chip
Hardware Threads:	512 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16 GB
Memory Details:	24 x 16GB 1Rx8 PC5-4800B-R ECC RDIMM; all DIMM slots populated
Power Supply Quantity and Rating (W):	1 x 1600
Power Supply Details:	CHICONY R18-1K6P1WA REV:01 P/N: 0A100-00250800
Disk Drive:	1 x 512GB Samsung P4X4 M.2 PCIE SSD P/N: 03B03-00378600
Disk Controller:	Integrated PCIe controller
# and type of Network Interface Cards (NICs) Installed:	1 x Quad-port Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected:	1/1/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (See SUT Notes)
Operating System (OS):	SUSE Linux Enterprise Server 15 SP4
OS Version:	5.14.21-150400.22-default
Filesystem:	xfs
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.18+9-LTS-195, mixed mode), version 11.0.18
JVM Command-line Options:	-server -Xmn1825m -Xms1995m -Xmx1995m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:-ThreadLocalHandshakes
JVM Affinity:	for each even physicalCoreId { numactl -C physicalCoreId, physicalCoreId+1, physicalCoreId + 256, physicalCoreId + 257 --membind=0-31}
JVM Instances:	128
JVM Initial Heap (MB):	1995
JVM Maximum Heap (MB):	1995
JVM Address Bits:	64
Boot Firmware Version:	0902
Management Firmware Version:	1.1.37
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	ASUS Control Center V1.4.3.5

Boot Firmware Settings

SVM Mode = Disabled
SR-IOV Support = Disabled
SMEE = Disable
L1 Stream HW Prefetcher = Disable
L1 Region Prefetcher = Disable
L2 Stream HW Prefetcher = Disable
Power Balancer = Enabled by ACC
Policy = Manual
CPU Max frequency = 2500
NUMA nodes per socket = NPS4
DDR Power Down Enable = Enabled
APBDIS = 1
DfPstate = 2
Memory Target Speed = DDR4000
Determinism Control = Manual
Determinism Enable = Power
TDP Control = Manual
TDP =400
PPT Control = Manual
PPT =400
Power Profile Selection = Efficiency Mode
ACPI SRAT L3 Cache As NUMA Domain = Enabled
4-link xGMI max speed = 12Gbps
3-link xGMI max speed = 12Gbps
xGMI Link Configuration = 3 xGMI Links
SATA Enable = Disabled
LAN2 Enable = Disabled
LAN3 Enable = Disabled
LAN4 Enable = Disabled
PCIE Link Speed Capability = Gen1

Management Firmware Settings

None

System Under Test Notes

kernal parameter:pcie_aspm=force pcie_aspm.policy=powersupersave
Benchmark started via ssh
cpupower frequency-set -g ondemand
echo -n 98 > /sys/devices/system/cpu/cpufreq/ondemand/up_threshold
echo -n 1000000 > /sys/devices/system/cpu/cpufreq/ondemand/sampling_rate
echo 0 > /proc/sys/kernel/nmi_watchdog
sysctl -w kernel.sched_migration_cost_ns=6000
sysctl -w kernel.sched_min_granularity_ns=10000000
sysctl -w vm.swappiness=50
N/A:The test sponsor attests, as of date of publication, the CVE-2017-5754(Meltdown) is mitigated in the system as tested and documented.
Yes:The test sponsor attests, as of date of publication, the CVE-2017-5753(Spectre variant 1) is mitigated in the system as tested and documented.
Yes:The test sponsor attests, as of date of publication, the CVE-2017-5715(Spectre variant 2) is mitigated in the system as tested and documented.
The system ROM used for this result contains AMD AGESA version 0xAA00205 for the AMD EPYC 9754 processor

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 512 due to a known inconsistency in processor reporting with this Java version.

Performance Details

Target Load	Actual Load	Transaction Type	Count	Total Heap (MB)
Calibration 1		New Order	14,679,034	1,986
		Payment	14,679,030
		Order Status	1,467,905
		Delivery	1,467,902
		Stock Level	1,467,906
		Customer Report	14,679,031
Calibration 2		New Order	15,450,897	1,986
		Payment	15,450,896
		Order Status	1,545,091
		Delivery	1,545,089
		Stock Level	1,545,091
		Customer Report	15,450,892
Calibration 3		New Order	15,484,439	1,986
		Payment	15,484,437
		Order Status	1,548,444
		Delivery	1,548,444
		Stock Level	1,548,444
		Customer Report	15,484,433
100%	99.0%	New Order	15,313,703	1,986
		Payment	15,313,713
		Order Status	1,531,371
		Delivery	1,531,370
		Stock Level	1,531,372
		Customer Report	15,313,718
90%	90.0%	New Order	13,916,764	1,986
		Payment	13,916,766
		Order Status	1,391,675
		Delivery	1,391,674
		Stock Level	1,391,677
		Customer Report	13,916,767
80%	79.6%	New Order	12,315,449	1,986
		Payment	12,315,440
		Order Status	1,231,544
		Delivery	1,231,543
		Stock Level	1,231,544
		Customer Report	12,315,443
70%	70.0%	New Order	10,825,517	1,986
		Payment	10,825,517
		Order Status	1,082,550
		Delivery	1,082,552
		Stock Level	1,082,551
		Customer Report	10,825,506
60%	60.5%	New Order	9,353,738	1,986
		Payment	9,353,744
		Order Status	935,376
		Delivery	935,374
		Stock Level	935,373
		Customer Report	9,353,742
50%	50.0%	New Order	7,732,579	1,986
		Payment	7,732,579
		Order Status	773,258
		Delivery	773,258
		Stock Level	773,257
		Customer Report	7,732,580
40%	39.4%	New Order	6,098,756	1,986
		Payment	6,098,751
		Order Status	609,876
		Delivery	609,874
		Stock Level	609,876
		Customer Report	6,098,757
30%	29.9%	New Order	4,619,507	1,986
		Payment	4,619,524
		Order Status	461,953
		Delivery	461,954
		Stock Level	461,954
		Customer Report	4,619,516
20%	20.0%	New Order	3,096,523	1,986
		Payment	3,096,520
		Order Status	309,650
		Delivery	309,652
		Stock Level	309,652
		Customer Report	3,096,513
10%	10.2%	New Order	1,584,694	1,986
		Payment	1,584,694
		Order Status	158,470
		Delivery	158,469
		Stock Level	158,469
		Customer Report	1,584,694
Active Idle		New Order	0	1,986
		Payment	0
		Order Status	0
		Delivery	0
		Stock Level	0
		Customer Report	0
