SPECpower_ssj2008 JVM Instance 'localhost.072' Performance Report

SPECpower_ssj2008

JVM Instance 'localhost.072' Performance Report

ASUSTeK Computer Inc. RS720A-E12-RS12			ssj_ops@100% = 207,626
Test Sponsor:	ASUSTeK Computer Inc.	SPEC License #:	9016	Test Method:	Single Node
Tested By:	ASUSTeK Computer Inc.	Test Location:	Taipei, Taiwan.	Test Date:	May 30, 2023
Hardware Availability:	Jun-2023	Software Availability:	Jan-2023	Publication:	Jun 21, 2023
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

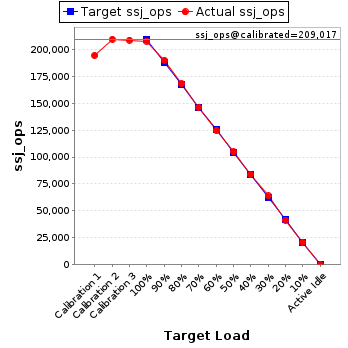

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			194,327
Calibration 2			209,387
Calibration 3			208,647
ssj_ops@calibrated=209,017
100%	99.3%	209,017	207,626
90%	90.9%	188,115	190,019
80%	80.5%	167,213	168,158
70%	70.0%	146,312	146,239
60%	59.6%	125,410	124,634
50%	50.1%	104,508	104,727
40%	40.1%	83,607	83,797
30%	30.5%	62,705	63,825
20%	19.8%	41,803	41,455
10%	10.0%	20,902	20,983
Active Idle		0	0

System Under Test

Set: 'RS720A-E12-RS12'

Set Identifier:	RS720A-E12-RS12
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	'SUT'

Hardware
Hardware Vendor:	ASUSTeK Computer Inc.
Model:	RS720A-E12-RS12
Form Factor:	2U
CPU Name:	AMD EPYC 9754
CPU Characteristics:	128-Core, 2.25GHz, AMD Core Performance Boost up to 3.10GHz, 256MB L3 Cache
CPU Frequency (MHz):	2250
CPU(s) Enabled:	256 cores, 2 chips, 128 cores/chip
Hardware Threads:	512 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16 GB
Memory Details:	24 x 16GB 1Rx8 PC5-4800B-R ECC RDIMM; all DIMM slots populated
Power Supply Quantity and Rating (W):	1 x 1600
Power Supply Details:	CHICONY R18-1K6P1WA REV:01 P/N: 0A100-00250800
Disk Drive:	1 x 512GB Samsung P4X4 M.2 PCIE SSD P/N: 03B03-00378600
Disk Controller:	Integrated PCIe controller
# and type of Network Interface Cards (NICs) Installed:	1 x Quad-port Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected:	1/1/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (See SUT Notes)
Operating System (OS):	SUSE Linux Enterprise Server 15 SP4
OS Version:	5.14.21-150400.22-default
Filesystem:	xfs
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.18+9-LTS-195, mixed mode), version 11.0.18
JVM Command-line Options:	-server -Xmn1825m -Xms1995m -Xmx1995m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:-ThreadLocalHandshakes
JVM Affinity:	for each even physicalCoreId { numactl -C physicalCoreId, physicalCoreId+1, physicalCoreId + 256, physicalCoreId + 257 --membind=0-31}
JVM Instances:	128
JVM Initial Heap (MB):	1995
JVM Maximum Heap (MB):	1995
JVM Address Bits:	64
Boot Firmware Version:	0902
Management Firmware Version:	1.1.37
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	ASUS Control Center V1.4.3.5

Boot Firmware Settings

SVM Mode = Disabled
SR-IOV Support = Disabled
SMEE = Disable
L1 Stream HW Prefetcher = Disable
L1 Region Prefetcher = Disable
L2 Stream HW Prefetcher = Disable
Power Balancer = Enabled by ACC
Policy = Manual
CPU Max frequency = 2500
NUMA nodes per socket = NPS4
DDR Power Down Enable = Enabled
APBDIS = 1
DfPstate = 2
Memory Target Speed = DDR4000
Determinism Control = Manual
Determinism Enable = Power
TDP Control = Manual
TDP =400
PPT Control = Manual
PPT =400
Power Profile Selection = Efficiency Mode
ACPI SRAT L3 Cache As NUMA Domain = Enabled
4-link xGMI max speed = 12Gbps
3-link xGMI max speed = 12Gbps
xGMI Link Configuration = 3 xGMI Links
SATA Enable = Disabled
LAN2 Enable = Disabled
LAN3 Enable = Disabled
LAN4 Enable = Disabled
PCIE Link Speed Capability = Gen1

Management Firmware Settings

None

System Under Test Notes

kernal parameter:pcie_aspm=force pcie_aspm.policy=powersupersave
Benchmark started via ssh
cpupower frequency-set -g ondemand
echo -n 98 > /sys/devices/system/cpu/cpufreq/ondemand/up_threshold
echo -n 1000000 > /sys/devices/system/cpu/cpufreq/ondemand/sampling_rate
echo 0 > /proc/sys/kernel/nmi_watchdog
sysctl -w kernel.sched_migration_cost_ns=6000
sysctl -w kernel.sched_min_granularity_ns=10000000
sysctl -w vm.swappiness=50
N/A:The test sponsor attests, as of date of publication, the CVE-2017-5754(Meltdown) is mitigated in the system as tested and documented.
Yes:The test sponsor attests, as of date of publication, the CVE-2017-5753(Spectre variant 1) is mitigated in the system as tested and documented.
Yes:The test sponsor attests, as of date of publication, the CVE-2017-5715(Spectre variant 2) is mitigated in the system as tested and documented.
The system ROM used for this result contains AMD AGESA version 0xAA00205 for the AMD EPYC 9754 processor

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 512 due to a known inconsistency in processor reporting with this Java version.

Performance Details

Target Load	Actual Load	Transaction Type	Count	Total Heap (MB)
Calibration 1		New Order	14,134,732	1,986
		Payment	14,134,729
		Order Status	1,413,472
		Delivery	1,413,474
		Stock Level	1,413,475
		Customer Report	14,134,730
Calibration 2		New Order	15,228,939	1,986
		Payment	15,228,939
		Order Status	1,522,895
		Delivery	1,522,892
		Stock Level	1,522,893
		Customer Report	15,228,946
Calibration 3		New Order	15,174,352	1,986
		Payment	15,174,356
		Order Status	1,517,436
		Delivery	1,517,435
		Stock Level	1,517,435
		Customer Report	15,174,352
100%	99.3%	New Order	15,100,217	1,986
		Payment	15,100,212
		Order Status	1,510,023
		Delivery	1,510,021
		Stock Level	1,510,020
		Customer Report	15,100,220
90%	90.9%	New Order	13,819,699	1,986
		Payment	13,819,701
		Order Status	1,381,969
		Delivery	1,381,971
		Stock Level	1,381,968
		Customer Report	13,819,698
80%	80.5%	New Order	12,230,638	1,986
		Payment	12,230,639
		Order Status	1,223,064
		Delivery	1,223,064
		Stock Level	1,223,064
		Customer Report	12,230,646
70%	70.0%	New Order	10,635,559	1,986
		Payment	10,635,552
		Order Status	1,063,556
		Delivery	1,063,555
		Stock Level	1,063,556
		Customer Report	10,635,551
60%	59.6%	New Order	9,064,338	1,986
		Payment	9,064,324
		Order Status	906,433
		Delivery	906,432
		Stock Level	906,433
		Customer Report	9,064,335
50%	50.1%	New Order	7,616,508	1,986
		Payment	7,616,507
		Order Status	761,650
		Delivery	761,651
		Stock Level	761,649
		Customer Report	7,616,509
40%	40.1%	New Order	6,094,419	1,986
		Payment	6,094,425
		Order Status	609,441
		Delivery	609,444
		Stock Level	609,441
		Customer Report	6,094,420
30%	30.5%	New Order	4,641,807	1,986
		Payment	4,641,807
		Order Status	464,178
		Delivery	464,181
		Stock Level	464,180
		Customer Report	4,641,802
20%	19.8%	New Order	3,014,951	1,986
		Payment	3,014,948
		Order Status	301,495
		Delivery	301,494
		Stock Level	301,496
		Customer Report	3,014,946
10%	10.0%	New Order	1,526,032	1,986
		Payment	1,526,035
		Order Status	152,604
		Delivery	152,604
		Stock Level	152,602
		Customer Report	1,526,033
Active Idle		New Order	0	1,986
		Payment	0
		Order Status	0
		Delivery	0
		Stock Level	0
		Customer Report	0
