SPECpower_ssj2008 JVM Instance 'localhost.086' Performance Report

SPECpower_ssj2008

JVM Instance 'localhost.086' Performance Report

ASUSTeK Computer Inc. RS720A-E12-RS12			ssj_ops@100% = 209,842
Test Sponsor:	ASUSTeK Computer Inc.	SPEC License #:	9016	Test Method:	Single Node
Tested By:	ASUSTeK Computer Inc.	Test Location:	Taipei, Taiwan.	Test Date:	May 30, 2023
Hardware Availability:	Jun-2023	Software Availability:	Jan-2023	Publication:	Jun 21, 2023
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

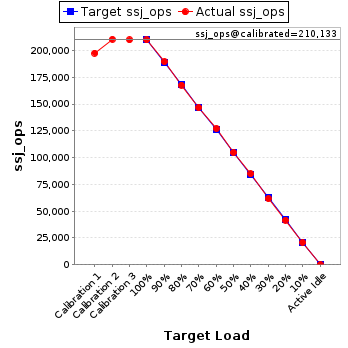

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			197,584
Calibration 2			210,479
Calibration 3			209,788
ssj_ops@calibrated=210,133
100%	99.9%	210,133	209,842
90%	90.2%	189,120	189,484
80%	79.8%	168,107	167,748
70%	69.8%	147,093	146,614
60%	60.5%	126,080	127,146
50%	49.9%	105,067	104,834
40%	40.4%	84,053	84,828
30%	29.3%	63,040	61,641
20%	19.8%	42,027	41,629
10%	9.9%	21,013	20,850
Active Idle		0	0

System Under Test

Set: 'RS720A-E12-RS12'

Set Identifier:	RS720A-E12-RS12
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	'SUT'

Hardware
Hardware Vendor:	ASUSTeK Computer Inc.
Model:	RS720A-E12-RS12
Form Factor:	2U
CPU Name:	AMD EPYC 9754
CPU Characteristics:	128-Core, 2.25GHz, AMD Core Performance Boost up to 3.10GHz, 256MB L3 Cache
CPU Frequency (MHz):	2250
CPU(s) Enabled:	256 cores, 2 chips, 128 cores/chip
Hardware Threads:	512 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16 GB
Memory Details:	24 x 16GB 1Rx8 PC5-4800B-R ECC RDIMM; all DIMM slots populated
Power Supply Quantity and Rating (W):	1 x 1600
Power Supply Details:	CHICONY R18-1K6P1WA REV:01 P/N: 0A100-00250800
Disk Drive:	1 x 512GB Samsung P4X4 M.2 PCIE SSD P/N: 03B03-00378600
Disk Controller:	Integrated PCIe controller
# and type of Network Interface Cards (NICs) Installed:	1 x Quad-port Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected:	1/1/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (See SUT Notes)
Operating System (OS):	SUSE Linux Enterprise Server 15 SP4
OS Version:	5.14.21-150400.22-default
Filesystem:	xfs
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.18+9-LTS-195, mixed mode), version 11.0.18
JVM Command-line Options:	-server -Xmn1825m -Xms1995m -Xmx1995m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:-ThreadLocalHandshakes
JVM Affinity:	for each even physicalCoreId { numactl -C physicalCoreId, physicalCoreId+1, physicalCoreId + 256, physicalCoreId + 257 --membind=0-31}
JVM Instances:	128
JVM Initial Heap (MB):	1995
JVM Maximum Heap (MB):	1995
JVM Address Bits:	64
Boot Firmware Version:	0902
Management Firmware Version:	1.1.37
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	ASUS Control Center V1.4.3.5

Boot Firmware Settings

SVM Mode = Disabled
SR-IOV Support = Disabled
SMEE = Disable
L1 Stream HW Prefetcher = Disable
L1 Region Prefetcher = Disable
L2 Stream HW Prefetcher = Disable
Power Balancer = Enabled by ACC
Policy = Manual
CPU Max frequency = 2500
NUMA nodes per socket = NPS4
DDR Power Down Enable = Enabled
APBDIS = 1
DfPstate = 2
Memory Target Speed = DDR4000
Determinism Control = Manual
Determinism Enable = Power
TDP Control = Manual
TDP =400
PPT Control = Manual
PPT =400
Power Profile Selection = Efficiency Mode
ACPI SRAT L3 Cache As NUMA Domain = Enabled
4-link xGMI max speed = 12Gbps
3-link xGMI max speed = 12Gbps
xGMI Link Configuration = 3 xGMI Links
SATA Enable = Disabled
LAN2 Enable = Disabled
LAN3 Enable = Disabled
LAN4 Enable = Disabled
PCIE Link Speed Capability = Gen1

Management Firmware Settings

None

System Under Test Notes

kernal parameter:pcie_aspm=force pcie_aspm.policy=powersupersave
Benchmark started via ssh
cpupower frequency-set -g ondemand
echo -n 98 > /sys/devices/system/cpu/cpufreq/ondemand/up_threshold
echo -n 1000000 > /sys/devices/system/cpu/cpufreq/ondemand/sampling_rate
echo 0 > /proc/sys/kernel/nmi_watchdog
sysctl -w kernel.sched_migration_cost_ns=6000
sysctl -w kernel.sched_min_granularity_ns=10000000
sysctl -w vm.swappiness=50
N/A:The test sponsor attests, as of date of publication, the CVE-2017-5754(Meltdown) is mitigated in the system as tested and documented.
Yes:The test sponsor attests, as of date of publication, the CVE-2017-5753(Spectre variant 1) is mitigated in the system as tested and documented.
Yes:The test sponsor attests, as of date of publication, the CVE-2017-5715(Spectre variant 2) is mitigated in the system as tested and documented.
The system ROM used for this result contains AMD AGESA version 0xAA00205 for the AMD EPYC 9754 processor

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 512 due to a known inconsistency in processor reporting with this Java version.

Performance Details

Target Load	Actual Load	Transaction Type	Count	Total Heap (MB)
Calibration 1		New Order	14,370,108	1,986
		Payment	14,370,119
		Order Status	1,437,011
		Delivery	1,437,012
		Stock Level	1,437,011
		Customer Report	14,370,109
Calibration 2		New Order	15,307,558	1,986
		Payment	15,307,565
		Order Status	1,530,757
		Delivery	1,530,756
		Stock Level	1,530,755
		Customer Report	15,307,559
Calibration 3		New Order	15,257,999	1,986
		Payment	15,258,005
		Order Status	1,525,799
		Delivery	1,525,800
		Stock Level	1,525,800
		Customer Report	15,258,007
100%	99.9%	New Order	15,261,616	1,986
		Payment	15,261,610
		Order Status	1,526,163
		Delivery	1,526,163
		Stock Level	1,526,162
		Customer Report	15,261,611
90%	90.2%	New Order	13,782,051	1,986
		Payment	13,782,041
		Order Status	1,378,204
		Delivery	1,378,202
		Stock Level	1,378,205
		Customer Report	13,782,046
80%	79.8%	New Order	12,199,904	1,986
		Payment	12,199,902
		Order Status	1,219,987
		Delivery	1,219,989
		Stock Level	1,219,991
		Customer Report	12,199,903
70%	69.8%	New Order	10,662,843	1,986
		Payment	10,662,830
		Order Status	1,066,284
		Delivery	1,066,284
		Stock Level	1,066,284
		Customer Report	10,662,840
60%	60.5%	New Order	9,246,994	1,986
		Payment	9,246,997
		Order Status	924,701
		Delivery	924,700
		Stock Level	924,701
		Customer Report	9,246,992
50%	49.9%	New Order	7,624,295	1,986
		Payment	7,624,291
		Order Status	762,428
		Delivery	762,429
		Stock Level	762,429
		Customer Report	7,624,298
40%	40.4%	New Order	6,169,450	1,986
		Payment	6,169,450
		Order Status	616,945
		Delivery	616,947
		Stock Level	616,944
		Customer Report	6,169,440
30%	29.3%	New Order	4,482,956	1,986
		Payment	4,482,951
		Order Status	448,296
		Delivery	448,295
		Stock Level	448,295
		Customer Report	4,482,960
20%	19.8%	New Order	3,027,574	1,986
		Payment	3,027,576
		Order Status	302,756
		Delivery	302,758
		Stock Level	302,759
		Customer Report	3,027,577
10%	9.9%	New Order	1,516,364	1,986
		Payment	1,516,365
		Order Status	151,635
		Delivery	151,636
		Stock Level	151,637
		Customer Report	1,516,363
Active Idle		New Order	0	1,986
		Payment	0
		Order Status	0
		Delivery	0
		Stock Level	0
		Customer Report	0
