SPECpower_ssj2008 JVM Instance 'localhost.089' Performance Report

SPECpower_ssj2008

JVM Instance 'localhost.089' Performance Report

ASUSTeK Computer Inc. RS720A-E12-RS12			ssj_ops@100% = 210,786
Test Sponsor:	ASUSTeK Computer Inc.	SPEC License #:	9016	Test Method:	Single Node
Tested By:	ASUSTeK Computer Inc.	Test Location:	Taipei, Taiwan.	Test Date:	May 30, 2023
Hardware Availability:	Jun-2023	Software Availability:	Jan-2023	Publication:	Jun 21, 2023
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

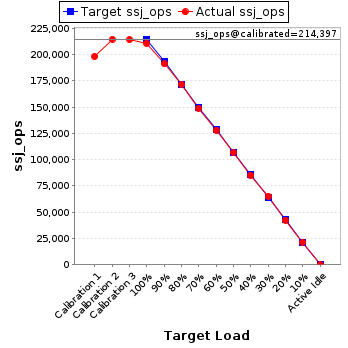

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			198,187
Calibration 2			214,623
Calibration 3			214,171
ssj_ops@calibrated=214,397
100%	98.3%	214,397	210,786
90%	89.2%	192,957	191,178
80%	80.0%	171,517	171,507
70%	69.5%	150,078	149,021
60%	59.7%	128,638	128,057
50%	49.8%	107,198	106,679
40%	39.7%	85,759	85,113
30%	30.3%	64,319	64,976
20%	19.8%	42,879	42,463
10%	10.1%	21,440	21,570
Active Idle		0	0

System Under Test

Set: 'RS720A-E12-RS12'

Set Identifier:	RS720A-E12-RS12
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	'SUT'

Hardware
Hardware Vendor:	ASUSTeK Computer Inc.
Model:	RS720A-E12-RS12
Form Factor:	2U
CPU Name:	AMD EPYC 9754
CPU Characteristics:	128-Core, 2.25GHz, AMD Core Performance Boost up to 3.10GHz, 256MB L3 Cache
CPU Frequency (MHz):	2250
CPU(s) Enabled:	256 cores, 2 chips, 128 cores/chip
Hardware Threads:	512 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16 GB
Memory Details:	24 x 16GB 1Rx8 PC5-4800B-R ECC RDIMM; all DIMM slots populated
Power Supply Quantity and Rating (W):	1 x 1600
Power Supply Details:	CHICONY R18-1K6P1WA REV:01 P/N: 0A100-00250800
Disk Drive:	1 x 512GB Samsung P4X4 M.2 PCIE SSD P/N: 03B03-00378600
Disk Controller:	Integrated PCIe controller
# and type of Network Interface Cards (NICs) Installed:	1 x Quad-port Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected:	1/1/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (See SUT Notes)
Operating System (OS):	SUSE Linux Enterprise Server 15 SP4
OS Version:	5.14.21-150400.22-default
Filesystem:	xfs
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.18+9-LTS-195, mixed mode), version 11.0.18
JVM Command-line Options:	-server -Xmn1825m -Xms1995m -Xmx1995m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:-ThreadLocalHandshakes
JVM Affinity:	for each even physicalCoreId { numactl -C physicalCoreId, physicalCoreId+1, physicalCoreId + 256, physicalCoreId + 257 --membind=0-31}
JVM Instances:	128
JVM Initial Heap (MB):	1995
JVM Maximum Heap (MB):	1995
JVM Address Bits:	64
Boot Firmware Version:	0902
Management Firmware Version:	1.1.37
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	ASUS Control Center V1.4.3.5

Boot Firmware Settings

SVM Mode = Disabled
SR-IOV Support = Disabled
SMEE = Disable
L1 Stream HW Prefetcher = Disable
L1 Region Prefetcher = Disable
L2 Stream HW Prefetcher = Disable
Power Balancer = Enabled by ACC
Policy = Manual
CPU Max frequency = 2500
NUMA nodes per socket = NPS4
DDR Power Down Enable = Enabled
APBDIS = 1
DfPstate = 2
Memory Target Speed = DDR4000
Determinism Control = Manual
Determinism Enable = Power
TDP Control = Manual
TDP =400
PPT Control = Manual
PPT =400
Power Profile Selection = Efficiency Mode
ACPI SRAT L3 Cache As NUMA Domain = Enabled
4-link xGMI max speed = 12Gbps
3-link xGMI max speed = 12Gbps
xGMI Link Configuration = 3 xGMI Links
SATA Enable = Disabled
LAN2 Enable = Disabled
LAN3 Enable = Disabled
LAN4 Enable = Disabled
PCIE Link Speed Capability = Gen1

Management Firmware Settings

None

System Under Test Notes

kernal parameter:pcie_aspm=force pcie_aspm.policy=powersupersave
Benchmark started via ssh
cpupower frequency-set -g ondemand
echo -n 98 > /sys/devices/system/cpu/cpufreq/ondemand/up_threshold
echo -n 1000000 > /sys/devices/system/cpu/cpufreq/ondemand/sampling_rate
echo 0 > /proc/sys/kernel/nmi_watchdog
sysctl -w kernel.sched_migration_cost_ns=6000
sysctl -w kernel.sched_min_granularity_ns=10000000
sysctl -w vm.swappiness=50
N/A:The test sponsor attests, as of date of publication, the CVE-2017-5754(Meltdown) is mitigated in the system as tested and documented.
Yes:The test sponsor attests, as of date of publication, the CVE-2017-5753(Spectre variant 1) is mitigated in the system as tested and documented.
Yes:The test sponsor attests, as of date of publication, the CVE-2017-5715(Spectre variant 2) is mitigated in the system as tested and documented.
The system ROM used for this result contains AMD AGESA version 0xAA00205 for the AMD EPYC 9754 processor

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 512 due to a known inconsistency in processor reporting with this Java version.

Performance Details

Target Load	Actual Load	Transaction Type	Count	Total Heap (MB)
Calibration 1		New Order	14,413,942	1,986
		Payment	14,413,935
		Order Status	1,441,392
		Delivery	1,441,393
		Stock Level	1,441,395
		Customer Report	14,413,934
Calibration 2		New Order	15,608,973	1,986
		Payment	15,608,971
		Order Status	1,560,897
		Delivery	1,560,899
		Stock Level	1,560,898
		Customer Report	15,608,974
Calibration 3		New Order	15,576,947	1,986
		Payment	15,576,946
		Order Status	1,557,696
		Delivery	1,557,696
		Stock Level	1,557,693
		Customer Report	15,576,948
100%	98.3%	New Order	15,329,903	1,986
		Payment	15,329,914
		Order Status	1,532,991
		Delivery	1,532,991
		Stock Level	1,532,994
		Customer Report	15,329,910
90%	89.2%	New Order	13,903,958	1,986
		Payment	13,903,957
		Order Status	1,390,396
		Delivery	1,390,397
		Stock Level	1,390,394
		Customer Report	13,903,958
80%	80.0%	New Order	12,473,269	1,986
		Payment	12,473,272
		Order Status	1,247,328
		Delivery	1,247,328
		Stock Level	1,247,326
		Customer Report	12,473,270
70%	69.5%	New Order	10,837,888	1,986
		Payment	10,837,883
		Order Status	1,083,788
		Delivery	1,083,786
		Stock Level	1,083,788
		Customer Report	10,837,880
60%	59.7%	New Order	9,313,653	1,986
		Payment	9,313,652
		Order Status	931,364
		Delivery	931,363
		Stock Level	931,368
		Customer Report	9,313,652
50%	49.8%	New Order	7,758,454	1,986
		Payment	7,758,455
		Order Status	775,843
		Delivery	775,845
		Stock Level	775,846
		Customer Report	7,758,455
40%	39.7%	New Order	6,190,086	1,986
		Payment	6,190,087
		Order Status	619,009
		Delivery	619,010
		Stock Level	619,008
		Customer Report	6,190,086
30%	30.3%	New Order	4,725,519	1,986
		Payment	4,725,523
		Order Status	472,550
		Delivery	472,551
		Stock Level	472,553
		Customer Report	4,725,520
20%	19.8%	New Order	3,088,208	1,986
		Payment	3,088,204
		Order Status	308,822
		Delivery	308,822
		Stock Level	308,819
		Customer Report	3,088,207
10%	10.1%	New Order	1,568,724	1,986
		Payment	1,568,725
		Order Status	156,874
		Delivery	156,873
		Stock Level	156,874
		Customer Report	1,568,725
Active Idle		New Order	0	1,986
		Payment	0
		Order Status	0
		Delivery	0
		Stock Level	0
		Customer Report	0
