SPECpower_ssj2008 JVM Instance 'localhost.108' Performance Report

SPECpower_ssj2008

JVM Instance 'localhost.108' Performance Report

ASUSTeK Computer Inc. RS720A-E12-RS12			ssj_ops@100% = 211,081
Test Sponsor:	ASUSTeK Computer Inc.	SPEC License #:	9016	Test Method:	Single Node
Tested By:	ASUSTeK Computer Inc.	Test Location:	Taipei, Taiwan.	Test Date:	May 30, 2023
Hardware Availability:	Jun-2023	Software Availability:	Jan-2023	Publication:	Jun 21, 2023
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

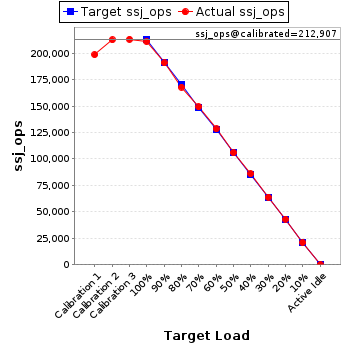

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			198,626
Calibration 2			212,575
Calibration 3			213,239
ssj_ops@calibrated=212,907
100%	99.1%	212,907	211,081
90%	89.6%	191,616	190,825
80%	78.9%	170,325	168,005
70%	70.1%	149,035	149,222
60%	60.3%	127,744	128,392
50%	49.7%	106,453	105,904
40%	40.4%	85,163	85,925
30%	30.0%	63,872	63,892
20%	20.3%	42,581	43,131
10%	9.9%	21,291	21,011
Active Idle		0	0

System Under Test

Set: 'RS720A-E12-RS12'

Set Identifier:	RS720A-E12-RS12
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	'SUT'

Hardware
Hardware Vendor:	ASUSTeK Computer Inc.
Model:	RS720A-E12-RS12
Form Factor:	2U
CPU Name:	AMD EPYC 9754
CPU Characteristics:	128-Core, 2.25GHz, AMD Core Performance Boost up to 3.10GHz, 256MB L3 Cache
CPU Frequency (MHz):	2250
CPU(s) Enabled:	256 cores, 2 chips, 128 cores/chip
Hardware Threads:	512 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16 GB
Memory Details:	24 x 16GB 1Rx8 PC5-4800B-R ECC RDIMM; all DIMM slots populated
Power Supply Quantity and Rating (W):	1 x 1600
Power Supply Details:	CHICONY R18-1K6P1WA REV:01 P/N: 0A100-00250800
Disk Drive:	1 x 512GB Samsung P4X4 M.2 PCIE SSD P/N: 03B03-00378600
Disk Controller:	Integrated PCIe controller
# and type of Network Interface Cards (NICs) Installed:	1 x Quad-port Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected:	1/1/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (See SUT Notes)
Operating System (OS):	SUSE Linux Enterprise Server 15 SP4
OS Version:	5.14.21-150400.22-default
Filesystem:	xfs
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.18+9-LTS-195, mixed mode), version 11.0.18
JVM Command-line Options:	-server -Xmn1825m -Xms1995m -Xmx1995m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:-ThreadLocalHandshakes
JVM Affinity:	for each even physicalCoreId { numactl -C physicalCoreId, physicalCoreId+1, physicalCoreId + 256, physicalCoreId + 257 --membind=0-31}
JVM Instances:	128
JVM Initial Heap (MB):	1995
JVM Maximum Heap (MB):	1995
JVM Address Bits:	64
Boot Firmware Version:	0902
Management Firmware Version:	1.1.37
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	ASUS Control Center V1.4.3.5

Boot Firmware Settings

SVM Mode = Disabled
SR-IOV Support = Disabled
SMEE = Disable
L1 Stream HW Prefetcher = Disable
L1 Region Prefetcher = Disable
L2 Stream HW Prefetcher = Disable
Power Balancer = Enabled by ACC
Policy = Manual
CPU Max frequency = 2500
NUMA nodes per socket = NPS4
DDR Power Down Enable = Enabled
APBDIS = 1
DfPstate = 2
Memory Target Speed = DDR4000
Determinism Control = Manual
Determinism Enable = Power
TDP Control = Manual
TDP =400
PPT Control = Manual
PPT =400
Power Profile Selection = Efficiency Mode
ACPI SRAT L3 Cache As NUMA Domain = Enabled
4-link xGMI max speed = 12Gbps
3-link xGMI max speed = 12Gbps
xGMI Link Configuration = 3 xGMI Links
SATA Enable = Disabled
LAN2 Enable = Disabled
LAN3 Enable = Disabled
LAN4 Enable = Disabled
PCIE Link Speed Capability = Gen1

Management Firmware Settings

None

System Under Test Notes

kernal parameter:pcie_aspm=force pcie_aspm.policy=powersupersave
Benchmark started via ssh
cpupower frequency-set -g ondemand
echo -n 98 > /sys/devices/system/cpu/cpufreq/ondemand/up_threshold
echo -n 1000000 > /sys/devices/system/cpu/cpufreq/ondemand/sampling_rate
echo 0 > /proc/sys/kernel/nmi_watchdog
sysctl -w kernel.sched_migration_cost_ns=6000
sysctl -w kernel.sched_min_granularity_ns=10000000
sysctl -w vm.swappiness=50
N/A:The test sponsor attests, as of date of publication, the CVE-2017-5754(Meltdown) is mitigated in the system as tested and documented.
Yes:The test sponsor attests, as of date of publication, the CVE-2017-5753(Spectre variant 1) is mitigated in the system as tested and documented.
Yes:The test sponsor attests, as of date of publication, the CVE-2017-5715(Spectre variant 2) is mitigated in the system as tested and documented.
The system ROM used for this result contains AMD AGESA version 0xAA00205 for the AMD EPYC 9754 processor

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 512 due to a known inconsistency in processor reporting with this Java version.

Performance Details

Target Load	Actual Load	Transaction Type	Count	Total Heap (MB)
Calibration 1		New Order	14,445,838	1,986
		Payment	14,445,832
		Order Status	1,444,584
		Delivery	1,444,582
		Stock Level	1,444,583
		Customer Report	14,445,832
Calibration 2		New Order	15,460,005	1,986
		Payment	15,460,003
		Order Status	1,546,000
		Delivery	1,545,998
		Stock Level	1,546,003
		Customer Report	15,460,004
Calibration 3		New Order	15,508,277	1,986
		Payment	15,508,278
		Order Status	1,550,825
		Delivery	1,550,827
		Stock Level	1,550,827
		Customer Report	15,508,271
100%	99.1%	New Order	15,351,422	1,986
		Payment	15,351,424
		Order Status	1,535,142
		Delivery	1,535,143
		Stock Level	1,535,144
		Customer Report	15,351,427
90%	89.6%	New Order	13,878,236	1,986
		Payment	13,878,238
		Order Status	1,387,824
		Delivery	1,387,824
		Stock Level	1,387,824
		Customer Report	13,878,238
80%	78.9%	New Order	12,218,557	1,986
		Payment	12,218,553
		Order Status	1,221,855
		Delivery	1,221,856
		Stock Level	1,221,854
		Customer Report	12,218,553
70%	70.1%	New Order	10,853,265	1,986
		Payment	10,853,271
		Order Status	1,085,326
		Delivery	1,085,327
		Stock Level	1,085,328
		Customer Report	10,853,274
60%	60.3%	New Order	9,337,642	1,986
		Payment	9,337,639
		Order Status	933,766
		Delivery	933,765
		Stock Level	933,765
		Customer Report	9,337,643
50%	49.7%	New Order	7,702,087	1,986
		Payment	7,702,083
		Order Status	770,212
		Delivery	770,209
		Stock Level	770,210
		Customer Report	7,702,087
40%	40.4%	New Order	6,249,501	1,986
		Payment	6,249,497
		Order Status	624,951
		Delivery	624,949
		Stock Level	624,950
		Customer Report	6,249,508
30%	30.0%	New Order	4,646,661	1,986
		Payment	4,646,660
		Order Status	464,668
		Delivery	464,668
		Stock Level	464,667
		Customer Report	4,646,661
20%	20.3%	New Order	3,136,772	1,986
		Payment	3,136,767
		Order Status	313,677
		Delivery	313,676
		Stock Level	313,678
		Customer Report	3,136,771
10%	9.9%	New Order	1,528,040	1,986
		Payment	1,528,042
		Order Status	152,804
		Delivery	152,806
		Stock Level	152,804
		Customer Report	1,528,036
Active Idle		New Order	0	1,986
		Payment	0
		Order Status	0
		Delivery	0
		Stock Level	0
		Customer Report	0
