Lenovo Global Technology Think System SR645 V3 ssj_ops@100% = 184,448
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 23, 2023
Hardware Availability: Aug-2023 Software Availability: Jun-2022 Publication: Jul 7, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     188,760
Calibration 2     186,455
Calibration 3     185,880
ssj_ops@calibrated=186,167
100% 99.1% 186,167 184,448
90% 89.8% 167,550 167,092
80% 79.8% 148,934 148,500
70% 69.3% 130,317 128,954
60% 60.1% 111,700 111,803
50% 49.9% 93,084 92,805
40% 39.8% 74,467 74,122
30% 30.0% 55,850 55,836
20% 20.0% 37,233 37,269
10% 10.1% 18,617 18,745
Active Idle   0 0

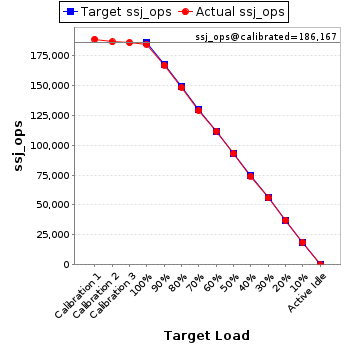

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Think System SR645 V3
Form Factor: 1U
CPU Name: AMD EPYC 9754 2.25GHz
CPU Characteristics: 128-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 256 cores, 2 chips, 128 cores/chip
Hardware Threads: 512 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16384 MB
Memory Details: 24 x 16GB 1Rx8 PC5-4800B-RD0; slots 1 to 24 populated
Power Supply Quantity and Rating (W): 1 x 1100
Power Supply Details: Lenovo P/N:4P57A72666
Disk Drive: 1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4Y37A09738
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08295
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP4
OS Version: 5.14.21-150400.22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:LargePageSizeInBytes=2m
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 256, physicalCoreId + 257 }
JVM Instances: 128
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: KAE111F
Management Firmware Version: KAX317D
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 13,729,874 2,038
Payment 13,729,884
Order Status 1,372,987
Delivery 1,372,988
Stock Level 1,372,988
Customer Report 13,729,877
Calibration 2 New Order 13,560,361 2,038
Payment 13,560,349
Order Status 1,356,036
Delivery 1,356,034
Stock Level 1,356,034
Customer Report 13,560,356
Calibration 3 New Order 13,518,897 2,038
Payment 13,518,887
Order Status 1,351,889
Delivery 1,351,886
Stock Level 1,351,889
Customer Report 13,518,891
100% 99.1% New Order 13,414,395 2,038
Payment 13,414,399
Order Status 1,341,440
Delivery 1,341,440
Stock Level 1,341,439
Customer Report 13,414,395
90% 89.8% New Order 12,152,232 2,038
Payment 12,152,231
Order Status 1,215,224
Delivery 1,215,224
Stock Level 1,215,223
Customer Report 12,152,234
80% 79.8% New Order 10,800,042 2,038
Payment 10,800,045
Order Status 1,080,004
Delivery 1,080,003
Stock Level 1,080,003
Customer Report 10,800,050
70% 69.3% New Order 9,378,851 2,038
Payment 9,378,851
Order Status 937,886
Delivery 937,886
Stock Level 937,884
Customer Report 9,378,856
60% 60.1% New Order 8,131,125 2,038
Payment 8,131,126
Order Status 813,112
Delivery 813,112
Stock Level 813,113
Customer Report 8,131,131
50% 49.9% New Order 6,749,482 2,038
Payment 6,749,476
Order Status 674,948
Delivery 674,948
Stock Level 674,948
Customer Report 6,749,481
40% 39.8% New Order 5,390,678 2,038
Payment 5,390,680
Order Status 539,069
Delivery 539,067
Stock Level 539,066
Customer Report 5,390,688
30% 30.0% New Order 4,060,780 2,038
Payment 4,060,773
Order Status 406,077
Delivery 406,077
Stock Level 406,077
Customer Report 4,060,775
20% 20.0% New Order 2,710,460 2,038
Payment 2,710,453
Order Status 271,045
Delivery 271,048
Stock Level 271,044
Customer Report 2,710,458
10% 10.1% New Order 1,363,268 2,038
Payment 1,363,271
Order Status 136,326
Delivery 136,329
Stock Level 136,326
Customer Report 1,363,271
Active Idle New Order 0 2,038
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
