Lenovo Global Technology Think System SR645 V3 ssj_ops@100% = 186,827
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 23, 2023
Hardware Availability: Aug-2023 Software Availability: Jun-2022 Publication: Jul 7, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     189,151
Calibration 2     188,545
Calibration 3     188,351
ssj_ops@calibrated=188,448
100% 99.1% 188,448 186,827
90% 89.3% 169,603 168,284
80% 79.7% 150,758 150,201
70% 69.9% 131,914 131,804
60% 59.2% 113,069 111,587
50% 49.6% 94,224 93,554
40% 39.4% 75,379 74,266
30% 29.9% 56,534 56,431
20% 20.2% 37,690 38,085
10% 9.7% 18,845 18,194
Active Idle   0 0

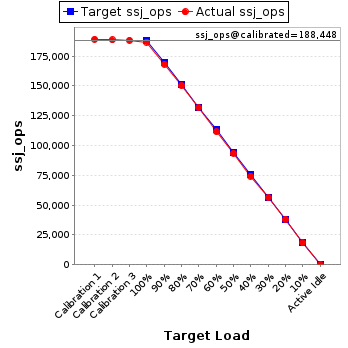

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Think System SR645 V3
Form Factor: 1U
CPU Name: AMD EPYC 9754 2.25GHz
CPU Characteristics: 128-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 256 cores, 2 chips, 128 cores/chip
Hardware Threads: 512 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16384 MB
Memory Details: 24 x 16GB 1Rx8 PC5-4800B-RD0; slots 1 to 24 populated
Power Supply Quantity and Rating (W): 1 x 1100
Power Supply Details: Lenovo P/N:4P57A72666
Disk Drive: 1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4Y37A09738
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08295
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP4
OS Version: 5.14.21-150400.22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:LargePageSizeInBytes=2m
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 256, physicalCoreId + 257 }
JVM Instances: 128
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: KAE111F
Management Firmware Version: KAX317D
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 13,758,399 2,038
Payment 13,758,401
Order Status 1,375,841
Delivery 1,375,841
Stock Level 1,375,841
Customer Report 13,758,398
Calibration 2 New Order 13,712,370 2,038
Payment 13,712,374
Order Status 1,371,236
Delivery 1,371,237
Stock Level 1,371,238
Customer Report 13,712,374
Calibration 3 New Order 13,698,274 2,038
Payment 13,698,276
Order Status 1,369,829
Delivery 1,369,828
Stock Level 1,369,827
Customer Report 13,698,277
100% 99.1% New Order 13,587,397 2,038
Payment 13,587,395
Order Status 1,358,739
Delivery 1,358,742
Stock Level 1,358,742
Customer Report 13,587,396
90% 89.3% New Order 12,239,055 2,038
Payment 12,239,056
Order Status 1,223,904
Delivery 1,223,906
Stock Level 1,223,906
Customer Report 12,239,050
80% 79.7% New Order 10,924,275 2,038
Payment 10,924,272
Order Status 1,092,428
Delivery 1,092,425
Stock Level 1,092,427
Customer Report 10,924,278
70% 69.9% New Order 9,585,760 2,038
Payment 9,585,770
Order Status 958,574
Delivery 958,576
Stock Level 958,577
Customer Report 9,585,761
60% 59.2% New Order 8,115,859 2,038
Payment 8,115,854
Order Status 811,585
Delivery 811,585
Stock Level 811,584
Customer Report 8,115,866
50% 49.6% New Order 6,803,962 2,038
Payment 6,803,962
Order Status 680,396
Delivery 680,396
Stock Level 680,395
Customer Report 6,803,959
40% 39.4% New Order 5,401,217 2,038
Payment 5,401,211
Order Status 540,120
Delivery 540,119
Stock Level 540,119
Customer Report 5,401,221
30% 29.9% New Order 4,104,074 2,038
Payment 4,104,084
Order Status 410,406
Delivery 410,410
Stock Level 410,410
Customer Report 4,104,082
20% 20.2% New Order 2,769,801 2,038
Payment 2,769,796
Order Status 276,980
Delivery 276,981
Stock Level 276,979
Customer Report 2,769,799
10% 9.7% New Order 1,323,180 2,038
Payment 1,323,184
Order Status 132,317
Delivery 132,319
Stock Level 132,317
Customer Report 1,323,173
Active Idle New Order 0 2,038
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
