Lenovo Global Technology Think System SR645 V3 ssj_ops@100% = 179,979
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 23, 2023
Hardware Availability: Aug-2023 Software Availability: Jun-2022 Publication: Jul 7, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     182,155
Calibration 2     181,854
Calibration 3     181,195
ssj_ops@calibrated=181,525
100% 99.1% 181,525 179,979
90% 89.8% 163,372 163,069
80% 79.9% 145,220 144,970
70% 70.3% 127,067 127,623
60% 59.6% 108,915 108,121
50% 49.6% 90,762 90,012
40% 40.4% 72,610 73,328
30% 29.9% 54,457 54,299
20% 19.9% 36,305 36,079
10% 10.0% 18,152 18,066
Active Idle   0 0

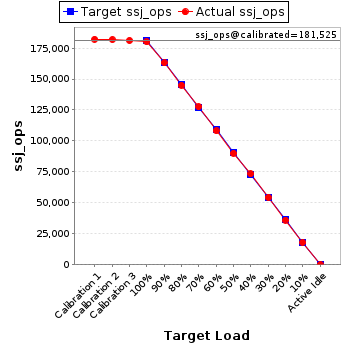

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Think System SR645 V3
Form Factor: 1U
CPU Name: AMD EPYC 9754 2.25GHz
CPU Characteristics: 128-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 256 cores, 2 chips, 128 cores/chip
Hardware Threads: 512 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16384 MB
Memory Details: 24 x 16GB 1Rx8 PC5-4800B-RD0; slots 1 to 24 populated
Power Supply Quantity and Rating (W): 1 x 1100
Power Supply Details: Lenovo P/N:4P57A72666
Disk Drive: 1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4Y37A09738
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08295
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP4
OS Version: 5.14.21-150400.22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:LargePageSizeInBytes=2m
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 256, physicalCoreId + 257 }
JVM Instances: 128
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: KAE111F
Management Firmware Version: KAX317D
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 13,248,858 2,038
Payment 13,248,861
Order Status 1,324,888
Delivery 1,324,884
Stock Level 1,324,886
Customer Report 13,248,865
Calibration 2 New Order 13,225,800 2,038
Payment 13,225,796
Order Status 1,322,581
Delivery 1,322,579
Stock Level 1,322,580
Customer Report 13,225,796
Calibration 3 New Order 13,177,818 2,038
Payment 13,177,823
Order Status 1,317,779
Delivery 1,317,780
Stock Level 1,317,782
Customer Report 13,177,823
100% 99.1% New Order 13,089,412 2,038
Payment 13,089,411
Order Status 1,308,940
Delivery 1,308,942
Stock Level 1,308,942
Customer Report 13,089,408
90% 89.8% New Order 11,859,653 2,038
Payment 11,859,643
Order Status 1,185,962
Delivery 1,185,965
Stock Level 1,185,966
Customer Report 11,859,644
80% 79.9% New Order 10,543,994 2,038
Payment 10,543,998
Order Status 1,054,400
Delivery 1,054,400
Stock Level 1,054,401
Customer Report 10,544,004
70% 70.3% New Order 9,281,654 2,038
Payment 9,281,647
Order Status 928,164
Delivery 928,164
Stock Level 928,167
Customer Report 9,281,647
60% 59.6% New Order 7,863,356 2,038
Payment 7,863,361
Order Status 786,334
Delivery 786,335
Stock Level 786,335
Customer Report 7,863,357
50% 49.6% New Order 6,546,344 2,038
Payment 6,546,344
Order Status 654,633
Delivery 654,636
Stock Level 654,633
Customer Report 6,546,341
40% 40.4% New Order 5,332,968 2,038
Payment 5,332,964
Order Status 533,296
Delivery 533,294
Stock Level 533,298
Customer Report 5,332,961
30% 29.9% New Order 3,949,014 2,038
Payment 3,949,015
Order Status 394,902
Delivery 394,900
Stock Level 394,901
Customer Report 3,949,014
20% 19.9% New Order 2,623,942 2,038
Payment 2,623,937
Order Status 262,394
Delivery 262,394
Stock Level 262,396
Customer Report 2,623,937
10% 10.0% New Order 1,313,888 2,038
Payment 1,313,886
Order Status 131,389
Delivery 131,389
Stock Level 131,389
Customer Report 1,313,888
Active Idle New Order 0 2,038
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
