xFusion Digital Technologies Co., Ltd FusionServer 2288H V7 ssj_ops@100% = 125,892
Test Sponsor: xFusion Digital Technologies Co., Ltd SPEC License #: 6488 Test Method: Single Node
Tested By: xFusion Digital Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Aug 3, 2023
Hardware Availability: Jan-2023 Software Availability: Aug-2022 Publication: Aug 30, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     127,035
Calibration 2     125,798
Calibration 3     125,937
ssj_ops@calibrated=125,868
100% 100.0% 125,868 125,892
90% 90.0% 113,281 113,298
80% 80.2% 100,694 100,883
70% 69.2% 88,107 87,119
60% 59.7% 75,521 75,189
50% 50.2% 62,934 63,209
40% 40.0% 50,347 50,306
30% 30.2% 37,760 37,955
20% 20.0% 25,174 25,165
10% 10.0% 12,587 12,565
Active Idle   0 0

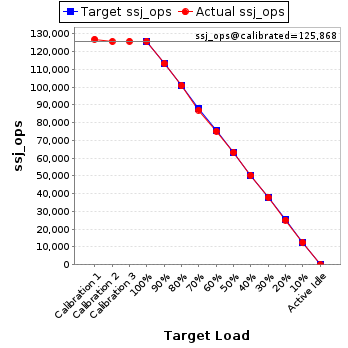

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Here is a comment for this set.
Hardware
Hardware Vendor: xFusion Digital Technologies Co., Ltd
Model: FusionServer 2288H V7
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8490H
CPU Characteristics: 60-Core, 1.9GHz, Intel Turbo Boost Technology up to 3.5GHz, 112.5MB L3 Cache
CPU Frequency (MHz): 1900
CPU(s) Enabled: 120 cores, 2 chips, 60 cores/chip
Hardware Threads: 240 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
Tertiary Cache: 115200 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 512
# and size of DIMM: 16 x 32 GB
Memory Details: 32GB 2Rx8 PC5-4800B-RE0-1010-NT; slot DIMM000, DIMM010, DIMM020, DIMM030, DIMM040, DIMM050, DIMM060, DIMM070, DIMM100, DIMM110, DIMM120, DIMM130, DIMM140, DIMM150, DIMM160, DIMM170 populated
Power Supply Quantity and Rating (W): 1 x 1500
Power Supply Details: xFusion PAC1500S12-B1
Disk Drive: 1 x 960GB SSD 2.5" SATA
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode enabled in OS
Operating System (OS): Microsoft Windows Server 2022 Datacenter
OS Version: 21H2(OS Build 20348.169)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.18+9-LTS-195, mixed mode)
JVM Command-line Options: -server -Xmn1825m -Xms1995m -Xmx1995m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: start /NODE[0-7] /AFFINITY [0x3, 0xC, 0x30, 0xC0, 0x300, 0xC00, 0x3000, 0xC000, 0x30000, 0xC0000, 0x300000, 0xC00000, 0x3000000, 0xC000000, 0x30000000]
JVM Instances: 120
JVM Initial Heap (MB): 1995
JVM Maximum Heap (MB): 1995
JVM Address Bits: 64
Boot Firmware Version: 2.00.61
Management Firmware Version: 3.07.00.11
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: none
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 9,256,915 1,388
Payment 9,256,914
Order Status 925,692
Delivery 925,692
Stock Level 925,692
Customer Report 9,256,909
Calibration 2 New Order 9,149,569 1,388
Payment 9,149,571
Order Status 914,957
Delivery 914,957
Stock Level 914,957
Customer Report 9,149,573
Calibration 3 New Order 9,160,023 1,388
Payment 9,160,025
Order Status 916,002
Delivery 916,002
Stock Level 916,001
Customer Report 9,160,020
100% 100.0% New Order 9,157,559 1,388
Payment 9,157,555
Order Status 915,757
Delivery 915,757
Stock Level 915,755
Customer Report 9,157,560
90% 90.0% New Order 8,240,359 1,388
Payment 8,240,364
Order Status 824,035
Delivery 824,036
Stock Level 824,036
Customer Report 8,240,354
80% 80.2% New Order 7,337,422 1,388
Payment 7,337,429
Order Status 733,742
Delivery 733,744
Stock Level 733,744
Customer Report 7,337,428
70% 69.2% New Order 6,337,861 1,388
Payment 6,337,867
Order Status 633,786
Delivery 633,787
Stock Level 633,786
Customer Report 6,337,863
60% 59.7% New Order 5,468,803 1,388
Payment 5,468,808
Order Status 546,879
Delivery 546,881
Stock Level 546,880
Customer Report 5,468,802
50% 50.2% New Order 4,597,533 1,388
Payment 4,597,534
Order Status 459,754
Delivery 459,753
Stock Level 459,754
Customer Report 4,597,537
40% 40.0% New Order 3,658,767 1,388
Payment 3,658,762
Order Status 365,879
Delivery 365,877
Stock Level 365,876
Customer Report 3,658,769
30% 30.2% New Order 2,760,560 1,388
Payment 2,760,556
Order Status 276,057
Delivery 276,055
Stock Level 276,056
Customer Report 2,760,555
20% 20.0% New Order 1,830,270 1,388
Payment 1,830,266
Order Status 183,026
Delivery 183,027
Stock Level 183,027
Customer Report 1,830,272
10% 10.0% New Order 913,866 1,388
Payment 913,865
Order Status 91,388
Delivery 91,385
Stock Level 91,388
Customer Report 913,870
Active Idle New Order 0 1,388
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
