xFusion Digital Technologies Co., Ltd FusionServer 2288H V7 ssj_ops@100% = 123,764
Test Sponsor: xFusion Digital Technologies Co., Ltd SPEC License #: 6488 Test Method: Single Node
Tested By: xFusion Digital Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Aug 3, 2023
Hardware Availability: Jan-2023 Software Availability: Aug-2022 Publication: Aug 30, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,151
Calibration 2     123,756
Calibration 3     123,952
ssj_ops@calibrated=123,854
100% 99.9% 123,854 123,764
90% 90.2% 111,468 111,709
80% 80.7% 99,083 99,948
70% 70.4% 86,698 87,238
60% 59.6% 74,312 73,825
50% 49.3% 61,927 61,041
40% 40.2% 49,541 49,790
30% 29.7% 37,156 36,794
20% 20.5% 24,771 25,432
10% 10.3% 12,385 12,746
Active Idle   0 0

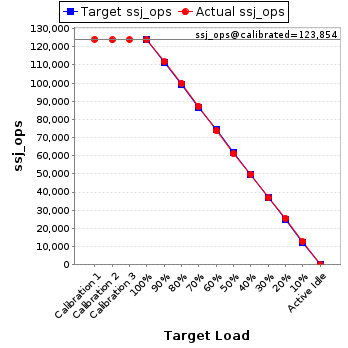

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Here is a comment for this set.
Hardware
Hardware Vendor: xFusion Digital Technologies Co., Ltd
Model: FusionServer 2288H V7
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8490H
CPU Characteristics: 60-Core, 1.9GHz, Intel Turbo Boost Technology up to 3.5GHz, 112.5MB L3 Cache
CPU Frequency (MHz): 1900
CPU(s) Enabled: 120 cores, 2 chips, 60 cores/chip
Hardware Threads: 240 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
Tertiary Cache: 115200 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 512
# and size of DIMM: 16 x 32 GB
Memory Details: 32GB 2Rx8 PC5-4800B-RE0-1010-NT; slot DIMM000, DIMM010, DIMM020, DIMM030, DIMM040, DIMM050, DIMM060, DIMM070, DIMM100, DIMM110, DIMM120, DIMM130, DIMM140, DIMM150, DIMM160, DIMM170 populated
Power Supply Quantity and Rating (W): 1 x 1500
Power Supply Details: xFusion PAC1500S12-B1
Disk Drive: 1 x 960GB SSD 2.5" SATA
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode enabled in OS
Operating System (OS): Microsoft Windows Server 2022 Datacenter
OS Version: 21H2(OS Build 20348.169)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.18+9-LTS-195, mixed mode)
JVM Command-line Options: -server -Xmn1825m -Xms1995m -Xmx1995m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: start /NODE[0-7] /AFFINITY [0x3, 0xC, 0x30, 0xC0, 0x300, 0xC00, 0x3000, 0xC000, 0x30000, 0xC0000, 0x300000, 0xC00000, 0x3000000, 0xC000000, 0x30000000]
JVM Instances: 120
JVM Initial Heap (MB): 1995
JVM Maximum Heap (MB): 1995
JVM Address Bits: 64
Boot Firmware Version: 2.00.61
Management Firmware Version: 3.07.00.11
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: none
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 9,044,428 1,388
Payment 9,044,420
Order Status 904,442
Delivery 904,442
Stock Level 904,443
Customer Report 9,044,427
Calibration 2 New Order 9,000,998 1,388
Payment 9,000,997
Order Status 900,100
Delivery 900,100
Stock Level 900,100
Customer Report 9,000,997
Calibration 3 New Order 9,015,751 1,388
Payment 9,015,749
Order Status 901,575
Delivery 901,575
Stock Level 901,575
Customer Report 9,015,749
100% 99.9% New Order 9,002,192 1,388
Payment 9,002,191
Order Status 900,219
Delivery 900,220
Stock Level 900,218
Customer Report 9,002,195
90% 90.2% New Order 8,124,808 1,388
Payment 8,124,807
Order Status 812,480
Delivery 812,479
Stock Level 812,481
Customer Report 8,124,804
80% 80.7% New Order 7,268,982 1,388
Payment 7,268,976
Order Status 726,897
Delivery 726,899
Stock Level 726,899
Customer Report 7,268,977
70% 70.4% New Order 6,344,915 1,388
Payment 6,344,914
Order Status 634,492
Delivery 634,491
Stock Level 634,490
Customer Report 6,344,914
60% 59.6% New Order 5,369,213 1,388
Payment 5,369,211
Order Status 536,921
Delivery 536,921
Stock Level 536,922
Customer Report 5,369,218
50% 49.3% New Order 4,439,443 1,388
Payment 4,439,438
Order Status 443,945
Delivery 443,944
Stock Level 443,946
Customer Report 4,439,447
40% 40.2% New Order 3,621,155 1,388
Payment 3,621,150
Order Status 362,115
Delivery 362,114
Stock Level 362,115
Customer Report 3,621,156
30% 29.7% New Order 2,676,470 1,388
Payment 2,676,476
Order Status 267,647
Delivery 267,647
Stock Level 267,648
Customer Report 2,676,472
20% 20.5% New Order 1,849,697 1,388
Payment 1,849,697
Order Status 184,970
Delivery 184,970
Stock Level 184,970
Customer Report 1,849,696
10% 10.3% New Order 927,055 1,388
Payment 927,050
Order Status 92,707
Delivery 92,705
Stock Level 92,705
Customer Report 927,056
Active Idle New Order 0 1,388
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
