xFusion Digital Technologies Co., Ltd FusionServer 2288H V7 ssj_ops@100% = 123,161
Test Sponsor: xFusion Digital Technologies Co., Ltd SPEC License #: 6488 Test Method: Single Node
Tested By: xFusion Digital Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Aug 3, 2023
Hardware Availability: Jan-2023 Software Availability: Aug-2022 Publication: Aug 30, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     123,072
Calibration 2     123,065
Calibration 3     123,147
ssj_ops@calibrated=123,106
100% 100.0% 123,106 123,161
90% 90.3% 110,796 111,112
80% 80.0% 98,485 98,536
70% 70.4% 86,174 86,659
60% 59.5% 73,864 73,199
50% 50.1% 61,553 61,730
40% 39.6% 49,243 48,764
30% 30.5% 36,932 37,552
20% 19.8% 24,621 24,402
10% 10.1% 12,311 12,396
Active Idle   0 0

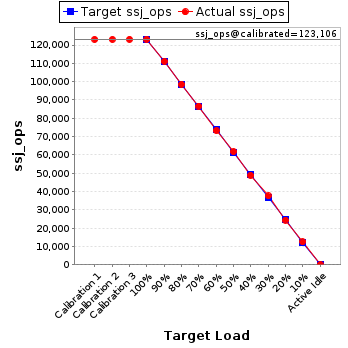

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Here is a comment for this set.
Hardware
Hardware Vendor: xFusion Digital Technologies Co., Ltd
Model: FusionServer 2288H V7
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8490H
CPU Characteristics: 60-Core, 1.9GHz, Intel Turbo Boost Technology up to 3.5GHz, 112.5MB L3 Cache
CPU Frequency (MHz): 1900
CPU(s) Enabled: 120 cores, 2 chips, 60 cores/chip
Hardware Threads: 240 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
Tertiary Cache: 115200 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 512
# and size of DIMM: 16 x 32 GB
Memory Details: 32GB 2Rx8 PC5-4800B-RE0-1010-NT; slot DIMM000, DIMM010, DIMM020, DIMM030, DIMM040, DIMM050, DIMM060, DIMM070, DIMM100, DIMM110, DIMM120, DIMM130, DIMM140, DIMM150, DIMM160, DIMM170 populated
Power Supply Quantity and Rating (W): 1 x 1500
Power Supply Details: xFusion PAC1500S12-B1
Disk Drive: 1 x 960GB SSD 2.5" SATA
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode enabled in OS
Operating System (OS): Microsoft Windows Server 2022 Datacenter
OS Version: 21H2(OS Build 20348.169)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.18+9-LTS-195, mixed mode)
JVM Command-line Options: -server -Xmn1825m -Xms1995m -Xmx1995m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: start /NODE[0-7] /AFFINITY [0x3, 0xC, 0x30, 0xC0, 0x300, 0xC00, 0x3000, 0xC000, 0x30000, 0xC0000, 0x300000, 0xC00000, 0x3000000, 0xC000000, 0x30000000]
JVM Instances: 120
JVM Initial Heap (MB): 1995
JVM Maximum Heap (MB): 1995
JVM Address Bits: 64
Boot Firmware Version: 2.00.61
Management Firmware Version: 3.07.00.11
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: none
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 8,961,968 1,388
Payment 8,961,966
Order Status 896,196
Delivery 896,197
Stock Level 896,196
Customer Report 8,961,964
Calibration 2 New Order 8,951,954 1,388
Payment 8,951,956
Order Status 895,196
Delivery 895,196
Stock Level 895,194
Customer Report 8,951,948
Calibration 3 New Order 8,957,324 1,388
Payment 8,957,323
Order Status 895,732
Delivery 895,733
Stock Level 895,734
Customer Report 8,957,324
100% 100.0% New Order 8,957,711 1,388
Payment 8,957,713
Order Status 895,771
Delivery 895,772
Stock Level 895,771
Customer Report 8,957,707
90% 90.3% New Order 8,081,954 1,388
Payment 8,081,957
Order Status 808,196
Delivery 808,197
Stock Level 808,195
Customer Report 8,081,951
80% 80.0% New Order 7,167,204 1,388
Payment 7,167,204
Order Status 716,720
Delivery 716,721
Stock Level 716,719
Customer Report 7,167,199
70% 70.4% New Order 6,302,911 1,388
Payment 6,302,911
Order Status 630,291
Delivery 630,291
Stock Level 630,290
Customer Report 6,302,910
60% 59.5% New Order 5,323,669 1,388
Payment 5,323,669
Order Status 532,368
Delivery 532,367
Stock Level 532,369
Customer Report 5,323,668
50% 50.1% New Order 4,489,649 1,388
Payment 4,489,645
Order Status 448,966
Delivery 448,964
Stock Level 448,965
Customer Report 4,489,651
40% 39.6% New Order 3,546,502 1,388
Payment 3,546,496
Order Status 354,650
Delivery 354,650
Stock Level 354,650
Customer Report 3,546,497
30% 30.5% New Order 2,731,047 1,388
Payment 2,731,048
Order Status 273,106
Delivery 273,106
Stock Level 273,104
Customer Report 2,731,046
20% 19.8% New Order 1,774,722 1,388
Payment 1,774,729
Order Status 177,473
Delivery 177,472
Stock Level 177,472
Customer Report 1,774,724
10% 10.1% New Order 901,520 1,388
Payment 901,520
Order Status 90,152
Delivery 90,151
Stock Level 90,151
Customer Report 901,518
Active Idle New Order 0 1,388
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
