xFusion Digital Technologies Co., Ltd FusionServer 2288H V7 ssj_ops@100% = 122,583
Test Sponsor: xFusion Digital Technologies Co., Ltd SPEC License #: 6488 Test Method: Single Node
Tested By: xFusion Digital Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Aug 3, 2023
Hardware Availability: Jan-2023 Software Availability: Aug-2022 Publication: Aug 30, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     123,427
Calibration 2     122,466
Calibration 3     122,730
ssj_ops@calibrated=122,598
100% 100.0% 122,598 122,583
90% 89.7% 110,338 109,919
80% 79.9% 98,078 97,898
70% 69.5% 85,819 85,229
60% 59.6% 73,559 73,088
50% 49.9% 61,299 61,174
40% 39.7% 49,039 48,671
30% 30.2% 36,779 37,065
20% 19.4% 24,520 23,799
10% 9.6% 12,260 11,770
Active Idle   0 0

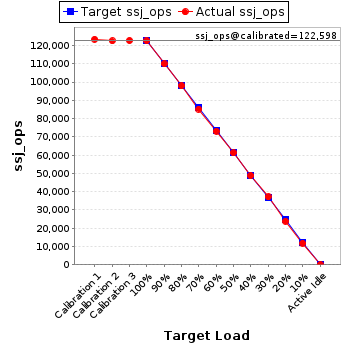

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Here is a comment for this set.
Hardware
Hardware Vendor: xFusion Digital Technologies Co., Ltd
Model: FusionServer 2288H V7
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8490H
CPU Characteristics: 60-Core, 1.9GHz, Intel Turbo Boost Technology up to 3.5GHz, 112.5MB L3 Cache
CPU Frequency (MHz): 1900
CPU(s) Enabled: 120 cores, 2 chips, 60 cores/chip
Hardware Threads: 240 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
Tertiary Cache: 115200 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 512
# and size of DIMM: 16 x 32 GB
Memory Details: 32GB 2Rx8 PC5-4800B-RE0-1010-NT; slot DIMM000, DIMM010, DIMM020, DIMM030, DIMM040, DIMM050, DIMM060, DIMM070, DIMM100, DIMM110, DIMM120, DIMM130, DIMM140, DIMM150, DIMM160, DIMM170 populated
Power Supply Quantity and Rating (W): 1 x 1500
Power Supply Details: xFusion PAC1500S12-B1
Disk Drive: 1 x 960GB SSD 2.5" SATA
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode enabled in OS
Operating System (OS): Microsoft Windows Server 2022 Datacenter
OS Version: 21H2(OS Build 20348.169)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.18+9-LTS-195, mixed mode)
JVM Command-line Options: -server -Xmn1825m -Xms1995m -Xmx1995m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: start /NODE[0-7] /AFFINITY [0x3, 0xC, 0x30, 0xC0, 0x300, 0xC00, 0x3000, 0xC000, 0x30000, 0xC0000, 0x300000, 0xC00000, 0x3000000, 0xC000000, 0x30000000]
JVM Instances: 120
JVM Initial Heap (MB): 1995
JVM Maximum Heap (MB): 1995
JVM Address Bits: 64
Boot Firmware Version: 2.00.61
Management Firmware Version: 3.07.00.11
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: none
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 8,989,961 1,388
Payment 8,989,962
Order Status 898,996
Delivery 898,996
Stock Level 898,996
Customer Report 8,989,960
Calibration 2 New Order 8,908,351 1,388
Payment 8,908,351
Order Status 890,836
Delivery 890,835
Stock Level 890,835
Customer Report 8,908,350
Calibration 3 New Order 8,926,971 1,388
Payment 8,926,972
Order Status 892,698
Delivery 892,698
Stock Level 892,697
Customer Report 8,926,967
100% 100.0% New Order 8,915,716 1,388
Payment 8,915,715
Order Status 891,573
Delivery 891,573
Stock Level 891,571
Customer Report 8,915,716
90% 89.7% New Order 7,994,660 1,388
Payment 7,994,662
Order Status 799,466
Delivery 799,466
Stock Level 799,466
Customer Report 7,994,665
80% 79.9% New Order 7,121,230 1,388
Payment 7,121,238
Order Status 712,124
Delivery 712,123
Stock Level 712,124
Customer Report 7,121,234
70% 69.5% New Order 6,199,262 1,388
Payment 6,199,260
Order Status 619,926
Delivery 619,927
Stock Level 619,926
Customer Report 6,199,268
60% 59.6% New Order 5,316,137 1,388
Payment 5,316,138
Order Status 531,614
Delivery 531,613
Stock Level 531,614
Customer Report 5,316,135
50% 49.9% New Order 4,449,129 1,388
Payment 4,449,131
Order Status 444,913
Delivery 444,912
Stock Level 444,912
Customer Report 4,449,122
40% 39.7% New Order 3,539,740 1,388
Payment 3,539,734
Order Status 353,974
Delivery 353,975
Stock Level 353,974
Customer Report 3,539,736
30% 30.2% New Order 2,695,761 1,388
Payment 2,695,755
Order Status 269,575
Delivery 269,577
Stock Level 269,576
Customer Report 2,695,756
20% 19.4% New Order 1,730,905 1,388
Payment 1,730,913
Order Status 173,091
Delivery 173,091
Stock Level 173,091
Customer Report 1,730,909
10% 9.6% New Order 856,064 1,388
Payment 856,060
Order Status 85,606
Delivery 85,607
Stock Level 85,605
Customer Report 856,058
Active Idle New Order 0 1,388
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
