xFusion Digital Technologies Co., Ltd FusionServer 2288H V7 ssj_ops@100% = 122,356
Test Sponsor: xFusion Digital Technologies Co., Ltd SPEC License #: 6488 Test Method: Single Node
Tested By: xFusion Digital Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Aug 3, 2023
Hardware Availability: Jan-2023 Software Availability: Aug-2022 Publication: Aug 30, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     122,401
Calibration 2     122,019
Calibration 3     122,125
ssj_ops@calibrated=122,072
100% 100.2% 122,072 122,356
90% 91.6% 109,865 111,762
80% 80.3% 97,658 98,035
70% 71.0% 85,451 86,653
60% 60.1% 73,243 73,418
50% 50.0% 61,036 60,998
40% 39.4% 48,829 48,090
30% 30.7% 36,622 37,477
20% 20.5% 24,414 25,021
10% 9.8% 12,207 11,978
Active Idle   0 0

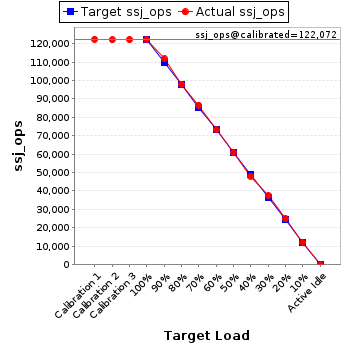

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Here is a comment for this set.
Hardware
Hardware Vendor: xFusion Digital Technologies Co., Ltd
Model: FusionServer 2288H V7
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8490H
CPU Characteristics: 60-Core, 1.9GHz, Intel Turbo Boost Technology up to 3.5GHz, 112.5MB L3 Cache
CPU Frequency (MHz): 1900
CPU(s) Enabled: 120 cores, 2 chips, 60 cores/chip
Hardware Threads: 240 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
Tertiary Cache: 115200 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 512
# and size of DIMM: 16 x 32 GB
Memory Details: 32GB 2Rx8 PC5-4800B-RE0-1010-NT; slot DIMM000, DIMM010, DIMM020, DIMM030, DIMM040, DIMM050, DIMM060, DIMM070, DIMM100, DIMM110, DIMM120, DIMM130, DIMM140, DIMM150, DIMM160, DIMM170 populated
Power Supply Quantity and Rating (W): 1 x 1500
Power Supply Details: xFusion PAC1500S12-B1
Disk Drive: 1 x 960GB SSD 2.5" SATA
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode enabled in OS
Operating System (OS): Microsoft Windows Server 2022 Datacenter
OS Version: 21H2(OS Build 20348.169)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.18+9-LTS-195, mixed mode)
JVM Command-line Options: -server -Xmn1825m -Xms1995m -Xmx1995m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: start /NODE[0-7] /AFFINITY [0x3, 0xC, 0x30, 0xC0, 0x300, 0xC00, 0x3000, 0xC000, 0x30000, 0xC0000, 0x300000, 0xC00000, 0x3000000, 0xC000000, 0x30000000]
JVM Instances: 120
JVM Initial Heap (MB): 1995
JVM Maximum Heap (MB): 1995
JVM Address Bits: 64
Boot Firmware Version: 2.00.61
Management Firmware Version: 3.07.00.11
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: none
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 8,919,280 1,388
Payment 8,919,286
Order Status 891,928
Delivery 891,927
Stock Level 891,928
Customer Report 8,919,277
Calibration 2 New Order 8,875,768 1,388
Payment 8,875,768
Order Status 887,576
Delivery 887,577
Stock Level 887,579
Customer Report 8,875,772
Calibration 3 New Order 8,883,591 1,388
Payment 8,883,588
Order Status 888,359
Delivery 888,358
Stock Level 888,360
Customer Report 8,883,588
100% 100.2% New Order 8,899,221 1,388
Payment 8,899,219
Order Status 889,921
Delivery 889,922
Stock Level 889,922
Customer Report 8,899,219
90% 91.6% New Order 8,129,391 1,388
Payment 8,129,391
Order Status 812,940
Delivery 812,940
Stock Level 812,939
Customer Report 8,129,389
80% 80.3% New Order 7,130,746 1,388
Payment 7,130,744
Order Status 713,074
Delivery 713,074
Stock Level 713,075
Customer Report 7,130,739
70% 71.0% New Order 6,302,483 1,388
Payment 6,302,481
Order Status 630,249
Delivery 630,248
Stock Level 630,248
Customer Report 6,302,482
60% 60.1% New Order 5,339,696 1,388
Payment 5,339,699
Order Status 533,970
Delivery 533,971
Stock Level 533,971
Customer Report 5,339,701
50% 50.0% New Order 4,436,224 1,388
Payment 4,436,220
Order Status 443,621
Delivery 443,621
Stock Level 443,623
Customer Report 4,436,215
40% 39.4% New Order 3,497,963 1,388
Payment 3,497,968
Order Status 349,797
Delivery 349,797
Stock Level 349,796
Customer Report 3,497,963
30% 30.7% New Order 2,725,758 1,388
Payment 2,725,756
Order Status 272,575
Delivery 272,576
Stock Level 272,576
Customer Report 2,725,759
20% 20.5% New Order 1,819,732 1,388
Payment 1,819,736
Order Status 181,973
Delivery 181,973
Stock Level 181,974
Customer Report 1,819,727
10% 9.8% New Order 871,211 1,388
Payment 871,211
Order Status 87,122
Delivery 87,123
Stock Level 87,122
Customer Report 871,211
Active Idle New Order 0 1,388
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
