xFusion Digital Technologies Co., Ltd FusionServer 2288H V7 | ssj_ops@100% = 123,463 | ||||
Test Sponsor: | xFusion Digital Technologies Co., Ltd | SPEC License #: | 6488 | Test Method: | Single Node |
Tested By: | xFusion Digital Technologies Co., Ltd | Test Location: | Shenzhen, Guangdong, China | Test Date: | Aug 3, 2023 |
Hardware Availability: | Jan-2023 | Software Availability: | Aug-2022 | Publication: | Aug 30, 2023 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

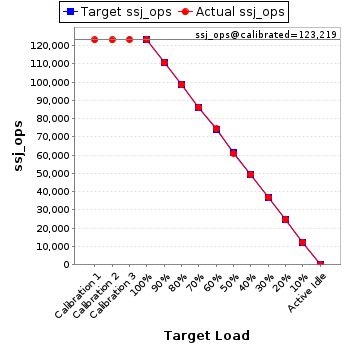

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 123,070 | ||
Calibration 2 | 123,052 | ||
Calibration 3 | 123,386 | ||
ssj_ops@calibrated=123,219 | |||
100% | 100.2% | 123,219 | 123,463 |
90% | 89.7% | 110,897 | 110,558 |
80% | 79.9% | 98,575 | 98,480 |
70% | 69.8% | 86,253 | 86,060 |
60% | 60.3% | 73,931 | 74,324 |
50% | 49.4% | 61,609 | 60,930 |
40% | 40.0% | 49,287 | 49,258 |
30% | 30.0% | 36,966 | 36,941 |
20% | 20.0% | 24,644 | 24,659 |
10% | 10.0% | 12,322 | 12,265 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 1 |
Comment: | Here is a comment for this set. |
Hardware | |
---|---|
Hardware Vendor: | xFusion Digital Technologies Co., Ltd |
Model: | FusionServer 2288H V7 |
Form Factor: | 2U |
CPU Name: | Intel Xeon Platinum 8490H |
CPU Characteristics: | 60-Core, 1.9GHz, Intel Turbo Boost Technology up to 3.5GHz, 112.5MB L3 Cache |
CPU Frequency (MHz): | 1900 |
CPU(s) Enabled: | 120 cores, 2 chips, 60 cores/chip |
Hardware Threads: | 240 (2 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 48 KB D on chip per core |
Secondary Cache: | 2 MB I+D on chip per core |
Tertiary Cache: | 115200 KB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 512 |
# and size of DIMM: | 16 x 32 GB |
Memory Details: | 32GB 2Rx8 PC5-4800B-RE0-1010-NT; slot DIMM000, DIMM010, DIMM020, DIMM030, DIMM040, DIMM050, DIMM060, DIMM070, DIMM100, DIMM110, DIMM120, DIMM130, DIMM140, DIMM150, DIMM160, DIMM170 populated |
Power Supply Quantity and Rating (W): | 1 x 1500 |
Power Supply Details: | xFusion PAC1500S12-B1 |
Disk Drive: | 1 x 960GB SSD 2.5" SATA |
Disk Controller: | Integrated SATA controller |
# and type of Network Interface Cards (NICs) Installed: | 1 x Dual-port Intel I350 Gigabit Ethernet controller |
NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Power Saver Mode enabled in OS |
Operating System (OS): | Microsoft Windows Server 2022 Datacenter |
OS Version: | 21H2(OS Build 20348.169) |
Filesystem: | NTFS |
JVM Vendor: | Oracle Corporation |
JVM Version: | Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.18+9-LTS-195, mixed mode) |
JVM Command-line Options: | -server -Xmn1825m -Xms1995m -Xmx1995m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes |
JVM Affinity: | start /NODE[0-7] /AFFINITY [0x3, 0xC, 0x30, 0xC0, 0x300, 0xC00, 0x3000, 0xC000, 0x30000, 0xC0000, 0x300000, 0xC00000, 0x3000000, 0xC000000, 0x30000000] |
JVM Instances: | 120 |
JVM Initial Heap (MB): | 1995 |
JVM Maximum Heap (MB): | 1995 |
JVM Address Bits: | 64 |
Boot Firmware Version: | 2.00.61 |
Management Firmware Version: | 3.07.00.11 |
Workload Version: | SSJ 1.2.10 |
Director Location: | Controller |
Other Software: | none |
Target Load | Actual Load | Transaction Type | Count | Total Heap (MB) |
---|---|---|---|---|
Calibration 1 | New Order | 8,971,314 | 1,388 | |
Payment | 8,971,318 | |||
Order Status | 897,131 | |||
Delivery | 897,132 | |||
Stock Level | 897,133 | |||
Customer Report | 8,971,315 | |||
Calibration 2 | New Order | 8,950,410 | 1,388 | |
Payment | 8,950,412 | |||
Order Status | 895,041 | |||
Delivery | 895,039 | |||
Stock Level | 895,040 | |||
Customer Report | 8,950,404 | |||
Calibration 3 | New Order | 8,976,246 | 1,388 | |
Payment | 8,976,246 | |||
Order Status | 897,625 | |||
Delivery | 897,625 | |||
Stock Level | 897,625 | |||
Customer Report | 8,976,246 | |||
100% | 100.2% | New Order | 8,980,334 | 1,388 |
Payment | 8,980,330 | |||
Order Status | 898,034 | |||
Delivery | 898,033 | |||
Stock Level | 898,033 | |||
Customer Report | 8,980,333 | |||
90% | 89.7% | New Order | 8,041,612 | 1,388 |
Payment | 8,041,613 | |||
Order Status | 804,162 | |||
Delivery | 804,162 | |||
Stock Level | 804,162 | |||
Customer Report | 8,041,614 | |||
80% | 79.9% | New Order | 7,163,583 | 1,388 |
Payment | 7,163,585 | |||
Order Status | 716,357 | |||
Delivery | 716,358 | |||
Stock Level | 716,358 | |||
Customer Report | 7,163,580 | |||
70% | 69.8% | New Order | 6,259,043 | 1,388 |
Payment | 6,259,043 | |||
Order Status | 625,905 | |||
Delivery | 625,906 | |||
Stock Level | 625,905 | |||
Customer Report | 6,259,046 | |||
60% | 60.3% | New Order | 5,405,591 | 1,388 |
Payment | 5,405,596 | |||
Order Status | 540,560 | |||
Delivery | 540,560 | |||
Stock Level | 540,560 | |||
Customer Report | 5,405,594 | |||
50% | 49.4% | New Order | 4,431,454 | 1,388 |
Payment | 4,431,454 | |||
Order Status | 443,145 | |||
Delivery | 443,145 | |||
Stock Level | 443,145 | |||
Customer Report | 4,431,452 | |||
40% | 40.0% | New Order | 3,582,579 | 1,388 |
Payment | 3,582,574 | |||
Order Status | 358,258 | |||
Delivery | 358,258 | |||
Stock Level | 358,257 | |||
Customer Report | 3,582,582 | |||
30% | 30.0% | New Order | 2,686,859 | 1,388 |
Payment | 2,686,860 | |||
Order Status | 268,686 | |||
Delivery | 268,685 | |||
Stock Level | 268,686 | |||
Customer Report | 2,686,860 | |||
20% | 20.0% | New Order | 1,793,465 | 1,388 |
Payment | 1,793,465 | |||
Order Status | 179,347 | |||
Delivery | 179,346 | |||
Stock Level | 179,347 | |||
Customer Report | 1,793,463 | |||
10% | 10.0% | New Order | 892,032 | 1,388 |
Payment | 892,031 | |||
Order Status | 89,205 | |||
Delivery | 89,203 | |||
Stock Level | 89,203 | |||
Customer Report | 892,031 | |||
Active Idle | New Order | 0 | 1,388 | |
Payment | 0 | |||
Order Status | 0 | |||
Delivery | 0 | |||
Stock Level | 0 | |||
Customer Report | 0 |
