xFusion Digital Technologies Co., Ltd FusionServer 2288H V7 ssj_ops@100% = 122,245
Test Sponsor: xFusion Digital Technologies Co., Ltd SPEC License #: 6488 Test Method: Single Node
Tested By: xFusion Digital Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Aug 3, 2023
Hardware Availability: Jan-2023 Software Availability: Aug-2022 Publication: Aug 30, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     122,041
Calibration 2     122,007
Calibration 3     122,232
ssj_ops@calibrated=122,119
100% 100.1% 122,119 122,245
90% 90.5% 109,908 110,574
80% 80.3% 97,696 98,119
70% 69.7% 85,484 85,176
60% 60.2% 73,272 73,469
50% 49.7% 61,060 60,650
40% 39.6% 48,848 48,330
30% 30.7% 36,636 37,459
20% 20.5% 24,424 24,986
10% 10.1% 12,212 12,373
Active Idle   0 0

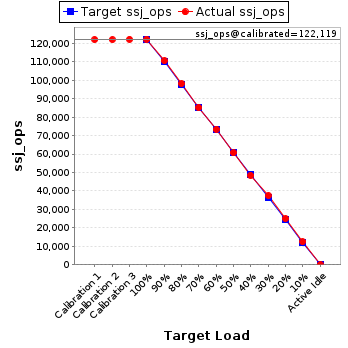

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Here is a comment for this set.
Hardware
Hardware Vendor: xFusion Digital Technologies Co., Ltd
Model: FusionServer 2288H V7
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8490H
CPU Characteristics: 60-Core, 1.9GHz, Intel Turbo Boost Technology up to 3.5GHz, 112.5MB L3 Cache
CPU Frequency (MHz): 1900
CPU(s) Enabled: 120 cores, 2 chips, 60 cores/chip
Hardware Threads: 240 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
Tertiary Cache: 115200 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 512
# and size of DIMM: 16 x 32 GB
Memory Details: 32GB 2Rx8 PC5-4800B-RE0-1010-NT; slot DIMM000, DIMM010, DIMM020, DIMM030, DIMM040, DIMM050, DIMM060, DIMM070, DIMM100, DIMM110, DIMM120, DIMM130, DIMM140, DIMM150, DIMM160, DIMM170 populated
Power Supply Quantity and Rating (W): 1 x 1500
Power Supply Details: xFusion PAC1500S12-B1
Disk Drive: 1 x 960GB SSD 2.5" SATA
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode enabled in OS
Operating System (OS): Microsoft Windows Server 2022 Datacenter
OS Version: 21H2(OS Build 20348.169)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.18+9-LTS-195, mixed mode)
JVM Command-line Options: -server -Xmn1825m -Xms1995m -Xmx1995m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: start /NODE[0-7] /AFFINITY [0x3, 0xC, 0x30, 0xC0, 0x300, 0xC00, 0x3000, 0xC000, 0x30000, 0xC0000, 0x300000, 0xC00000, 0x3000000, 0xC000000, 0x30000000]
JVM Instances: 120
JVM Initial Heap (MB): 1995
JVM Maximum Heap (MB): 1995
JVM Address Bits: 64
Boot Firmware Version: 2.00.61
Management Firmware Version: 3.07.00.11
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: none
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 8,893,020 1,388
Payment 8,893,018
Order Status 889,303
Delivery 889,302
Stock Level 889,301
Customer Report 8,893,025
Calibration 2 New Order 8,873,811 1,388
Payment 8,873,802
Order Status 887,380
Delivery 887,380
Stock Level 887,381
Customer Report 8,873,806
Calibration 3 New Order 8,890,791 1,388
Payment 8,890,791
Order Status 889,080
Delivery 889,079
Stock Level 889,079
Customer Report 8,890,788
100% 100.1% New Order 8,892,298 1,388
Payment 8,892,301
Order Status 889,231
Delivery 889,231
Stock Level 889,229
Customer Report 8,892,297
90% 90.5% New Order 8,041,990 1,388
Payment 8,041,991
Order Status 804,198
Delivery 804,198
Stock Level 804,199
Customer Report 8,041,985
80% 80.3% New Order 7,136,371 1,388
Payment 7,136,366
Order Status 713,637
Delivery 713,637
Stock Level 713,637
Customer Report 7,136,362
70% 69.7% New Order 6,194,933 1,388
Payment 6,194,931
Order Status 619,493
Delivery 619,492
Stock Level 619,492
Customer Report 6,194,934
60% 60.2% New Order 5,343,401 1,388
Payment 5,343,405
Order Status 534,341
Delivery 534,339
Stock Level 534,340
Customer Report 5,343,406
50% 49.7% New Order 4,411,988 1,388
Payment 4,411,987
Order Status 441,200
Delivery 441,199
Stock Level 441,199
Customer Report 4,411,994
40% 39.6% New Order 3,515,030 1,388
Payment 3,515,036
Order Status 351,504
Delivery 351,502
Stock Level 351,504
Customer Report 3,515,034
30% 30.7% New Order 2,724,417 1,388
Payment 2,724,419
Order Status 272,442
Delivery 272,441
Stock Level 272,443
Customer Report 2,724,412
20% 20.5% New Order 1,817,275 1,388
Payment 1,817,271
Order Status 181,726
Delivery 181,727
Stock Level 181,727
Customer Report 1,817,274
10% 10.1% New Order 899,874 1,388
Payment 899,877
Order Status 89,987
Delivery 89,987
Stock Level 89,987
Customer Report 899,875
Active Idle New Order 0 1,388
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
