Supermicro AS-1015SV-WTNRT SPECpower_ssj2008 = 26,485 overall ssj_ops/watt
Test Sponsor: Supermicro SPEC License #: 1176 Test Method: Single Node
Tested By: Supermicro Test Location: Zhonghe Dist, New Taipei City, Taiwan (R.O.C.) Test Date: Aug 11, 2023
Hardware Availability: Sep-2023 Software Availability: Aug-2023 Publication: Sep 19, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 199 26.7
Calibration 2 201 26.9
Calibration 3 202 27.1
100% 201 27.2
90% 174 27.3
80% 150 27.4
70% 142 27.5
60% 128 27.6
50% 119 27.6
40% 110 27.6
30% 101 27.7
20% 90.7 27.7
10% 80.0 27.8
Active Idle 50.6 27.8

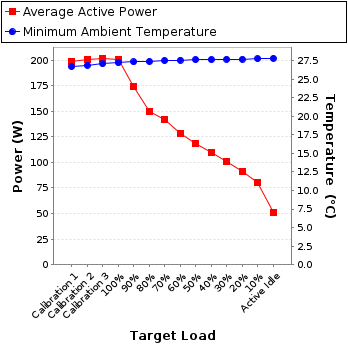

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation.
Model: WT310
Serial Number: C3RF27027E
Connectivity: GPIB
Input Connection: Default
Metrology Institute: NML (National Measurement Laboratory)
Accredited by: Omnio Calibration Lab. Co., Ltd.
Calibration Label: OCL-230203F01008
Date of Calibration: 03-Feb-2023
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: SUT Power Supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 10 mm in front of SUT main air intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 230 300.0 0.930 1.0 0.930 199 0.3%
Calibration 2 230 300.0 0.938 1.0 0.931 201 0.3%
Calibration 3 230 300.0 0.941 1.0 0.932 202 0.3%
100% 230 300.0 0.937 1.0 0.931 201 0.3%
90% 230 300.0 0.826 1.0 0.917 174 0.4%
80% 230 300.0 0.729 1.0 0.896 150 0.4%
70% 230 300.0 0.696 1.0 0.884 142 0.4%
60% 231 300.0 0.644 1.0 0.862 128 0.4%
50% 231 300.0 0.607 1.0 0.848 119 0.4%
40% 230 300.0 0.572 1.0 0.833 110 0.5%
30% 231 300.0 0.537 1.0 0.816 101 0.5%
20% 231 300.0 0.497 1.0 0.790 90.7 0.5%
10% 231 300.0 0.462 1.0 0.750 80.0 0.6%
Active Idle 231 300.0 0.372 1.0 0.589 50.6 0.7%
Power details for pwr1
