Hewlett Packard Enterprise ProLiant DL110 Gen11 ssj_ops@100% = 4,229,874
ssj_ops@100% per JVM = 132,184
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Aug 28, 2023
Hardware Availability: Oct-2023 Software Availability: Aug-2023 Publication: Sep 13, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,747,497
Calibration 2     4,251,142
Calibration 3     4,244,851
ssj_ops@calibrated=4,247,997
100% 99.6% 4,247,997 4,229,874
90% 90.1% 3,823,197 3,828,327
80% 80.0% 3,398,397 3,397,569
70% 70.0% 2,973,598 2,975,290
60% 59.9% 2,548,798 2,545,811
50% 50.0% 2,123,998 2,123,801
40% 40.0% 1,699,199 1,700,616
30% 30.0% 1,274,399 1,273,306
20% 20.0% 849,599 851,557
10% 10.0% 424,800 425,591
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL110 Gen11
Form Factor: 1U
CPU Name: Intel Xeon Gold 6438N 2.00 GHz (Intel Turbo Boost Technology up to 3.60 GHz)
CPU Characteristics: 32-Core, 2.00 GHz, 60MB L3 Cache
CPU Frequency (MHz): 2000
CPU(s) Enabled: 32 cores, 1 chip, 32 cores/chip
Hardware Threads: 64 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
Tertiary Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 8 x 16384 MB
Memory Details: 8 x 16GB 1Rx8 PC5-4800; slots 1, 2, 3, 4, 5, 6, 7 and 8
Power Supply Quantity and Rating (W): 1 x 700
Power Supply Details: HPE 700W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit (P44975-B21)
Disk Drive: 1 x 240GB M.2 SSD SATA (P47817-B21)
Disk Controller: embedded SATA
# and type of Network Interface Cards (NICs) Installed: 1 x Intel(R) Ethernet Server Adapter I350-T4 (P08449-B21)
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP4
OS Version: 5.14.21-150400.22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 17.0.8+9-LTS-211, mixed mode)
JVM Command-line Options: -server -Xms1500m -Xmx1500m -Xmn1300m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 32 }
JVM Instances: 32
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: U62 v1.50 (08/09/2023)
Management Firmware Version: 1.50 Jul 19 2023
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE ProLiant Agentless Management Service for SUSE LINUX Enterprise Server 15
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
  • Maximum Memory Bus Frequency: 4800
  • Access Control Service: Disabled
  • Workload Profile: Custom
  • Power Regulator: OS control Mode
  • Energy/Performance Bias: Balanced Power
  • Intel DMI Link Frequency: Gen 1 Speed
  • Sub-NUMA Clustering: Enabled SNC2 (2-clusters)
  • Intel UPI Link Enablement: Single Link Operation
  • Intel UPI Link Frequency: Min UPI speed
  • Adjacent Sector Prefetcher: Disabled
  • Maximum PCI Express Speed: PCIe Generation 1.0
    • Management Firmware Settings
    See SUT Notes
    System Under Test Notes
    Notes
    None
    JVM Instance Summary
    JVM Instance ssj_ops@100%
    dl110gen11.001 120,458
    dl110gen11.002 133,517
    dl110gen11.003 134,429
    dl110gen11.004 129,386
    dl110gen11.005 134,314
    dl110gen11.006 128,877
    dl110gen11.007 136,314
    dl110gen11.008 136,201
    dl110gen11.009 126,104
    dl110gen11.010 137,241
    dl110gen11.011 134,288
    dl110gen11.012 128,212
    dl110gen11.013 135,713
    dl110gen11.014 128,246
    dl110gen11.015 134,400
    dl110gen11.016 130,864
    dl110gen11.017 132,028
    dl110gen11.018 133,969
    dl110gen11.019 133,596
    dl110gen11.020 134,166
    dl110gen11.021 133,204
    dl110gen11.022 133,735
    dl110gen11.023 133,633
    dl110gen11.024 131,114
    dl110gen11.025 128,093
    dl110gen11.026 134,142
    dl110gen11.027 134,043
    dl110gen11.028 134,799
    dl110gen11.029 127,586
    dl110gen11.030 135,395
    dl110gen11.031 132,767
    dl110gen11.032 129,038
    ssj_ops@100% 4,229,874
    ssj_ops@100% per JVM 132,184

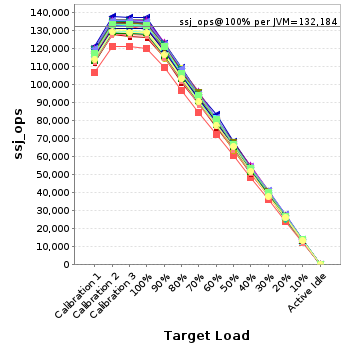

    Graph of per-instance results

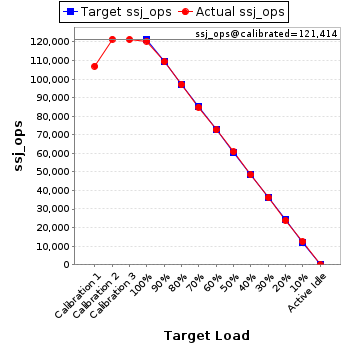

    JVM 'dl110gen11.001' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     106,944
    Calibration 2     121,486
    Calibration 3     121,342
    ssj_ops@calibrated=121,414
    100% 99.2% 121,414 120,458
    90% 90.1% 109,273 109,403
    80% 79.9% 97,131 97,055
    70% 69.9% 84,990 84,843
    60% 59.8% 72,849 72,613
    50% 50.1% 60,707 60,771
    40% 39.8% 48,566 48,378
    30% 29.8% 36,424 36,176
    20% 19.6% 24,283 23,836
    10% 10.2% 12,141 12,421
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'dl110gen11.002' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     118,628
    Calibration 2     133,996
    Calibration 3     133,832
    ssj_ops@calibrated=133,914
    100% 99.7% 133,914 133,517
    90% 90.7% 120,523 121,504
    80% 79.8% 107,131 106,896
    70% 69.4% 93,740 92,975
    60% 60.0% 80,348 80,400
    50% 50.1% 66,957 67,130
    40% 39.3% 53,566 52,583
    30% 30.1% 40,174 40,364
    20% 20.2% 26,783 27,049
    10% 10.1% 13,391 13,554
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'dl110gen11.003' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     118,893
    Calibration 2     134,718
    Calibration 3     134,441
    ssj_ops@calibrated=134,580
    100% 99.9% 134,580 134,429
    90% 89.7% 121,122 120,755
    80% 80.0% 107,664 107,640
    70% 70.0% 94,206 94,244
    60% 59.5% 80,748 80,077
    50% 50.6% 67,290 68,036
    40% 40.1% 53,832 53,962
    30% 30.2% 40,374 40,627
    20% 20.1% 26,916 27,046
    10% 9.9% 13,458 13,269
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'dl110gen11.004' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     113,835
    Calibration 2     130,506
    Calibration 3     129,922
    ssj_ops@calibrated=130,214
    100% 99.4% 130,214 129,386
    90% 90.2% 117,192 117,515
    80% 80.4% 104,171 104,755
    70% 69.9% 91,150 91,044
    60% 59.3% 78,128 77,211
    50% 50.3% 65,107 65,468
    40% 40.1% 52,085 52,164
    30% 29.8% 39,064 38,800
    20% 19.6% 26,043 25,503
    10% 10.0% 13,021 13,054
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'dl110gen11.005' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     119,353
    Calibration 2     135,325
    Calibration 3     135,052
    ssj_ops@calibrated=135,188
    100% 99.4% 135,188 134,314
    90% 89.5% 121,670 120,946
    80% 79.5% 108,151 107,450
    70% 70.4% 94,632 95,193
    60% 59.6% 81,113 80,543
    50% 50.0% 67,594 67,617
    40% 39.9% 54,075 53,941
    30% 29.9% 40,557 40,466
    20% 19.7% 27,038 26,583
    10% 10.1% 13,519 13,594
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'dl110gen11.006' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     114,278
    Calibration 2     129,676
    Calibration 3     129,443
    ssj_ops@calibrated=129,560
    100% 99.5% 129,560 128,877
    90% 89.8% 116,604 116,285
    80% 79.5% 103,648 102,985
    70% 70.7% 90,692 91,564
    60% 59.8% 77,736 77,503
    50% 50.0% 64,780 64,805
    40% 40.5% 51,824 52,438
    30% 30.2% 38,868 39,079
    20% 20.1% 25,912 26,060
    10% 10.0% 12,956 12,892
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'dl110gen11.007' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     120,215
    Calibration 2     136,295
    Calibration 3     136,435
    ssj_ops@calibrated=136,365
    100% 100.0% 136,365 136,314
    90% 90.1% 122,729 122,882
    80% 79.7% 109,092 108,652
    70% 70.5% 95,456 96,191
    60% 59.5% 81,819 81,156
    50% 49.5% 68,183 67,484
    40% 40.2% 54,546 54,885
    30% 30.4% 40,910 41,411
    20% 19.9% 27,273 27,136
    10% 9.7% 13,637 13,192
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'dl110gen11.008' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     120,160
    Calibration 2     136,558
    Calibration 3     136,336
    ssj_ops@calibrated=136,447
    100% 99.8% 136,447 136,201
    90% 89.8% 122,802 122,462
    80% 80.0% 109,157 109,092
    70% 70.0% 95,513 95,568
    60% 59.7% 81,868 81,462
    50% 50.1% 68,223 68,341
    40% 39.9% 54,579 54,379
    30% 30.3% 40,934 41,358
    20% 19.9% 27,289 27,121
    10% 10.2% 13,645 13,955
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'dl110gen11.009' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     112,433
    Calibration 2     127,713
    Calibration 3     127,127
    ssj_ops@calibrated=127,420
    100% 99.0% 127,420 126,104
    90% 90.2% 114,678 114,953
    80% 79.3% 101,936 101,097
    70% 70.5% 89,194 89,841
    60% 59.9% 76,452 76,283
    50% 50.3% 63,710 64,067
    40% 39.8% 50,968 50,691
    30% 30.1% 38,226 38,355
    20% 20.0% 25,484 25,528
    10% 10.2% 12,742 13,027
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'dl110gen11.010' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     121,303
    Calibration 2     138,031
    Calibration 3     137,552
    ssj_ops@calibrated=137,791
    100% 99.6% 137,791 137,241
    90% 89.2% 124,012 122,912
    80% 79.6% 110,233 109,634
    70% 69.2% 96,454 95,283
    60% 60.5% 82,675 83,370
    50% 49.6% 68,896 68,279
    40% 39.7% 55,117 54,662
    30% 29.7% 41,337 40,947
    20% 20.2% 27,558 27,859
    10% 10.0% 13,779 13,792
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'dl110gen11.011' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     119,362
    Calibration 2     134,890
    Calibration 3     134,579
    ssj_ops@calibrated=134,734
    100% 99.7% 134,734 134,288
    90% 90.6% 121,261 122,059
    80% 80.0% 107,788 107,723
    70% 69.2% 94,314 93,284
    60% 59.9% 80,841 80,692
    50% 49.4% 67,367 66,492
    40% 39.6% 53,894 53,416
    30% 29.3% 40,420 39,444
    20% 20.2% 26,947 27,220
    10% 9.8% 13,473 13,184
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'dl110gen11.012' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     113,269
    Calibration 2     128,303
    Calibration 3     128,126
    ssj_ops@calibrated=128,215
    100% 100.0% 128,215 128,212
    90% 89.6% 115,393 114,879
    80% 80.7% 102,572 103,497
    70% 70.5% 89,750 90,344
    60% 60.5% 76,929 77,540
    50% 49.5% 64,107 63,502
    40% 39.9% 51,286 51,202
    30% 30.2% 38,464 38,709
    20% 19.7% 25,643 25,260
    10% 10.0% 12,821 12,862
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.

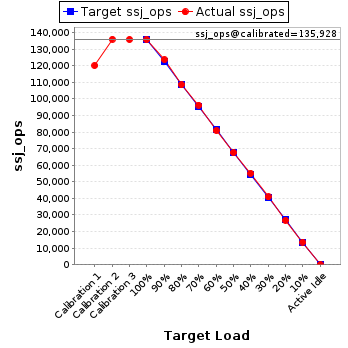

    JVM 'dl110gen11.013' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     120,154
    Calibration 2     136,001
    Calibration 3     135,856
    ssj_ops@calibrated=135,928
    100% 99.8% 135,928 135,713
    90% 91.0% 122,336 123,752
    80% 79.8% 108,743 108,458
    70% 70.8% 95,150 96,292
    60% 59.5% 81,557 80,882
    50% 49.7% 67,964 67,617
    40% 40.6% 54,371 55,182
    30% 30.0% 40,779 40,839
    20% 19.7% 27,186 26,788
    10% 10.0% 13,593 13,659
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'dl110gen11.014' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     113,674
    Calibration 2     129,076
    Calibration 3     128,629
    ssj_ops@calibrated=128,853
    100% 99.5% 128,853 128,246
    90% 89.7% 115,967 115,564
    80% 79.5% 103,082 102,408
    70% 70.2% 90,197 90,409
    60% 60.5% 77,312 77,906
    50% 50.2% 64,426 64,739
    40% 39.8% 51,541 51,292
    30% 30.5% 38,656 39,258
    20% 19.7% 25,771 25,351
    10% 10.0% 12,885 12,946
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'dl110gen11.015' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     119,076
    Calibration 2     134,525
    Calibration 3     134,189
    ssj_ops@calibrated=134,357
    100% 100.0% 134,357 134,400
    90% 90.3% 120,921 121,264
    80% 80.6% 107,486 108,356
    70% 69.9% 94,050 93,953
    60% 60.1% 80,614 80,749
    50% 50.5% 67,178 67,819
    40% 40.3% 53,743 54,095
    30% 29.7% 40,307 39,858
    20% 20.1% 26,871 26,967
    10% 9.8% 13,436 13,196
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'dl110gen11.016' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     116,385
    Calibration 2     132,633
    Calibration 3     132,477
    ssj_ops@calibrated=132,555
    100% 98.7% 132,555 130,864
    90% 90.2% 119,299 119,555
    80% 79.8% 106,044 105,796
    70% 70.2% 92,788 93,086
    60% 60.1% 79,533 79,668
    50% 50.2% 66,277 66,529
    40% 40.1% 53,022 53,203
    30% 30.6% 39,766 40,612
    20% 20.4% 26,511 27,092
    10% 9.9% 13,255 13,100
    Active Idle   0 0

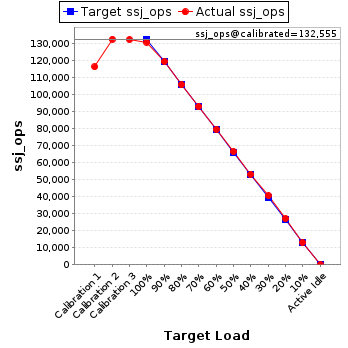

    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'dl110gen11.017' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     117,955
    Calibration 2     132,926
    Calibration 3     132,938
    ssj_ops@calibrated=132,932
    100% 99.3% 132,932 132,028
    90% 90.2% 119,639 119,881
    80% 79.5% 106,346 105,695
    70% 69.5% 93,052 92,383
    60% 60.0% 79,759 79,789
    50% 50.1% 66,466 66,587
    40% 40.3% 53,173 53,543
    30% 30.1% 39,880 40,038
    20% 20.0% 26,586 26,599
    10% 10.3% 13,293 13,687
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'dl110gen11.018' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     118,292
    Calibration 2     134,452
    Calibration 3     134,484
    ssj_ops@calibrated=134,468
    100% 99.6% 134,468 133,969
    90% 89.2% 121,021 119,998
    80% 79.9% 107,574 107,408
    70% 69.8% 94,128 93,792
    60% 59.1% 80,681 79,500
    50% 49.9% 67,234 67,039
    40% 40.1% 53,787 53,917
    30% 29.5% 40,340 39,689
    20% 19.9% 26,894 26,705
    10% 10.1% 13,447 13,559
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'dl110gen11.019' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     118,609
    Calibration 2     134,677
    Calibration 3     134,556
    ssj_ops@calibrated=134,617
    100% 99.2% 134,617 133,596
    90% 90.4% 121,155 121,714
    80% 81.1% 107,693 109,237
    70% 69.5% 94,232 93,565
    60% 59.7% 80,770 80,429
    50% 49.6% 67,308 66,713
    40% 40.0% 53,847 53,847
    30% 29.5% 40,385 39,714
    20% 20.4% 26,923 27,470
    10% 10.0% 13,462 13,450
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'dl110gen11.020' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     118,543
    Calibration 2     134,374
    Calibration 3     134,697
    ssj_ops@calibrated=134,535
    100% 99.7% 134,535 134,166
    90% 90.6% 121,082 121,850
    80% 79.9% 107,628 107,438
    70% 70.4% 94,175 94,647
    60% 60.3% 80,721 81,104
    50% 50.2% 67,268 67,545
    40% 40.5% 53,814 54,484
    30% 30.1% 40,361 40,449
    20% 20.3% 26,907 27,296
    10% 10.2% 13,454 13,662
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'dl110gen11.021' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     117,330
    Calibration 2     133,460
    Calibration 3     133,092
    ssj_ops@calibrated=133,276
    100% 99.9% 133,276 133,204
    90% 90.5% 119,949 120,655
    80% 79.2% 106,621 105,616
    70% 70.1% 93,293 93,381
    60% 60.9% 79,966 81,168
    50% 49.3% 66,638 65,667
    40% 40.1% 53,310 53,393
    30% 29.7% 39,983 39,536
    20% 20.0% 26,655 26,653
    10% 9.8% 13,328 13,064
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'dl110gen11.022' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     118,149
    Calibration 2     134,566
    Calibration 3     134,400
    ssj_ops@calibrated=134,483
    100% 99.4% 134,483 133,735
    90% 90.3% 121,035 121,464
    80% 80.9% 107,587 108,744
    70% 69.5% 94,138 93,481
    60% 59.9% 80,690 80,586
    50% 50.1% 67,242 67,377
    40% 40.0% 53,793 53,779
    30% 30.4% 40,345 40,849
    20% 20.2% 26,897 27,187
    10% 9.8% 13,448 13,187
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'dl110gen11.023' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     119,327
    Calibration 2     134,798
    Calibration 3     134,754
    ssj_ops@calibrated=134,776
    100% 99.2% 134,776 133,633
    90% 90.9% 121,299 122,522
    80% 79.8% 107,821 107,584
    70% 69.3% 94,343 93,410
    60% 59.7% 80,866 80,513
    50% 49.4% 67,388 66,622
    40% 39.9% 53,911 53,767
    30% 29.6% 40,433 39,941
    20% 20.1% 26,955 27,123
    10% 9.9% 13,478 13,321
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'dl110gen11.024' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     115,967
    Calibration 2     131,567
    Calibration 3     131,435
    ssj_ops@calibrated=131,501
    100% 99.7% 131,501 131,114
    90% 90.0% 118,351 118,315
    80% 80.1% 105,201 105,347
    70% 70.2% 92,051 92,357
    60% 60.1% 78,901 79,057
    50% 50.1% 65,751 65,836
    40% 40.2% 52,600 52,929
    30% 30.1% 39,450 39,571
    20% 19.9% 26,300 26,108
    10% 9.8% 13,150 12,901
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'dl110gen11.025' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     112,437
    Calibration 2     128,780
    Calibration 3     128,470
    ssj_ops@calibrated=128,625
    100% 99.6% 128,625 128,093
    90% 90.0% 115,763 115,735
    80% 79.6% 102,900 102,408
    70% 70.4% 90,038 90,556
    60% 59.9% 77,175 77,041
    50% 50.6% 64,313 65,112
    40% 39.7% 51,450 51,008
    30% 30.3% 38,588 38,990
    20% 20.1% 25,725 25,822
    10% 10.1% 12,863 12,975
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'dl110gen11.026' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     118,714
    Calibration 2     134,463
    Calibration 3     134,345
    ssj_ops@calibrated=134,404
    100% 99.8% 134,404 134,142
    90% 89.2% 120,964 119,878
    80% 80.6% 107,523 108,330
    70% 71.3% 94,083 95,826
    60% 59.5% 80,642 79,966
    50% 50.4% 67,202 67,801
    40% 39.9% 53,762 53,584
    30% 30.2% 40,321 40,547
    20% 20.0% 26,881 26,851
    10% 10.1% 13,440 13,569
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'dl110gen11.027' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     119,667
    Calibration 2     135,053
    Calibration 3     134,989
    ssj_ops@calibrated=135,021
    100% 99.3% 135,021 134,043
    90% 89.7% 121,519 121,124
    80% 80.4% 108,017 108,614
    70% 70.1% 94,515 94,657
    60% 59.9% 81,013 80,848
    50% 50.2% 67,511 67,752
    40% 40.3% 54,008 54,434
    30% 29.5% 40,506 39,826
    20% 20.4% 27,004 27,548
    10% 9.8% 13,502 13,258
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'dl110gen11.028' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     119,660
    Calibration 2     135,307
    Calibration 3     135,325
    ssj_ops@calibrated=135,316
    100% 99.6% 135,316 134,799
    90% 90.7% 121,785 122,772
    80% 80.4% 108,253 108,835
    70% 69.9% 94,721 94,593
    60% 59.7% 81,190 80,733
    50% 49.7% 67,658 67,310
    40% 40.1% 54,127 54,258
    30% 29.7% 40,595 40,202
    20% 20.1% 27,063 27,210
    10% 10.2% 13,532 13,818
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'dl110gen11.029' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     112,890
    Calibration 2     128,018
    Calibration 3     127,835
    ssj_ops@calibrated=127,926
    100% 99.7% 127,926 127,586
    90% 90.1% 115,134 115,316
    80% 80.0% 102,341 102,287
    70% 69.7% 89,548 89,217
    60% 60.3% 76,756 77,176
    50% 50.1% 63,963 64,142
    40% 40.3% 51,171 51,515
    30% 29.8% 38,378 38,085
    20% 20.4% 25,585 26,106
    10% 9.8% 12,793 12,539
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'dl110gen11.030' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     120,090
    Calibration 2     135,947
    Calibration 3     135,655
    ssj_ops@calibrated=135,801
    100% 99.7% 135,801 135,395
    90% 90.1% 122,221 122,297
    80% 80.3% 108,641 109,058
    70% 69.8% 95,061 94,838
    60% 60.1% 81,481 81,595
    50% 49.3% 67,900 66,916
    40% 39.8% 54,320 54,019
    30% 30.6% 40,740 41,512
    20% 20.4% 27,160 27,719
    10% 10.1% 13,580 13,754
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'dl110gen11.031' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     117,608
    Calibration 2     133,593
    Calibration 3     133,325
    ssj_ops@calibrated=133,459
    100% 99.5% 133,459 132,767
    90% 91.0% 120,113 121,432
    80% 79.4% 106,767 106,015
    70% 70.3% 93,422 93,801
    60% 60.4% 80,076 80,619
    50% 50.2% 66,730 66,958
    40% 40.3% 53,384 53,721
    30% 30.0% 40,038 40,088
    20% 19.9% 26,692 26,566
    10% 10.3% 13,346 13,754
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'dl110gen11.032' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     114,296
    Calibration 2     129,427
    Calibration 3     129,213
    ssj_ops@calibrated=129,320
    100% 99.8% 129,320 129,038
    90% 90.2% 116,388 116,684
    80% 80.0% 103,456 103,460
    70% 70.1% 90,524 90,673
    60% 60.0% 77,592 77,631
    50% 50.8% 64,660 65,730
    40% 40.2% 51,728 51,945
    30% 29.4% 38,796 37,966
    20% 20.3% 25,864 26,196
    10% 10.4% 12,932 13,394
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
