Supermicro AS-1015SV-WTNRT SPECpower_ssj2008 = 24,434 overall ssj_ops/watt
Test Sponsor: Supermicro SPEC License #: 1176 Test Method: Single Node
Tested By: Supermicro Test Location: Zhonghe Dist, New Taipei City, Taiwan (R.O.C.) Test Date: Aug 26, 2023
Hardware Availability: Sep-2023 Software Availability: Aug-2023 Publication: Sep 20, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 201 24.1
Calibration 2 202 26.4
Calibration 3 203 26.9
100% 202 27.1
90% 181 26.8
80% 162 26.3
70% 150 26.1
60% 136 25.8
50% 127 25.6
40% 118 25.4
30% 108 25.2
20% 97.8 25.1
10% 86.6 24.8
Active Idle 55.8 24.4

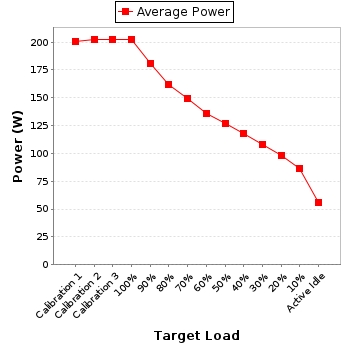

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation.
Model: WT310
Serial Number: C3RF27027E
Connectivity: GPIB
Input Connection: Default
Metrology Institute: NML (National Measurement Laboratory)
Accredited by: Omnio Calibration Lab. Co., Ltd.
Calibration Label: OCL-230203F01008
Date of Calibration: 03-Feb-2023
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: SUT Power Supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 10 mm in front of SUT main air intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 228 300.0 0.947 1.0 0.930 201 0.3%
Calibration 2 228 300.0 0.955 1.0 0.930 202 0.3%
Calibration 3 228 300.0 0.956 1.0 0.930 203 0.3%
100% 228 300.0 0.954 1.0 0.930 202 0.3%
90% 228 300.0 0.865 1.0 0.917 181 0.3%
80% 229 300.0 0.781 1.0 0.904 162 0.4%
70% 229 300.0 0.733 1.0 0.892 150 0.4%
60% 229 300.0 0.681 1.0 0.872 136 0.4%
50% 229 300.0 0.646 1.0 0.859 127 0.4%
40% 229 300.0 0.608 1.0 0.845 118 0.4%
30% 230 300.0 0.567 1.0 0.830 108 0.5%
20% 230 300.0 0.525 1.0 0.809 97.8 0.5%
10% 231 300.0 0.483 1.0 0.778 86.6 0.5%
Active Idle 231 300.0 0.383 1.0 0.631 55.8 0.7%
Power details for pwr1
