SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2023 Standard Performance Evaluation Corporation
| Supermicro AS-1115SV-WTNRT | SPECpower_ssj2008 = 10,356 overall ssj_ops/watt | ||||
| Test Sponsor: | Supermicro | SPEC License #: | 1176 | Test Method: | Single Node |
| Tested By: | Supermicro | Test Location: | San Jose, CA, USA | Test Date: | Sep 5, 2023 |
| Hardware Availability: | Sep-2023 | Software Availability: | Apr-2023 | Publication: | Sep 27, 2023 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

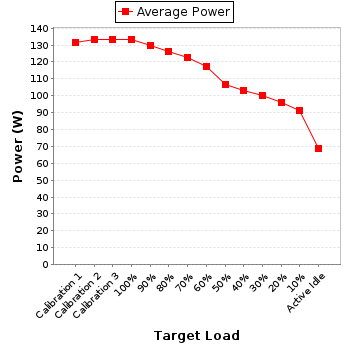

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 132 | 23.9 |
| Calibration 2 | 133 | 23.9 |
| Calibration 3 | 133 | 24.0 |
| 100% | 133 | 24.0 |
| 90% | 130 | 24.1 |
| 80% | 126 | 24.1 |
| 70% | 122 | 24.1 |
| 60% | 117 | 24.1 |
| 50% | 107 | 24.1 |
| 40% | 103 | 24.1 |
| 30% | 100 | 23.9 |
| 20% | 96.3 | 23.9 |
| 10% | 91.2 | 23.9 |
| Active Idle | 68.5 | 23.9 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA, Inc. |
| Model: | WT310E |
| Serial Number: | C2XM03068V |
| Connectivity: | USB2 |
| Input Connection: | Default |
| Metrology Institute: | TESCOM |
| Accredited by: | 12-May-2023 |
| Calibration Label: | T114528 |
| Date of Calibration: | 12-May-2023 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | iButtonLink, Inc. |
| Model: | LinkUSBi + T-Probe |
| Driver Version: | FTDI USB Serial Device 1.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 50 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 211 | 300.0 | 0.745 | 1.0 | 0.837 | 132 | 0.3% |
| Calibration 2 | 211 | 300.0 | 0.752 | 1.0 | 0.840 | 133 | 0.3% |
| Calibration 3 | 211 | 300.0 | 0.752 | 1.0 | 0.840 | 133 | 0.3% |
| 100% | 211 | 300.0 | 0.751 | 1.0 | 0.839 | 133 | 0.3% |
| 90% | 211 | 300.0 | 0.738 | 1.0 | 0.834 | 130 | 0.3% |
| 80% | 211 | 300.0 | 0.722 | 1.0 | 0.827 | 126 | 0.3% |
| 70% | 211 | 300.0 | 0.706 | 1.0 | 0.820 | 122 | 0.3% |
| 60% | 212 | 300.0 | 0.683 | 1.0 | 0.810 | 117 | 0.4% |
| 50% | 212 | 300.0 | 0.638 | 1.0 | 0.791 | 107 | 0.4% |
| 40% | 212 | 300.0 | 0.622 | 1.0 | 0.784 | 103 | 0.4% |
| 30% | 211 | 300.0 | 0.608 | 1.0 | 0.778 | 100 | 0.4% |
| 20% | 211 | 300.0 | 0.592 | 0.5 | 0.770 | 96.3 | 0.3% |
| 10% | 211 | 300.0 | 0.570 | 0.5 | 0.757 | 91.2 | 0.3% |
| Active Idle | 212 | 300.0 | 0.483 | 0.5 | 0.671 | 68.5 | 0.4% |
