Supermicro AS-1115SV-WTNRT ssj_ops@100% = 2,238,526
ssj_ops@100% per JVM = 279,816
Test Sponsor: Supermicro SPEC License #: 1176 Test Method: Single Node
Tested By: Supermicro Test Location: San Jose, CA, USA Test Date: Sep 5, 2023
Hardware Availability: Sep-2023 Software Availability: Apr-2023 Publication: Sep 27, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     2,294,809
Calibration 2     2,253,347
Calibration 3     2,248,692
ssj_ops@calibrated=2,251,020
100% 99.4% 2,251,020 2,238,526
90% 90.2% 2,025,918 2,031,197
80% 79.9% 1,800,816 1,799,234
70% 70.0% 1,575,714 1,574,960
60% 60.1% 1,350,612 1,351,833
50% 49.9% 1,125,510 1,122,472
40% 40.1% 900,408 901,943
30% 30.2% 675,306 679,752
20% 19.9% 450,204 448,543
10% 10.0% 225,102 225,005
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Supermicro
Model: AS-1115SV-WTNRT
Form Factor: 1U
CPU Name: AMD EPYC 8124PN
CPU Characteristics: 16-Core, 2.0 GHz, 64MB L3 Cache
CPU Frequency (MHz): 2000
CPU(s) Enabled: 16 cores, 1 chip, 16 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 512 KB I + 512 KB D on chip per core
Secondary Cache: 16 MB I+D on chip per core
Tertiary Cache: 64 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 96
# and size of DIMM: 6 x 16 GB
Memory Details: 6 x 16GB 1Rx8 PC5-4800B; CPU1 A1,B1,C1,D1,E1,F1 populated.
Power Supply Quantity and Rating (W): 1 x 860
Power Supply Details: PWS-861A-1R
Disk Drive: 1 x 1TB Samsung SSD 980 PRO
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual LAN BCM 57416 10GbE BaseT Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2022 Datacenter
OS Version: Version 21H2 (OS Build 20348.1668)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.1+12-LTS-39, mixed mode, sharing)
JVM Command-line Options: -server -Xms2048m -Xmx2048m -Xmn1900m -XX:+UseParallelGC -XX:ParallelGCThreads=4 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap
JVM Affinity: start/NODE[0] /AFFINITY [0xF, 0xF0, 0xF00, 0xF000, 0xF0000, 0xF00000, 0xF000000, 0xF0000000 ]
JVM Instances: 8
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: 1.0
Management Firmware Version: 01.01.01
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB5025230
Boot Firmware Settings
Management Firmware Settings
Fan Mode: Standard Speed
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-NLANLN8CQ1G.001 274,915
WIN-NLANLN8CQ1G.002 287,775
WIN-NLANLN8CQ1G.003 283,198
WIN-NLANLN8CQ1G.004 277,088
WIN-NLANLN8CQ1G.005 280,017
WIN-NLANLN8CQ1G.006 278,062
WIN-NLANLN8CQ1G.007 282,244
WIN-NLANLN8CQ1G.008 275,228
ssj_ops@100% 2,238,526
ssj_ops@100% per JVM 279,816
Graph of per-instance results
JVM 'WIN-NLANLN8CQ1G.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     282,625
Calibration 2     277,045
Calibration 3     276,001
ssj_ops@calibrated=276,523
100% 99.4% 276,523 274,915
90% 90.3% 248,871 249,786
80% 80.3% 221,219 221,954
70% 69.3% 193,566 191,707
60% 60.2% 165,914 166,454
50% 49.5% 138,262 136,842
40% 40.0% 110,609 110,696
30% 30.6% 82,957 84,677
20% 19.9% 55,305 55,049
10% 10.2% 27,652 28,232
Active Idle   0 0

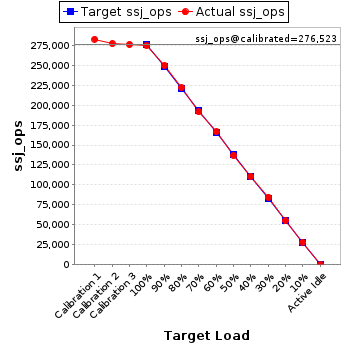

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-NLANLN8CQ1G.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     293,494
Calibration 2     288,104
Calibration 3     288,324
ssj_ops@calibrated=288,214
100% 99.8% 288,214 287,775
90% 90.5% 259,392 260,695
80% 80.0% 230,571 230,607
70% 70.2% 201,750 202,300
60% 60.2% 172,928 173,366
50% 49.9% 144,107 143,691
40% 40.3% 115,286 116,089
30% 30.3% 86,464 87,424
20% 20.0% 57,643 57,710
10% 9.8% 28,821 28,187
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-NLANLN8CQ1G.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     289,763
Calibration 2     284,991
Calibration 3     284,375
ssj_ops@calibrated=284,683
100% 99.5% 284,683 283,198
90% 89.9% 256,215 256,053
80% 80.1% 227,747 228,022
70% 69.9% 199,278 199,108
60% 60.6% 170,810 172,384
50% 50.0% 142,342 142,228
40% 39.6% 113,873 112,847
30% 30.0% 85,405 85,489
20% 19.8% 56,937 56,423
10% 10.1% 28,468 28,632
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-NLANLN8CQ1G.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     282,701
Calibration 2     279,299
Calibration 3     278,548
ssj_ops@calibrated=278,924
100% 99.3% 278,924 277,088
90% 90.6% 251,031 252,702
80% 80.1% 223,139 223,345
70% 70.2% 195,247 195,867
60% 60.0% 167,354 167,452
50% 50.0% 139,462 139,433
40% 40.2% 111,569 112,032
30% 30.6% 83,677 85,264
20% 19.9% 55,785 55,485
10% 10.1% 27,892 28,132
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-NLANLN8CQ1G.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     285,630
Calibration 2     282,164
Calibration 3     280,927
ssj_ops@calibrated=281,546
100% 99.5% 281,546 280,017
90% 90.1% 253,391 253,605
80% 79.4% 225,236 223,486
70% 70.0% 197,082 197,095
60% 60.0% 168,927 168,901
50% 49.8% 140,773 140,236
40% 40.3% 112,618 113,353
30% 29.9% 84,464 84,172
20% 20.0% 56,309 56,269
10% 9.9% 28,155 27,899
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-NLANLN8CQ1G.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     288,512
Calibration 2     280,569
Calibration 3     279,087
ssj_ops@calibrated=279,828
100% 99.4% 279,828 278,062
90% 89.6% 251,845 250,704
80% 79.3% 223,862 222,009
70% 70.2% 195,879 196,305
60% 59.6% 167,897 166,756
50% 49.9% 139,914 139,587
40% 40.4% 111,931 113,014
30% 30.1% 83,948 84,301
20% 20.1% 55,966 56,249
10% 10.0% 27,983 27,858
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-NLANLN8CQ1G.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     288,590
Calibration 2     284,196
Calibration 3     283,732
ssj_ops@calibrated=283,964
100% 99.4% 283,964 282,244
90% 90.2% 255,567 256,066
80% 80.1% 227,171 227,487
70% 70.0% 198,775 198,654
60% 60.1% 170,378 170,722
50% 49.9% 141,982 141,679
40% 39.8% 113,586 113,086
30% 29.9% 85,189 85,004
20% 19.9% 56,793 56,489
10% 9.9% 28,396 28,070
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-NLANLN8CQ1G.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     283,495
Calibration 2     276,980
Calibration 3     277,698
ssj_ops@calibrated=277,339
100% 99.2% 277,339 275,228
90% 90.7% 249,605 251,585
80% 80.2% 221,871 222,324
70% 69.9% 194,137 193,923
60% 59.8% 166,403 165,798
50% 50.0% 138,669 138,776
40% 40.0% 110,935 110,828
30% 30.1% 83,202 83,419
20% 19.8% 55,468 54,869
10% 10.1% 27,734 27,995
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
