SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2023 Standard Performance Evaluation Corporation
| Supermicro AS-1015SV-WTNRT | SPECpower_ssj2008 = 13,599 overall ssj_ops/watt | ||||
| Test Sponsor: | Supermicro | SPEC License #: | 1176 | Test Method: | Single Node |
| Tested By: | Supermicro | Test Location: | San Jose, CA, USA | Test Date: | Sep 11, 2023 |
| Hardware Availability: | Sep-2023 | Software Availability: | Apr-2023 | Publication: | Sep 27, 2023 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

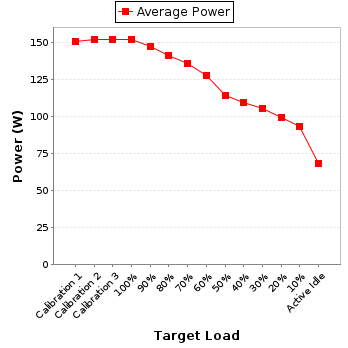

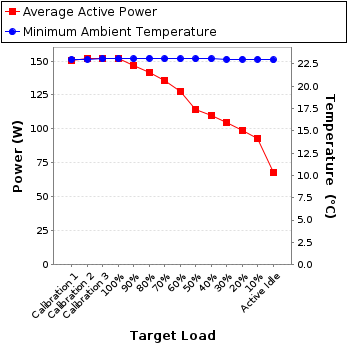

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 151 | 23.0 |
| Calibration 2 | 152 | 23.0 |
| Calibration 3 | 152 | 23.1 |
| 100% | 152 | 23.1 |
| 90% | 147 | 23.1 |
| 80% | 141 | 23.1 |
| 70% | 136 | 23.1 |
| 60% | 128 | 23.1 |
| 50% | 114 | 23.1 |
| 40% | 110 | 23.1 |
| 30% | 105 | 23.0 |
| 20% | 99.1 | 23.0 |
| 10% | 93.1 | 23.0 |
| Active Idle | 68.1 | 22.9 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA, Inc. |
| Model: | WT310E |
| Serial Number: | C2XM03068V |
| Connectivity: | USB2 |
| Input Connection: | Default |
| Metrology Institute: | TESCOM |
| Accredited by: | 12-May-2023 |
| Calibration Label: | T114528 |
| Date of Calibration: | 12-May-2023 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | iButtonLink, Inc. |
| Model: | LinkUSBi + T-Probe |
| Driver Version: | FTDI USB Serial Device 1.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 50 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 211 | 300.0 | 0.827 | 1.0 | 0.863 | 151 | 0.3% |
| Calibration 2 | 211 | 300.0 | 0.834 | 1.0 | 0.864 | 152 | 0.3% |
| Calibration 3 | 211 | 300.0 | 0.834 | 1.0 | 0.864 | 152 | 0.3% |
| 100% | 211 | 300.0 | 0.834 | 1.0 | 0.864 | 152 | 0.3% |
| 90% | 211 | 300.0 | 0.811 | 1.0 | 0.859 | 147 | 0.3% |
| 80% | 211 | 300.0 | 0.788 | 1.0 | 0.851 | 141 | 0.3% |
| 70% | 211 | 300.0 | 0.766 | 1.0 | 0.842 | 136 | 0.3% |
| 60% | 211 | 300.0 | 0.733 | 1.0 | 0.827 | 128 | 0.3% |
| 50% | 211 | 300.0 | 0.674 | 1.0 | 0.803 | 114 | 0.4% |
| 40% | 211 | 300.0 | 0.655 | 1.0 | 0.795 | 110 | 0.4% |
| 30% | 211 | 300.0 | 0.635 | 1.0 | 0.785 | 105 | 0.4% |
| 20% | 211 | 300.0 | 0.609 | 0.5 | 0.773 | 99.1 | 0.3% |
| 10% | 211 | 300.0 | 0.583 | 0.5 | 0.759 | 93.1 | 0.3% |
| Active Idle | 211 | 300.0 | 0.486 | 0.5 | 0.666 | 68.1 | 0.4% |
