SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2023 Standard Performance Evaluation Corporation
| Lenovo Global Technology ThinkSystem SR860 V3 | SPECpower_ssj2008 = 13,633 overall ssj_ops/watt | ||||
| Test Sponsor: | Lenovo Global Technology | SPEC License #: | 9017 | Test Method: | Single Node |
| Tested By: | Lenovo Global Technology | Test Location: | Beijing, China | Test Date: | Sep 8, 2023 |
| Hardware Availability: | Jun-2023 | Software Availability: | Jun-2022 | Publication: | Sep 27, 2023 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

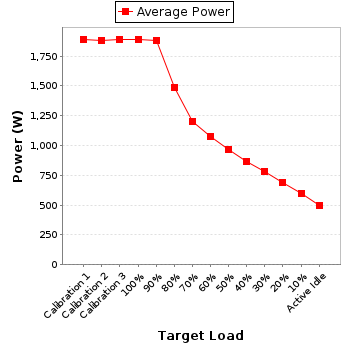

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 1,887 | 21.8 |
| Calibration 2 | 1,883 | 21.9 |
| Calibration 3 | 1,892 | 22.4 |
| 100% | 1,886 | 23.1 |
| 90% | 1,882 | 23.4 |
| 80% | 1,488 | 23.0 |
| 70% | 1,197 | 22.8 |
| 60% | 1,074 | 22.6 |
| 50% | 964 | 22.5 |
| 40% | 864 | 22.4 |
| 30% | 778 | 22.3 |
| 20% | 690 | 22.1 |
| 10% | 601 | 21.9 |
| Active Idle | 496 | 21.8 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA, Inc. |
| Model: | WT310E |
| Serial Number: | C3UD17025E |
| Connectivity: | USB |
| Input Connection: | Default |
| Metrology Institute: | China National Accreditation Service for Conformity Assessment (CNAS) |
| Accredited by: | GRG METROLOGY & TEST (BEIJING) CO.,LTD. |
| Calibration Label: | J202210116758A-0001 |
| Date of Calibration: | 19-Oct-2022 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | Connected to PSU 1 PSU 2 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International, Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 50 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 216 | 300.0 | 8.75 | 10.0 | 0.997 | 1,887 | 0.2% |
| Calibration 2 | 216 | 300.0 | 8.73 | 10.0 | 0.997 | 1,883 | 0.2% |
| Calibration 3 | 216 | 300.0 | 8.78 | 10.0 | 0.997 | 1,892 | 0.2% |
| 100% | 216 | 300.0 | 8.75 | 10.0 | 0.997 | 1,886 | 0.2% |
| 90% | 216 | 300.0 | 8.74 | 10.0 | 0.996 | 1,882 | 0.2% |
| 80% | 217 | 300.0 | 6.90 | 10.0 | 0.995 | 1,488 | 0.2% |
| 70% | 217 | 300.0 | 5.55 | 10.0 | 0.993 | 1,197 | 0.3% |
| 60% | 218 | 300.0 | 4.98 | 10.0 | 0.990 | 1,074 | 0.3% |
| 50% | 218 | 300.0 | 4.47 | 10.0 | 0.989 | 964 | 0.3% |
| 40% | 218 | 300.0 | 4.01 | 5.0 | 0.988 | 864 | 0.2% |
| 30% | 218 | 300.0 | 3.62 | 5.0 | 0.986 | 778 | 0.2% |
| 20% | 218 | 300.0 | 3.22 | 5.0 | 0.983 | 690 | 0.2% |
| 10% | 218 | 300.0 | 2.81 | 5.0 | 0.981 | 601 | 0.3% |
| Active Idle | 219 | 300.0 | 2.32 | 5.0 | 0.979 | 496 | 0.3% |
