ASUSTeK Computer Inc. ESC4000-E11 SPECpower_ssj2008 = 17,190 overall ssj_ops/watt
Test Sponsor: ASUSTeK Computer Inc. SPEC License #: 9016 Test Method: Single Node
Tested By: ASUSTeK Computer Inc. Test Location: Taipei, Taiwan. Test Date: Oct 11, 2023
Hardware Availability: Jul-2023 Software Availability: Aug-2023 Publication: Nov 8, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 100.1% 15,133,028 775 19,526
90% 90.0% 13,604,284 654 20,799
80% 80.1% 12,109,325 570 21,236
70% 70.1% 10,591,596 509 20,819
60% 60.0% 9,068,206 454 19,975
50% 49.9% 7,549,851 411 18,370
40% 39.9% 6,035,353 372 16,208
30% 30.1% 4,548,860 339 13,435
20% 20.0% 3,022,232 306 9,887
10% 10.0% 1,508,663 268 5,628
Active Idle 0 181 0
∑ssj_ops / ∑power = 17,190

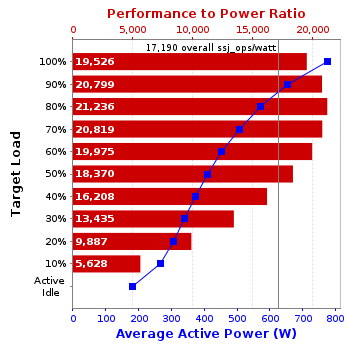

Graph of results
System Under Test
Set: 'RS720-E11-RS12U'
Set Identifier: RS720-E11-RS12U
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: ASUSTeK Computer Inc.
Model: ESC4000-E11
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8490H
CPU Characteristics: 60-Core, 1.9GHz, Intel Turbo Boost Technology up to 3.5GHz, 112.5MB L3 Cache
CPU Frequency (MHz): 1900
CPU(s) Enabled: 120 cores, 2 chips, 60 cores/chip
Hardware Threads: 240 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
Tertiary Cache: 115200 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16 GB
Memory Details: 16 x 16GB 1Rx8 PC5-4800B-R ECC RDIMM; all DIMM slots populated
Power Supply Quantity and Rating (W): 1 x 2600
Power Supply Details: GOSPOWER G1302-2600WRA REV:0.2 P/N: 0A100-00450900
Disk Drive: 1 x 512GB Samsung P4X4 M.2 PCIE SSD P/N: 03B03-00379600
Disk Controller: Integrated PCIe controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (See SUT Notes)
Operating System (OS): Microsoft Windows Server 2022 Datacenter
OS Version: Version 21H2 (OS Build 20348.1366)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.16.1+1-LTS-1, mixed mode), version 11.0.16.1
JVM Command-line Options: -server -Xmn1650m -Xms1800m -Xmx1800m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0+ -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: start /NODE[0-7] /AFFINITY [0x3, 0xC, 0x30, 0xC0, 0x300, 0xC00, 0x3000, 0xC000, 0x30000, 0xC0000, 0x300000, 0xC00000, 0x3000000, 0xC000000, 0x30000000]
JVM Instances: 120
JVM Initial Heap (MB): 1800
JVM Maximum Heap (MB): 1800
JVM Address Bits: 64
Boot Firmware Version: 0301
Management Firmware Version: 1.1.7
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: MS-KB5021249, ASUS Control Center V2.2.0.3
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: ASUSTeK Computer Inc.
Model: RS200-E9-PS2
CPU Description: 1 x E3-1240L V5
Memory amount (GB): 64
Software
Operating System (OS): Windows Server 2012 R2 Datacenter (64-bit)
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT210
Serial Number: 91J615902
Connectivity: RS-232
Input Connection: Default
Metrology Institute: National Measurement Laboratory of the R.O.C.
Accredited by: OMNIO Calibration Laboratory Ltd.
Calibration Label: OCL-230602F02201
Date of Calibration: 2-Jun-2023
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: Connected to PSU1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50 mm.
Notes
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 775 24.4
90% 654 24.4
80% 570 24.3
70% 509 24.5
60% 454 24.3
50% 411 24.4
40% 372 24.4
30% 339 24.4
20% 306 24.2
10% 268 24.3
Active Idle 181 24.2
Line Standard Minimum Temperature (°C) Elevation (m)
220V / 60 Hz / 1 phase / 2 wires 24.2 132
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     15,014,125
Calibration 2     15,100,977
Calibration 3     15,131,127
ssj_ops@calibrated=15,116,052
100% 100.1% 15,116,052 15,133,028
90% 90.0% 13,604,447 13,604,284
80% 80.1% 12,092,842 12,109,325
70% 70.1% 10,581,236 10,591,596
60% 60.0% 9,069,631 9,068,206
50% 49.9% 7,558,026 7,549,851
40% 39.9% 6,046,421 6,035,353
30% 30.1% 4,534,816 4,548,860
20% 20.0% 3,023,210 3,022,232
10% 10.0% 1,511,605 1,508,663
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
