SPECpower_ssj2008

Quanta Cloud Technology QuantaGrid D44N-1U			SPECpower_ssj2008 = 26,377 overall ssj_ops/watt
Test Sponsor:	Quanta Computer Inc.	SPEC License #:	9050	Test Method:	Single Node
Tested By:	Quanta Computer Inc.	Test Location:	Taoyuan, TW, R.O.C	Test Date:	Oct 17, 2023
Hardware Availability:	Nov-2023	Software Availability:	Jul-2023	Publication:	Jan 16, 2024
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Quanta Cloud Technology
Model:	QuantaGrid D44N-1U
Form Factor:	1U
CPU Name:	AMD EPYC 9654 2.40GHz
CPU Characteristics:	96 core, 2.4GHz, 384MB L3 Cache
CPU Frequency (MHz):	2400
CPU(s) Enabled:	192 cores, 2 chips, 96 cores/chip
Hardware Threads:	384 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	384 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 1Rx8 PC5-4800B-RE0; slots 1 to 24 populated
Power Supply Quantity and Rating (W):	1 x 1600
Power Supply Details:	GreatWall CRPS1600C2
Disk Drive:	1 x 256GB M.2 Daughter card Quanta P/N : ABS0256G512
Disk Controller:	PCI-e controller
# and type of Network Interface Cards (NICs) Installed:	1 x Intel X710-AT2, 2-port
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Balanced power plan in OS
Operating System (OS):	Microsoft Windows Server 2022 Datacenter Evaluation
OS Version:	Version 22H2 (OS Build 20348.1787)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Java HotSpot(TM) 64-Bit Server VM (build 17.0.8+9-LTS-211, mixed mode, sharing)
JVM Command-line Options:	-server -Xms1500m -Xmx1500m -Xmn1300m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap
JVM Affinity:	start /NODE [0-23] /AFFINITY [0xF,0xF0,0xF00,0xF000]
JVM Instances:	96
JVM Initial Heap (MB):	1500
JVM Maximum Heap (MB):	1500
JVM Address Bits:	64
Boot Firmware Version:	3A02
Management Firmware Version:	3.24
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	Microsoft Windows (KB5027225)

none

Benchmark started via Windows Remote Desktop Connection
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark
Hard Disk set to turn off after 1 minute
Display set to turn off after 1 minute
NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
The system ROM used for this result contains AMD AGESA version 0xA10113E for the AMD EPYC 9754 processor
Using Windows PowerShell, set the following powercfg properties:

Software
Operating System (OS):	Microsoft Windows Server 2012 Datacenter 64-bit
JVM Vendor:	Oracle Corporation
JVM Version:	Hotspot(TM) Client VM, version 1.7.0_25
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	Yokogawa Meters and Instruments Corporation
Model:	WT210
Serial Number:	91MC16750
Connectivity:	USB
Input Connection:	Default
Metrology Institute:	SGS
Accredited by:	Tai Yi Electronics & Surveillance Co, Ltd. Calibration Laboratory,Taiwan
Calibration Label:	ECR2317157
Date of Calibration:	16-May-2023
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.10.0-82175bac-20220817
Setup Description:	Connected to power supply

Temperature Sensor temp1
Hardware Vendor:	Digi International Inc.
Model:	Watchport/T
Driver Version:	5.70.105.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	25 mm in front of SUT main airflow intake

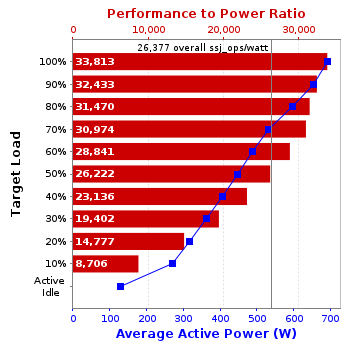

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	692	20.9
90%	653	20.9
80%	598	20.9
70%	532	20.9
60%	489	20.9
50%	448	20.9
40%	406	20.8
30%	363	20.8
20%	318	20.8
10%	270	20.8
Active Idle	129	20.8

Line Standard	Minimum Temperature (°C)	Elevation (m)
220V / 60 Hz / 1 phase / 2 wires	20.8	250

See the Power/Temperature Details Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
