Hewlett Packard Enterprise ProLiant ML30 Gen11 SPECpower_ssj2008 = 10,143 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Nov 17, 2023
Hardware Availability: Dec-2023 Software Availability: Jul-2023 Publication: Jan 17, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.5% 1,245,130 98.2 12,677
90% 90.1% 1,127,775 91.8 12,280
80% 79.9% 999,198 83.7 11,944
70% 70.1% 877,606 76.5 11,468
60% 60.2% 753,049 69.2 10,886
50% 49.9% 624,658 61.3 10,186
40% 40.1% 501,756 54.4 9,223
30% 30.1% 376,534 47.6 7,914
20% 20.0% 249,882 40.4 6,188
10% 9.9% 124,407 32.5 3,822
Active Idle 0 22.6 0
∑ssj_ops / ∑power = 10,143

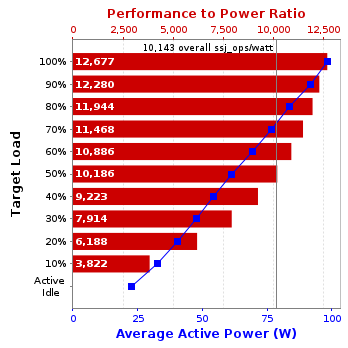

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant ML30 Gen11
Form Factor: 4U Tower
CPU Name: Intel Xeon E E-2488
CPU Characteristics: 8-Core, 3.20 GHz, 24 MB L3 Cache
CPU Frequency (MHz): 3200
CPU(s) Enabled: 8 cores, 1 chip, 8 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
Tertiary Cache: 24 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 32
# and size of DIMM: 2 x 16384 MB
Memory Details: 16 GB 1Rx4 PC5-5600-U slots 2 and 4 on each socket
Power Supply Quantity and Rating (W): 1 x 290
Power Supply Details: HPE 290W AC power supply assembly Non-hot-plug (823805-001)
Disk Drive: 1 x HPE 480 GB SATA 6G Read Intensive SFF BC Multi-Vendor SSD (P40497-B21)
Disk Controller: Embedded SATA
# and type of Network Interface Cards (NICs) Installed: 1 x BCM 5719 1GbE 4p BASE-T LOM Adptr
NICs Enabled in Firmware / OS / Connected: 4/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP4
OS Version: 5.14.21-150400.22-default
Filesystem: XFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.8+9-LTS-211, mixed mode, sharing)
JVM Command-line Options: -server -Xmn10500m -Xms12000m -Xmx12000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=16 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy
JVM Affinity: numactl --cpunodebind=0 --localalloc
JVM Instances: 1
JVM Initial Heap (MB): 12000
JVM Maximum Heap (MB): 12000
JVM Address Bits: 64
Boot Firmware Version: U65 v1.40 (10/18/2023)
Management Firmware Version: 1.45 Jun 12 2023
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings

BIOS Platform Configuration (RBSU):

Management Firmware Settings
See SUT Notes
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL360 Gen9
CPU Description: 2 x Intel Xeon E5-2660 v3
Memory amount (GB): 128
Software
Operating System (OS): Windows Server 2019 - Version 1809
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT310
Serial Number: C2QM22005V
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-HF8LX-20-1
Date of Calibration: 19-Jul-2023
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: Unknown
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 98.2 24.4
90% 91.8 24.5
80% 83.7 24.2
70% 76.5 24.2
60% 69.2 24.2
50% 61.3 23.9
40% 54.4 23.9
30% 47.6 23.9
20% 40.4 23.7
10% 32.5 23.8
Active Idle 22.6 23.8
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 23.7 132
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,266,342
Calibration 2     1,254,734
Calibration 3     1,247,844
ssj_ops@calibrated=1,251,289
100% 99.5% 1,251,289 1,245,130
90% 90.1% 1,126,160 1,127,775
80% 79.9% 1,001,031 999,198
70% 70.1% 875,902 877,606
60% 60.2% 750,773 753,049
50% 49.9% 625,644 624,658
40% 40.1% 500,515 501,756
30% 30.1% 375,387 376,534
20% 20.0% 250,258 249,882
10% 9.9% 125,129 124,407
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
