Quanta Cloud Technology QuantaGrid D54Q-2U SPECpower_ssj2008 = 16,106 overall ssj_ops/watt
Test Sponsor: Quanta Computer Inc. SPEC License #: 9050 Test Method: Single Node
Tested By: Quanta Computer Inc. Test Location: Taoyuan, TW, R.O.C Test Date: Nov 21, 2023
Hardware Availability: Feb-2024 Software Availability: Nov-2023 Publication: Jan 12, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 100.1% 17,264,681 968 17,839
90% 91.8% 15,833,587 909 17,418
80% 80.4% 13,854,780 838 16,530
70% 70.0% 12,076,076 626 19,305
60% 59.9% 10,331,929 538 19,217
50% 50.0% 8,616,784 476 18,089
40% 40.0% 6,897,950 421 16,387
30% 30.0% 5,177,536 373 13,871
20% 20.0% 3,448,667 328 10,517
10% 10.0% 1,728,617 284 6,088
Active Idle 0 152 0
∑ssj_ops / ∑power = 16,106

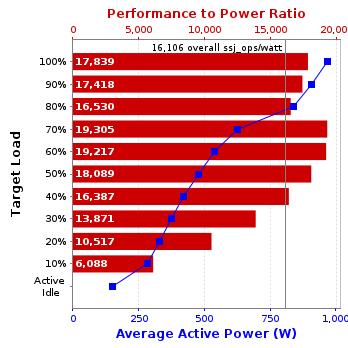

Graph of results
System Under Test
Set: 'D54Q-2U_EMR'
Set Identifier: D54Q-2U_EMR
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Quanta Cloud Technology
Model: QuantaGrid D54Q-2U
Form Factor: 2U
CPU Name: Intel Xeon 8592+ 1.9 GHz
CPU Characteristics: 64 core, 1.9GHz, 320MB L3 Cache
CPU Frequency (MHz): 1900
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 128 MB I+D on chip per chip
Tertiary Cache: 320 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 512
# and size of DIMM: 16 x 32768 MB
Memory Details: 32GB 2Rx4 PC5-4800B-RE0; slots A0, B0, C0, D0, E0, F0, G0 ,H0 populated on each socket,Quanta P/N:ATR6XAHRL04
Power Supply Quantity and Rating (W): 1 x 2600
Power Supply Details: Murata D1U74T-W-2600-12-HB4C-QNT,Quanta P/N:AFR00F00001
Disk Drive: 1 x 256GB NVMe SSD, KBG50ZNS256G,Quanta P/N:ABS0256G512
Disk Controller: Integrated PCI-e controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Ethernet Controller X710-T2L OCP3.0 10G, 2-port,Quanta P/N: ADPC0710031
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power save plan in OS
Operating System (OS): Microsoft Windows Server 2022
OS Version: Version 21H2 (OS Build 20348.1970)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 11.0.20+9-LTS-256, mixed mode, sharing)
JVM Command-line Options: -server -Xmn1650m -Xms1800m -Xmx1800m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: start /NODE[0-3] /AFFINITY [0x3, 0xc, 0x30, 0xc0, 0x300, 0xc00, 0x3000, 0xc000, 0x30000, 0xc0000, 0x300000, 0xc00000, 0x3000000, 0xc000000, 0x30000000, 0xc0000000, 0x300000000, 0xc00000000, 0x3000000000, 0xc000000000, 0x30000000000, 0xc0000000000, 0x300000000000, 0xc00000000000, 0x3000000000000, 0xc000000000000, 0x30000000000000, 0xc0000000000000, 0x300000000000000, 0xc00000000000000, 0x3000000000000000, 0xc000000000000000]
JVM Instances: 128
JVM Initial Heap (MB): 1800
JVM Maximum Heap (MB): 1800
JVM Address Bits: 64
Boot Firmware Version: 3B05.QCT4T1
Management Firmware Version: 3.57
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows (KB5016627)
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Quanta Computer Inc.
Model: S99
CPU Description: Intel Xeon CPU X5670, 2.93Ghz
Memory amount (GB): 88
Software
Operating System (OS): Microsoft Windows Server 2012 Datacenter 64-bit
JVM Vendor: Oracle Corporation
JVM Version: Hotspot(TM) Client VM, version 1.7.0_25
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91MC16750
Connectivity: USB
Input Connection: Default
Metrology Institute: NML (National Measurement Laboratory)
Accredited by: SGS
Calibration Label: ECR231757
Date of Calibration: 16-May-2023
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: Connected to power supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/T
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 25 mm in front of SUT main airflow intake
Notes
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 968 22.0
90% 909 22.2
80% 838 22.4
70% 626 22.4
60% 538 22.4
50% 476 22.3
40% 421 22.2
30% 373 22.1
20% 328 22.1
10% 284 22.0
Active Idle 152 21.9
Line Standard Minimum Temperature (°C) Elevation (m)
220V / 60 Hz / 1 phase / 2 wires 21.9 250
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     17,217,434
Calibration 2     17,224,435
Calibration 3     17,258,488
ssj_ops@calibrated=17,241,461
100% 100.1% 17,241,461 17,264,681
90% 91.8% 15,517,315 15,833,587
80% 80.4% 13,793,169 13,854,780
70% 70.0% 12,069,023 12,076,076
60% 59.9% 10,344,877 10,331,929
50% 50.0% 8,620,731 8,616,784
40% 40.0% 6,896,585 6,897,950
30% 30.0% 5,172,438 5,177,536
20% 20.0% 3,448,292 3,448,667
10% 10.0% 1,724,146 1,728,617
Active Idle   0 0

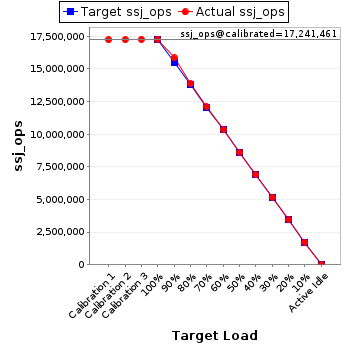

Graph of results
See the Host Performance Report for additional details.
