Lenovo Global Technology ThinkEdge SE360 V2 SPECpower_ssj2008 = 7,492 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Jan 26, 2024
Hardware Availability: Dec-2023 Software Availability: Jun-2022 Publication: Mar 1, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.7% 1,371,159 135 10,172
90% 88.4% 1,216,100 122 10,007
80% 79.8% 1,097,604 111 9,850
70% 69.0% 948,559 101 9,346
60% 60.0% 824,457 94.6 8,715
50% 50.0% 686,918 88.0 7,809
40% 39.9% 548,212 82.2 6,672
30% 30.0% 412,498 77.2 5,343
20% 19.9% 274,165 72.1 3,803
10% 9.9% 136,586 66.7 2,047
Active Idle 0 53.3 0
∑ssj_ops / ∑power = 7,492
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkEdge SE360 V2
Form Factor: 2U
CPU Name: Intel(R) Xeon(R) D-2775TE CPU @ 2.00GHz
CPU Characteristics: 16-Core, 2.00GHz, 25MB L3 Cache
CPU Frequency (MHz): 2000
CPU(s) Enabled: 16 cores, 1 chip, 16 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per core
Tertiary Cache: 25 MB I+D off chip per chip
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 4 x 16 GB
Memory Details: 4 x 16GB 2Rx8 PC4-3200AA-RE2; slots 1 to 4 populated
Power Supply Quantity and Rating (W): 1 x 300
Power Supply Details: Lenovo P/N:4X27A88607
Disk Drive: 1 x 480GB M.2 SSD P/N:4XB7A83139
Disk Controller: Integrated NVME controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 1GbE 4-Port RJ45 Ethernet Adapter
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP4
OS Version: 5.14.21-150400.22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:UseAVX=1 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:BiasedLockingStartupDelay=30000 -XX:-ThreadLocalHandshakes -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 16 }
JVM Instances: 16
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: IYE106R
Management Firmware Version: IYX322X
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SR645
CPU Description: 2 x AMD EPYC 7763 2.45GHz
Memory amount (GB): 512
Software
Operating System (OS): Microsoft Windows Server 2019 DataCenter - Version 1809 (OS Build 17763.1217)
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.4+10-LTS, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3UD17023E
Connectivity: USB
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: GRG METROLOGY & TEST (BEIJING) CO.,LTD.
Calibration Label: J202308266858A-0003
Date of Calibration: 16-Oct-2023
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.0-a4047d62-20231205
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 135 23.9
90% 122 23.2
80% 111 23.6
70% 101 24.1
60% 94.6 24.5
50% 88.0 24.2
40% 82.2 24.1
30% 77.2 24.3
20% 72.1 24.4
10% 66.7 24.4
Active Idle 53.3 24.4
Line Standard Minimum Temperature (°C) Elevation (m)
220V / 50 Hz / 1 phase / 2 wires 23.2 43
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,381,844
Calibration 2     1,374,117
Calibration 3     1,376,214
ssj_ops@calibrated=1,375,166
100% 99.7% 1,375,166 1,371,159
90% 88.4% 1,237,649 1,216,100
80% 79.8% 1,100,133 1,097,604
70% 69.0% 962,616 948,559
60% 60.0% 825,099 824,457
50% 50.0% 687,583 686,918
40% 39.9% 550,066 548,212
30% 30.0% 412,550 412,498
20% 19.9% 275,033 274,165
10% 9.9% 137,517 136,586
Active Idle   0 0

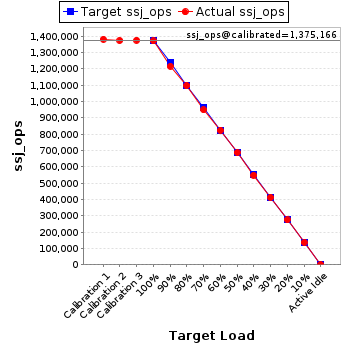

Graph of results
See the Host Performance Report for additional details.
