SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant DL360 Gen11 | SPECpower_ssj2008 = 14,506 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Feb 20, 2024 |
| Hardware Availability: | Feb-2024 | Software Availability: | Oct-2023 | Publication: | Mar 12, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

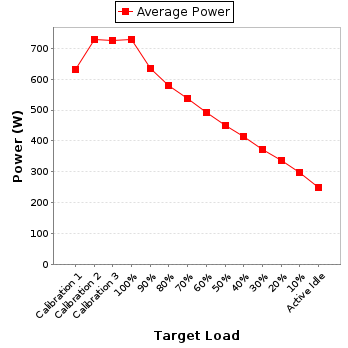

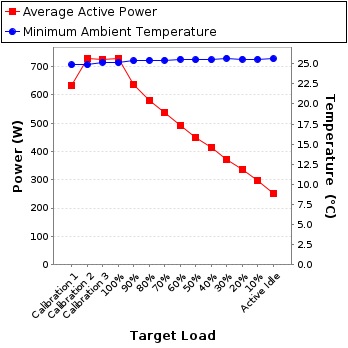

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 632 | 24.9 |
| Calibration 2 | 726 | 24.9 |
| Calibration 3 | 725 | 25.2 |
| 100% | 729 | 25.1 |
| 90% | 635 | 25.4 |
| 80% | 580 | 25.4 |
| 70% | 537 | 25.4 |
| 60% | 492 | 25.6 |
| 50% | 450 | 25.5 |
| 40% | 413 | 25.5 |
| 30% | 373 | 25.7 |
| 20% | 335 | 25.6 |
| 10% | 297 | 25.6 |
| Active Idle | 250 | 25.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91GC21887 |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-HG6N6-60-1 |
| Date of Calibration: | 04-Aug-2023 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | SUT Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 210 | 300.0 | 3.05 | 5.0 | 0.993 | 632 | 0.4% |
| Calibration 2 | 210 | 300.0 | 3.48 | 5.0 | 0.994 | 726 | 0.4% |
| Calibration 3 | 210 | 300.0 | 3.47 | 5.0 | 0.994 | 725 | 0.4% |
| 100% | 210 | 300.0 | 3.49 | 5.0 | 0.994 | 729 | 0.4% |
| 90% | 210 | 300.0 | 3.04 | 5.0 | 0.993 | 635 | 0.4% |
| 80% | 210 | 300.0 | 2.78 | 5.0 | 0.993 | 580 | 0.4% |
| 70% | 210 | 300.0 | 2.58 | 5.0 | 0.992 | 537 | 0.5% |
| 60% | 210 | 300.0 | 2.36 | 5.0 | 0.991 | 492 | 0.5% |
| 50% | 210 | 300.0 | 2.20 | 5.0 | 0.972 | 450 | 0.5% |
| 40% | 210 | 300.0 | 2.02 | 5.0 | 0.975 | 413 | 0.6% |
| 30% | 210 | 300.0 | 1.81 | 5.0 | 0.980 | 373 | 0.6% |
| 20% | 210 | 300.0 | 1.65 | 2.0 | 0.965 | 335 | 0.4% |
| 10% | 210 | 300.0 | 1.45 | 2.0 | 0.973 | 297 | 0.4% |
| Active Idle | 210 | 300.0 | 1.23 | 2.0 | 0.971 | 250 | 0.4% |
