SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant DL360 Gen11 | SPECpower_ssj2008 = 14,736 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Feb 23, 2024 |
| Hardware Availability: | Feb-2024 | Software Availability: | Oct-2023 | Publication: | Mar 12, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

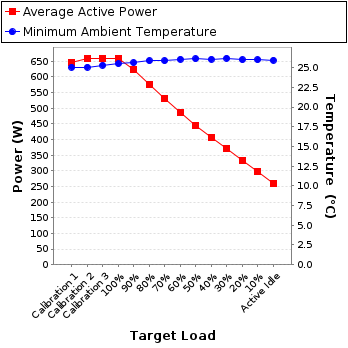

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 647 | 25.1 |
| Calibration 2 | 660 | 25.1 |
| Calibration 3 | 658 | 25.3 |
| 100% | 659 | 25.5 |
| 90% | 624 | 25.6 |
| 80% | 574 | 25.9 |
| 70% | 530 | 25.9 |
| 60% | 487 | 26.1 |
| 50% | 445 | 26.1 |
| 40% | 408 | 26.1 |
| 30% | 370 | 26.2 |
| 20% | 333 | 26.0 |
| 10% | 298 | 26.0 |
| Active Idle | 260 | 25.9 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91GC21887 |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-HG6N6-60-1 |
| Date of Calibration: | 04-Aug-2023 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | SUT Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 211 | 300.0 | 3.09 | 5.0 | 0.993 | 647 | 0.4% |
| Calibration 2 | 210 | 300.0 | 3.16 | 5.0 | 0.993 | 660 | 0.4% |
| Calibration 3 | 210 | 300.0 | 3.15 | 5.0 | 0.993 | 658 | 0.4% |
| 100% | 210 | 300.0 | 3.16 | 5.0 | 0.993 | 659 | 0.4% |
| 90% | 210 | 300.0 | 2.98 | 5.0 | 0.994 | 624 | 0.4% |
| 80% | 210 | 300.0 | 2.75 | 5.0 | 0.993 | 574 | 0.4% |
| 70% | 210 | 300.0 | 2.54 | 5.0 | 0.992 | 530 | 0.5% |
| 60% | 210 | 300.0 | 2.34 | 5.0 | 0.990 | 487 | 0.5% |
| 50% | 210 | 300.0 | 2.17 | 5.0 | 0.975 | 445 | 0.5% |
| 40% | 210 | 300.0 | 1.99 | 5.0 | 0.975 | 408 | 0.6% |
| 30% | 210 | 300.0 | 1.80 | 2.0 | 0.976 | 370 | 0.4% |
| 20% | 210 | 300.0 | 1.64 | 2.0 | 0.965 | 333 | 0.4% |
| 10% | 210 | 300.0 | 1.46 | 2.0 | 0.973 | 298 | 0.4% |
| Active Idle | 210 | 300.0 | 1.27 | 2.0 | 0.974 | 260 | 0.4% |
