Supermicro SuperServer ARS-221GL-NR ssj_ops@100% = 86,930
Test Sponsor: Infobell IT Solutions Pvt. Ltd. SPEC License #: 6723 Test Method: Single Node
Tested By: Infobell IT Solutions Pvt. Ltd. Test Location: San Jose, CA, USA Test Date: May 3, 2024
Hardware Availability: May-2024 Software Availability: Feb-2024 Publication: Jul 10, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,079
Calibration 2     86,842
Calibration 3     86,209
ssj_ops@calibrated=86,526
100% 100.5% 86,526 86,930
90% 88.9% 77,873 76,905
80% 79.1% 69,220 68,481
70% 69.1% 60,568 59,771
60% 60.0% 51,915 51,941
50% 50.0% 43,263 43,288
40% 40.2% 34,610 34,768
30% 30.0% 25,958 25,954
20% 19.4% 17,305 16,802
10% 10.1% 8,653 8,700
Active Idle   0 0

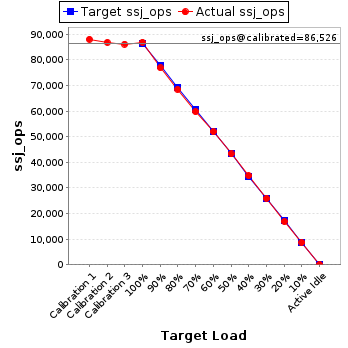

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Supermicro
Model: SuperServer ARS-221GL-NR
Form Factor: 1U
CPU Name: Grace CPU Superchip
CPU Characteristics: 144-Core, 3.4 GHz, 228 MB L3 Cache
CPU Frequency (MHz): 3400
CPU(s) Enabled: 144 cores, 1 chip, 144 cores/chip
Hardware Threads: 144 (1 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 228 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 480
# and size of DIMM: 0 x 0 GB
Memory Details: 2 x 240 GB on chip
Power Supply Quantity and Rating (W): 2 x 1800
Power Supply Details: P/N: PWS-2K09F-1R
Disk Drive: 2 x 3.84TB E1.S NVMe SSD (SAMSUNG MZTL23T8HCLS-00A07)
Disk Controller: Integrated controller
# and type of Network Interface Cards (NICs) Installed: 1 x 1Gbps with Intel Corporation Ethernet Controller X550 (rev 01)
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Ubuntu 22.04
OS Version: Kernel 5.15.0-33-generic
Filesystem: xfs
JVM Vendor: OpenJDK
JVM Version: OpenJDK 64-Bit Server VM (build 17.0.2+8-86, mixed mode, sharing)
JVM Command-line Options: -server -Xms1500m -Xmx1500m -Xmn1300m -XX:NewRatio=2 -XX:+UseParallelGC -XX:TargetSurvivorRatio=90 -XX:FreqInlineSize=2000 -XX:InitialTenuringThreshold=12 -XX:MaxInlineSize=35 -XX:SurvivorRatio=30 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=1 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseTransparentHugePages -XX:+UseBiasedLocking -XX:InlineSmallCode=1000 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap
JVM Affinity: for each i=1-144 {numactl --physcpubind=$(i-1) --localalloc }
JVM Instances: 144
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 1.1a
Management Firmware Version: 01.02.26
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 6,405,824 1,494
Payment 6,405,820
Order Status 640,583
Delivery 640,582
Stock Level 640,583
Customer Report 6,405,819
Calibration 2 New Order 6,315,810 1,494
Payment 6,315,812
Order Status 631,581
Delivery 631,582
Stock Level 631,581
Customer Report 6,315,812
Calibration 3 New Order 6,269,767 1,494
Payment 6,269,767
Order Status 626,977
Delivery 626,977
Stock Level 626,977
Customer Report 6,269,768
100% 100.5% New Order 6,322,166 1,494
Payment 6,322,167
Order Status 632,217
Delivery 632,217
Stock Level 632,216
Customer Report 6,322,163
90% 88.9% New Order 5,593,110 1,494
Payment 5,593,106
Order Status 559,311
Delivery 559,310
Stock Level 559,312
Customer Report 5,593,107
80% 79.1% New Order 4,980,458 1,494
Payment 4,980,452
Order Status 498,045
Delivery 498,046
Stock Level 498,046
Customer Report 4,980,457
70% 69.1% New Order 4,347,001 1,494
Payment 4,347,003
Order Status 434,701
Delivery 434,701
Stock Level 434,700
Customer Report 4,347,000
60% 60.0% New Order 3,777,552 1,494
Payment 3,777,555
Order Status 377,755
Delivery 377,755
Stock Level 377,755
Customer Report 3,777,554
50% 50.0% New Order 3,148,241 1,494
Payment 3,148,234
Order Status 314,823
Delivery 314,825
Stock Level 314,823
Customer Report 3,148,239
40% 40.2% New Order 2,528,588 1,494
Payment 2,528,585
Order Status 252,858
Delivery 252,859
Stock Level 252,858
Customer Report 2,528,584
30% 30.0% New Order 1,887,577 1,494
Payment 1,887,575
Order Status 188,758
Delivery 188,757
Stock Level 188,758
Customer Report 1,887,575
20% 19.4% New Order 1,221,997 1,494
Payment 1,221,998
Order Status 122,199
Delivery 122,199
Stock Level 122,200
Customer Report 1,221,998
10% 10.1% New Order 632,755 1,494
Payment 632,754
Order Status 63,276
Delivery 63,274
Stock Level 63,276
Customer Report 632,752
Active Idle New Order 0 1,494
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
