Supermicro SuperServer ARS-221GL-NR ssj_ops@100% = 84,367
Test Sponsor: Infobell IT Solutions Pvt. Ltd. SPEC License #: 6723 Test Method: Single Node
Tested By: Infobell IT Solutions Pvt. Ltd. Test Location: San Jose, CA, USA Test Date: May 3, 2024
Hardware Availability: May-2024 Software Availability: Feb-2024 Publication: Jul 10, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,723
Calibration 2     85,462
Calibration 3     85,291
ssj_ops@calibrated=85,376
100% 98.8% 85,376 84,367
90% 88.9% 76,839 75,911
80% 80.4% 68,301 68,654
70% 70.1% 59,764 59,844
60% 60.1% 51,226 51,335
50% 49.8% 42,688 42,521
40% 40.9% 34,151 34,950
30% 30.2% 25,613 25,784
20% 20.2% 17,075 17,288
10% 10.1% 8,538 8,617
Active Idle   0 0

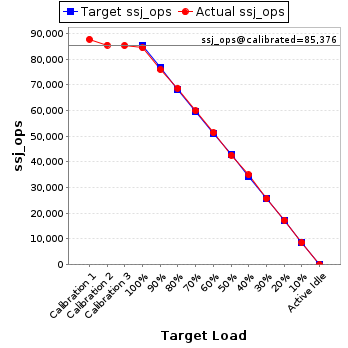

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Supermicro
Model: SuperServer ARS-221GL-NR
Form Factor: 1U
CPU Name: Grace CPU Superchip
CPU Characteristics: 144-Core, 3.4 GHz, 228 MB L3 Cache
CPU Frequency (MHz): 3400
CPU(s) Enabled: 144 cores, 1 chip, 144 cores/chip
Hardware Threads: 144 (1 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 228 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 480
# and size of DIMM: 0 x 0 GB
Memory Details: 2 x 240 GB on chip
Power Supply Quantity and Rating (W): 2 x 1800
Power Supply Details: P/N: PWS-2K09F-1R
Disk Drive: 2 x 3.84TB E1.S NVMe SSD (SAMSUNG MZTL23T8HCLS-00A07)
Disk Controller: Integrated controller
# and type of Network Interface Cards (NICs) Installed: 1 x 1Gbps with Intel Corporation Ethernet Controller X550 (rev 01)
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Ubuntu 22.04
OS Version: Kernel 5.15.0-33-generic
Filesystem: xfs
JVM Vendor: OpenJDK
JVM Version: OpenJDK 64-Bit Server VM (build 17.0.2+8-86, mixed mode, sharing)
JVM Command-line Options: -server -Xms1500m -Xmx1500m -Xmn1300m -XX:NewRatio=2 -XX:+UseParallelGC -XX:TargetSurvivorRatio=90 -XX:FreqInlineSize=2000 -XX:InitialTenuringThreshold=12 -XX:MaxInlineSize=35 -XX:SurvivorRatio=30 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=1 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseTransparentHugePages -XX:+UseBiasedLocking -XX:InlineSmallCode=1000 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap
JVM Affinity: for each i=1-144 {numactl --physcpubind=$(i-1) --localalloc }
JVM Instances: 144
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 1.1a
Management Firmware Version: 01.02.26
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 6,379,959 1,494
Payment 6,379,964
Order Status 637,995
Delivery 637,996
Stock Level 637,997
Customer Report 6,379,964
Calibration 2 New Order 6,215,458 1,494
Payment 6,215,457
Order Status 621,545
Delivery 621,545
Stock Level 621,546
Customer Report 6,215,457
Calibration 3 New Order 6,202,964 1,494
Payment 6,202,962
Order Status 620,295
Delivery 620,297
Stock Level 620,297
Customer Report 6,202,964
100% 98.8% New Order 6,135,837 1,494
Payment 6,135,842
Order Status 613,585
Delivery 613,585
Stock Level 613,583
Customer Report 6,135,841
90% 88.9% New Order 5,520,797 1,494
Payment 5,520,797
Order Status 552,080
Delivery 552,080
Stock Level 552,079
Customer Report 5,520,800
80% 80.4% New Order 4,993,038 1,494
Payment 4,993,037
Order Status 499,304
Delivery 499,303
Stock Level 499,303
Customer Report 4,993,038
70% 70.1% New Order 4,352,305 1,494
Payment 4,352,304
Order Status 435,230
Delivery 435,230
Stock Level 435,230
Customer Report 4,352,305
60% 60.1% New Order 3,733,460 1,494
Payment 3,733,462
Order Status 373,346
Delivery 373,347
Stock Level 373,346
Customer Report 3,733,460
50% 49.8% New Order 3,092,467 1,494
Payment 3,092,467
Order Status 309,247
Delivery 309,247
Stock Level 309,247
Customer Report 3,092,468
40% 40.9% New Order 2,541,818 1,494
Payment 2,541,819
Order Status 254,181
Delivery 254,183
Stock Level 254,182
Customer Report 2,541,817
30% 30.2% New Order 1,875,211 1,494
Payment 1,875,212
Order Status 187,521
Delivery 187,522
Stock Level 187,521
Customer Report 1,875,213
20% 20.2% New Order 1,257,296 1,494
Payment 1,257,294
Order Status 125,731
Delivery 125,729
Stock Level 125,731
Customer Report 1,257,295
10% 10.1% New Order 626,666 1,494
Payment 626,666
Order Status 62,667
Delivery 62,667
Stock Level 62,667
Customer Report 626,667
Active Idle New Order 0 1,494
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
