Quanta Cloud Technology QuantaGrid D55Q-2U SPECpower_ssj2008 = 21,157 overall ssj_ops/watt
Test Sponsor: Quanta Computer Inc. SPEC License #: 9050 Test Method: Single Node
Tested By: Quanta Computer Inc. Test Location: Taoyuan, TW, R.O.C Test Date: Aug 29, 2024
Hardware Availability: Sep-2024 Software Availability: Apr-2024 Publication: Oct 3, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.7% 17,524,136 681 25,735
90% 90.0% 15,824,359 586 27,024
80% 79.9% 14,053,125 542 25,934
70% 70.0% 12,310,643 490 25,128
60% 60.0% 10,544,879 443 23,795
50% 50.0% 8,792,306 404 21,745
40% 40.0% 7,031,451 368 19,113
30% 30.0% 5,270,235 320 16,446
20% 20.0% 3,513,666 287 12,228
10% 10.1% 1,766,862 258 6,841
Active Idle 0 188 0
∑ssj_ops / ∑power = 21,157
Graph of results
System Under Test
Set: 'D55Q-2U'
Set Identifier: D55Q-2U
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Quanta Cloud Technology
Model: QuantaGrid D55Q-2U
Form Factor: 2U
CPU Name: Intel Xeon 6780E 2.2 GHz
CPU Characteristics: 144 core, 2.2GHz, 108MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 288 cores, 2 chips, 144 cores/chip
Hardware Threads: 288 (1 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 64 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per 4 cores
Tertiary Cache: 108 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 512
# and size of DIMM: 16 x 32768 MB
Memory Details: 32GB 1Rx4 PC5-6400B-RA0; slots A0, B0, C0, D0, E0, F0, G0 ,H0 populated,Quanta P/N:ATR6XAHR570
Power Supply Quantity and Rating (W): 1 x 1600
Power Supply Details: GreatWall CRP1600C2
Disk Drive: 1 x 960GB NVMe SSD
Disk Controller: Integrated PCI-e controller
# and type of Network Interface Cards (NICs) Installed: 1 x Broadcom Ethernet Controller N210tp OCP3.0 10G, 2-port,Quanta P/N:ADPC9574021
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power save plan in OS
Operating System (OS): Microsoft Windows Server 2022
OS Version: Version 21H2 (OS Build 20348.2527)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM(build 17.0.10+11-LTS-240, mixed mode, sharing)
JVM Command-line Options: -server -Xmn1825m -Xms1995m -Xmx1995m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelGC -XX:UseAVX=0 -XX:BiasedLockingStartupDelay=30000 -XX:-UseAdaptiveSizePolicy -XX:+UseBiasedLocking -XX:+UseOptoBiasInlining -XX:+UseFastStosb -XX:MaxInlineLevel=9 -XX:MaxVectorSize=32 -XX:-UseSharedSpaces -XX:-UseXMMForObjInit -XX:-UseBASE64Intrinsics -XX:+OptimizeFill -XX:+CriticalJNINatives
JVM Affinity: start /NODE [0,1,2,3,4,5] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000,0xC0000,0x300000,0xC00000,0x3000000,0xC000000,0x30000000,0xC0000000,...0x300000000000,0xC00000000000]
JVM Instances: 144
JVM Initial Heap (MB): 1995
JVM Maximum Heap (MB): 1995
JVM Address Bits: 64
Boot Firmware Version: 3A03.QCT001
Management Firmware Version: 3.03
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows (KB5039227)
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Quanta Computer Inc.
Model: S99
CPU Description: Intel Xeon CPU X5670, 2.93Ghz
Memory amount (GB): 88
Software
Operating System (OS): Microsoft Windows Server 2012 Datacenter 64-bit
JVM Vendor: Oracle Corporation
JVM Version: Hotspot(TM) Server VM (build 17.0.9+11-LTS-201, mixed mode, sharing)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT310
Serial Number: C2PM12064V
Connectivity: USB
Input Connection: Default
Metrology Institute: NML (National Measurement Laboratory)
Accredited by: SGS
Calibration Label: ECR2416369
Date of Calibration: 08-May-2024
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.0-a4047d62-20231205
Setup Description: Connected to power supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/T
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 25 mm in front of SUT main airflow intake
Notes
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 681 22.7
90% 586 22.8
80% 542 22.8
70% 490 22.8
60% 443 22.7
50% 404 22.6
40% 368 22.6
30% 320 22.6
20% 287 22.5
10% 258 22.5
Active Idle 188 22.4
Line Standard Minimum Temperature (°C) Elevation (m)
220V / 60 Hz / 1 phase / 2 wires 22.4 250
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     17,684,323
Calibration 2     17,578,261
Calibration 3     17,580,784
ssj_ops@calibrated=17,579,523
100% 99.7% 17,579,523 17,524,136
90% 90.0% 15,821,570 15,824,359
80% 79.9% 14,063,618 14,053,125
70% 70.0% 12,305,666 12,310,643
60% 60.0% 10,547,714 10,544,879
50% 50.0% 8,789,761 8,792,306
40% 40.0% 7,031,809 7,031,451
30% 30.0% 5,273,857 5,270,235
20% 20.0% 3,515,905 3,513,666
10% 10.1% 1,757,952 1,766,862
Active Idle   0 0

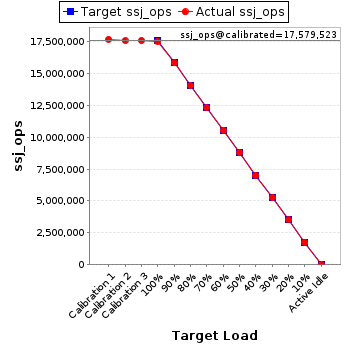

Graph of results
See the Host Performance Report for additional details.
