SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| Supermicro Hyper A+ Server AS-2126HS-TN | SPECpower_ssj2008 = 35,275 overall ssj_ops/watt | ||||
| Test Sponsor: | Supermicro | SPEC License #: | 1176 | Test Method: | Single Node |
| Tested By: | Supermicro | Test Location: | San Jose, CA, USA | Test Date: | Sep 12, 2024 |
| Hardware Availability: | Oct-2024 | Software Availability: | Sep-2024 | Publication: | Oct 10, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

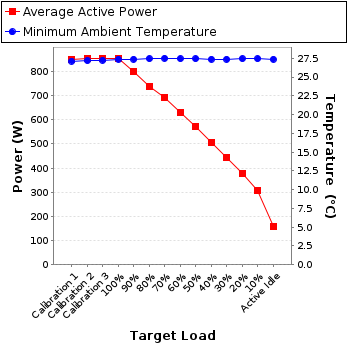

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 848 | 27.1 |
| Calibration 2 | 854 | 27.2 |
| Calibration 3 | 854 | 27.2 |
| 100% | 854 | 27.4 |
| 90% | 798 | 27.4 |
| 80% | 738 | 27.4 |
| 70% | 690 | 27.5 |
| 60% | 631 | 27.4 |
| 50% | 571 | 27.4 |
| 40% | 508 | 27.4 |
| 30% | 443 | 27.4 |
| 20% | 378 | 27.4 |
| 10% | 309 | 27.4 |
| Active Idle | 159 | 27.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA, Inc. |
| Model: | WT310E |
| Serial Number: | C2ZG04129V |
| Connectivity: | USB2 |
| Input Connection: | Default |
| Metrology Institute: | TESCOM |
| Accredited by: | 16-May-2024 |
| Calibration Label: | T119755 |
| Date of Calibration: | 16-May-2024 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.0-a4047d62-20231205 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | iButtonLink, Inc. |
| Model: | LinkUSBi + T-Probe |
| Driver Version: | FTDI USB Serial Device 1.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 50 mm in front of SUT main intake |

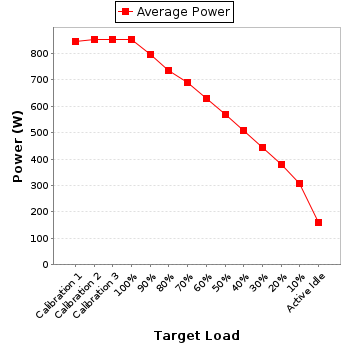

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 210 | 300.0 | 4.09 | 5.0 | 0.988 | 848 | 0.2% |
| Calibration 2 | 210 | 300.0 | 4.12 | 5.0 | 0.988 | 854 | 0.2% |
| Calibration 3 | 210 | 300.0 | 4.12 | 5.0 | 0.988 | 854 | 0.2% |
| 100% | 210 | 300.0 | 4.12 | 5.0 | 0.989 | 854 | 0.2% |
| 90% | 210 | 300.0 | 3.86 | 5.0 | 0.987 | 798 | 0.2% |
| 80% | 210 | 300.0 | 3.57 | 5.0 | 0.986 | 738 | 0.2% |
| 70% | 210 | 300.0 | 3.34 | 5.0 | 0.985 | 690 | 0.2% |
| 60% | 210 | 300.0 | 3.06 | 5.0 | 0.983 | 631 | 0.3% |
| 50% | 210 | 300.0 | 2.78 | 5.0 | 0.980 | 571 | 0.3% |
| 40% | 210 | 300.0 | 2.48 | 5.0 | 0.975 | 508 | 0.3% |
| 30% | 210 | 300.0 | 2.18 | 5.0 | 0.969 | 443 | 0.3% |
| 20% | 210 | 300.0 | 1.87 | 2.0 | 0.961 | 378 | 0.2% |
| 10% | 210 | 300.0 | 1.55 | 2.0 | 0.947 | 309 | 0.3% |
| Active Idle | 211 | 300.0 | 0.875 | 2.0 | 0.863 | 159 | 0.4% |
