SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant DL345 Gen11 | SPECpower_ssj2008 = 34,615 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Sep 23, 2024 |
| Hardware Availability: | Jan-2025 | Software Availability: | Jul-2024 | Publication: | Oct 10, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

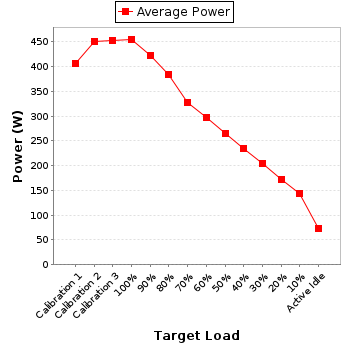

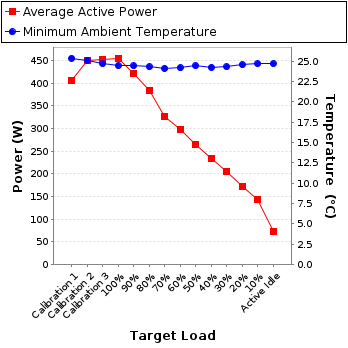

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 407 | 25.4 |
| Calibration 2 | 450 | 25.1 |
| Calibration 3 | 453 | 24.7 |
| 100% | 455 | 24.4 |
| 90% | 422 | 24.4 |
| 80% | 383 | 24.3 |
| 70% | 327 | 24.1 |
| 60% | 297 | 24.2 |
| 50% | 265 | 24.4 |
| 40% | 235 | 24.2 |
| 30% | 204 | 24.3 |
| 20% | 173 | 24.6 |
| 10% | 143 | 24.7 |
| Active Idle | 72.8 | 24.7 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT310 |
| Serial Number: | C2QM22001V |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-E8J0L-20-1 |
| Date of Calibration: | 25-Jan-2024 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.0-a4047d62-20231205 |
| Setup Description: | SUT Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 206 | 300.0 | 2.03 | 5.0 | 0.980 | 407 | 0.5% |
| Calibration 2 | 206 | 300.0 | 2.22 | 5.0 | 0.984 | 450 | 0.5% |
| Calibration 3 | 206 | 300.0 | 2.24 | 5.0 | 0.984 | 453 | 0.5% |
| 100% | 205 | 300.0 | 2.25 | 5.0 | 0.984 | 455 | 0.5% |
| 90% | 207 | 300.0 | 2.08 | 5.0 | 0.981 | 422 | 0.5% |
| 80% | 207 | 300.0 | 1.90 | 5.0 | 0.976 | 383 | 0.5% |
| 70% | 208 | 300.0 | 1.62 | 2.0 | 0.972 | 327 | 0.3% |
| 60% | 207 | 300.0 | 1.49 | 2.0 | 0.968 | 297 | 0.4% |
| 50% | 207 | 300.0 | 1.34 | 2.0 | 0.959 | 265 | 0.4% |
| 40% | 206 | 300.0 | 1.20 | 2.0 | 0.952 | 235 | 0.4% |
| 30% | 206 | 300.0 | 1.05 | 2.0 | 0.941 | 204 | 0.5% |
| 20% | 207 | 300.0 | 0.908 | 2.0 | 0.920 | 173 | 0.5% |
| 10% | 207 | 300.0 | 0.774 | 1.0 | 0.892 | 143 | 0.4% |
| Active Idle | 207 | 300.0 | 0.492 | 1.0 | 0.715 | 72.8 | 0.6% |
