SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant DL325 Gen11 | SPECpower_ssj2008 = 31,784 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Sep 23, 2024 |
| Hardware Availability: | Jan-2025 | Software Availability: | Jul-2024 | Publication: | Oct 10, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

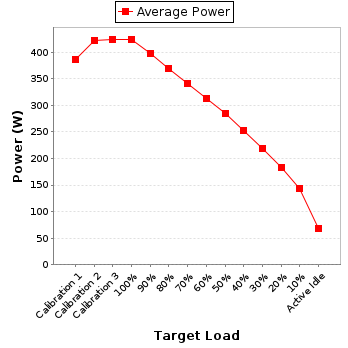

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 387 | 20.2 |
| Calibration 2 | 423 | 20.8 |
| Calibration 3 | 425 | 21.6 |
| 100% | 423 | 21.1 |
| 90% | 397 | 20.8 |
| 80% | 370 | 20.9 |
| 70% | 341 | 20.2 |
| 60% | 314 | 20.1 |
| 50% | 285 | 20.7 |
| 40% | 253 | 20.3 |
| 30% | 220 | 20.2 |
| 20% | 184 | 20.9 |
| 10% | 143 | 20.9 |
| Active Idle | 67.7 | 20.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT310E |
| Serial Number: | C2SF14001V |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-E8J0L-40-1 |
| Date of Calibration: | 25-Jan-2024 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.0-a4047d62-20231205 |
| Setup Description: | SUT Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 209 | 300.0 | 1.91 | 5.0 | 0.974 | 387 | 0.3% |
| Calibration 2 | 209 | 300.0 | 2.07 | 5.0 | 0.978 | 423 | 0.3% |
| Calibration 3 | 209 | 300.0 | 2.08 | 5.0 | 0.978 | 425 | 0.3% |
| 100% | 209 | 300.0 | 2.08 | 5.0 | 0.978 | 423 | 0.3% |
| 90% | 209 | 300.0 | 1.95 | 2.0 | 0.975 | 397 | 0.2% |
| 80% | 209 | 300.0 | 1.82 | 2.0 | 0.972 | 370 | 0.2% |
| 70% | 209 | 300.0 | 1.68 | 2.0 | 0.968 | 341 | 0.2% |
| 60% | 209 | 300.0 | 1.56 | 2.0 | 0.963 | 314 | 0.3% |
| 50% | 209 | 300.0 | 1.43 | 2.0 | 0.956 | 285 | 0.3% |
| 40% | 209 | 300.0 | 1.28 | 2.0 | 0.945 | 253 | 0.3% |
| 30% | 210 | 300.0 | 1.12 | 2.0 | 0.932 | 220 | 0.3% |
| 20% | 210 | 300.0 | 0.963 | 2.0 | 0.909 | 184 | 0.3% |
| 10% | 209 | 300.0 | 0.793 | 1.0 | 0.861 | 143 | 0.3% |
| Active Idle | 209 | 300.0 | 0.510 | 1.0 | 0.635 | 67.7 | 0.5% |
