Hewlett Packard Enterprise ProLiant DL325 Gen11 SPECpower_ssj2008 = 30,342 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Sep 21, 2024
Hardware Availability: Jan-2025 Software Availability: Jul-2024 Publication: Oct 10, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.5% 16,546,832 420 39,442
90% 89.9% 14,957,964 394 37,927
80% 79.8% 13,276,732 367 36,165
70% 68.3% 11,365,595 334 34,021
60% 58.7% 9,769,988 308 31,703
50% 50.0% 8,320,579 289 28,791
40% 40.0% 6,661,616 257 25,951
30% 30.0% 4,988,613 223 22,401
20% 20.0% 3,331,510 188 17,677
10% 10.0% 1,662,858 148 11,226
Active Idle 0 67.0 0
∑ssj_ops / ∑power = 30,342
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL325 Gen11
Form Factor: 1U
CPU Name: AMD EPYC 9845 2.1 GHz
CPU Characteristics: 160-Core, 2.10 GHz 320 MB L3 Cache(Max. Boost Clock Up to 3.7 GHz)
CPU Frequency (MHz): 2100
CPU(s) Enabled: 160 cores, 1 chip, 160 cores/chip
Hardware Threads: 320 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 320 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 16 GB 1Rx8 PC5-6400B-RD1-1211-XT; all DIMM slots populated
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit (P38995-B21)
Disk Drive: 1 x HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD (P40497-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I350-T4 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE (P08449-B21)
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2022 Datacenter
OS Version: Version 21H2 (OS Build 20348.2655)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.12+8-LTS-286, mixed mode, sharing)
JVM Command-line Options: -server -Xms1500m -Xmx1500m -Xmn1300m -XX:+UseParallelGC -XX:ParallelGCThreads=4 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap
JVM Affinity: start /NODE [0-9] /AFFINITY [0xF,0xF0,0xF00,0xF000,0xF0000,0xF00000,0xF000000,0xF0000000]
JVM Instances: 80
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: A56 v2.10 (09/11/2024)
Management Firmware Version: 1.62 Aug 09 2024
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB5018419, HPE ProLiant Agentless Management Service for Windows X64
Boot Firmware Settings

BIOS Platform Configuration (RBSU):

Management Firmware Settings
See SUT Notes
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant DL360p Gen8
CPU Description: Intel Xeon E5-2660 v3
Memory amount (GB): 128
Software
Operating System (OS): Windows Server 2012 R2 Standard
JVM Vendor: Oracle Corporation
JVM Version: 1.8.0_251-b08
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT310E
Serial Number: C2SF14001V
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-E8J0L-40-1
Date of Calibration: 25-Jan-2024
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.0-a4047d62-20231205
Setup Description: SUT Power Supply 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 420 22.4
90% 394 22.0
80% 367 22.1
70% 334 22.9
60% 308 22.4
50% 289 22.4
40% 257 23.2
30% 223 22.6
20% 188 22.7
10% 148 23.6
Active Idle 67.0 22.8
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 22.0 132
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     17,077,080
Calibration 2     16,650,255
Calibration 3     16,624,459
ssj_ops@calibrated=16,637,357
100% 99.5% 16,637,357 16,546,832
90% 89.9% 14,973,621 14,957,964
80% 79.8% 13,309,885 13,276,732
70% 68.3% 11,646,150 11,365,595
60% 58.7% 9,982,414 9,769,988
50% 50.0% 8,318,678 8,320,579
40% 40.0% 6,654,943 6,661,616
30% 30.0% 4,991,207 4,988,613
20% 20.0% 3,327,471 3,331,510
10% 10.0% 1,663,736 1,662,858
Active Idle   0 0

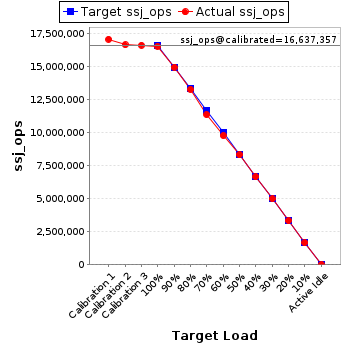

Graph of results
See the Host Performance Report for additional details.
