SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| Lenovo Global Technology Think System SR665 V3 | SPECpower_ssj2008 = 42,312 overall ssj_ops/watt | ||||
| Test Sponsor: | Lenovo Global Technology | SPEC License #: | 9017 | Test Method: | Single Node |
| Tested By: | Lenovo Global Technology | Test Location: | Beijing, China | Test Date: | Nov 4, 2024 |
| Hardware Availability: | Feb-2025 | Software Availability: | Sep-2024 | Publication: | Nov 19, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

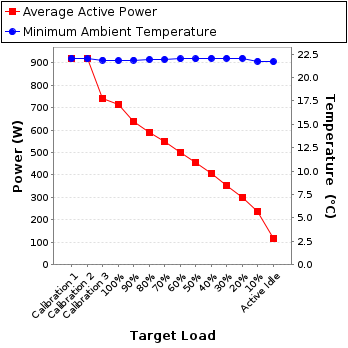

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 919 | 22.1 |
| Calibration 2 | 920 | 22.0 |
| Calibration 3 | 740 | 21.9 |
| 100% | 712 | 21.8 |
| 90% | 637 | 21.9 |
| 80% | 588 | 21.9 |
| 70% | 547 | 21.9 |
| 60% | 502 | 22.0 |
| 50% | 455 | 22.0 |
| 40% | 407 | 22.1 |
| 30% | 355 | 22.1 |
| 20% | 299 | 22.1 |
| 10% | 238 | 21.8 |
| Active Idle | 115 | 21.7 |

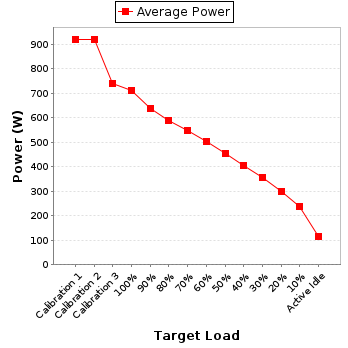

| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA, Inc. |
| Model: | WT310E |
| Serial Number: | C3UD17023E |
| Connectivity: | USB |
| Input Connection: | Default |
| Metrology Institute: | China National Accreditation Service for Conformity Assessment (CNAS) |
| Accredited by: | CHINA CEPEREI LABORATORY CALIBRATION & TESTING CENTRE |
| Calibration Label: | 1GA24011968-0002 |
| Date of Calibration: | 10-Oct-2024 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.0-a4047d62-20231205 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International, Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 50 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 219 | 300.0 | 4.23 | 10.0 | 0.994 | 919 | 0.3% |
| Calibration 2 | 219 | 300.0 | 4.23 | 10.0 | 0.994 | 920 | 0.3% |
| Calibration 3 | 219 | 300.0 | 3.41 | 10.0 | 0.991 | 740 | 0.3% |
| 100% | 219 | 300.0 | 3.28 | 10.0 | 0.990 | 712 | 0.3% |
| 90% | 219 | 300.0 | 2.95 | 10.0 | 0.987 | 637 | 0.4% |
| 80% | 219 | 300.0 | 2.72 | 5.0 | 0.986 | 588 | 0.3% |
| 70% | 219 | 300.0 | 2.54 | 5.0 | 0.984 | 547 | 0.3% |
| 60% | 219 | 300.0 | 2.33 | 5.0 | 0.980 | 502 | 0.3% |
| 50% | 220 | 300.0 | 2.13 | 5.0 | 0.976 | 455 | 0.3% |
| 40% | 220 | 300.0 | 1.91 | 5.0 | 0.970 | 407 | 0.3% |
| 30% | 220 | 300.0 | 1.68 | 5.0 | 0.961 | 355 | 0.4% |
| 20% | 220 | 300.0 | 1.44 | 5.0 | 0.945 | 299 | 0.4% |
| 10% | 220 | 300.0 | 1.15 | 5.0 | 0.938 | 238 | 0.5% |
| Active Idle | 220 | 300.0 | 0.620 | 5.0 | 0.842 | 115 | 0.8% |
