xFusion Digital Technologies Co., Ltd FusionServer 2288H V7 SPECpower_ssj2008 = 20,494 overall ssj_ops/watt
Test Sponsor: xFusion Digital Technologies Co., Ltd SPEC License #: 6488 Test Method: Single Node
Tested By: xFusion Digital Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Dec 19, 2024
Hardware Availability: Nov-2024 Software Availability: Nov-2024 Publication: Mar 5, 2025
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.6% 17,801,687 827 21,525
90% 89.9% 16,053,211 680 23,604
80% 80.0% 14,295,219 581 24,620
70% 70.0% 12,503,045 493 25,342
60% 60.0% 10,717,381 442 24,235
50% 50.0% 8,935,787 390 22,922
40% 40.0% 7,150,721 357 20,020
30% 30.0% 5,357,408 330 16,254
20% 20.0% 3,572,661 289 12,345
10% 10.0% 1,788,734 241 7,419
Active Idle 0 160 0
∑ssj_ops / ∑power = 20,494

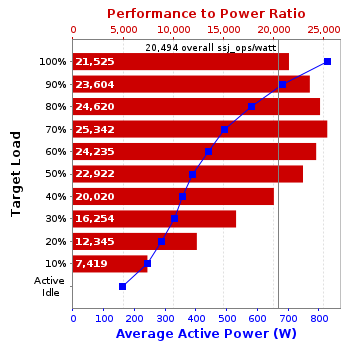

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Here is a comment for this set.
Hardware
Hardware Vendor: xFusion Digital Technologies Co., Ltd
Model: FusionServer 2288H V7
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8592+
CPU Characteristics: 64-Core, 1.90GHz, Intel Turbo Boost Technology up to 3.90GHz, 320 MB L3 Cache
CPU Frequency (MHz): 1900
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
Tertiary Cache: 320 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 512
# and size of DIMM: 16 x 32 GB
Memory Details: 32GB 2Rx8 PC5-5600B-R; slot DIMM000, DIMM010, DIMM020, DIMM030, DIMM040, DIMM050, DIMM060, DIMM070, DIMM100, DIMM110, DIMM120, DIMM130, DIMM140, DIMM150, DIMM160, DIMM170 populated
Power Supply Quantity and Rating (W): 2 x 900
Power Supply Details: xFusion PAC900S12
Disk Drive: 1 x 960GB SSD 2.5" SATA
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode enabled in OS
Operating System (OS): Microsoft Windows Server 2025 Datacenter
OS Version: 24H2(OS Build 26100.1742)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.9+11-LTS-201, mixed mode, sharing)
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:LargePageSizeInBytes=2m -XX:+UseLargePages -XX:InlineSmallCode=1500 -XX:UseAVX=0 -XX:+AggressiveHeap -XX:ParallelGCThreads=2 -XX:+UseParallelGC -XX:+UseBiasedLocking -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill
JVM Affinity: start /NODE[0-3] /AFFINITY [0x3, 0xC, 0x30, 0xC0, 0x300, 0xC00, 0x3000, 0xC000, 0x30000, 0xC0000, 0x300000, 0xC00000, 0x3000000, 0xC000000, 0x30000000, 0xC0000000, 0x300000000, 0xC00000000, 0x3000000000, 0xC000000000, 0x30000000000, 0xC0000000000, 0x300000000000, 0xC00000000000, 0x3000000000000, 0xC000000000000, 0x30000000000000, 0xC0000000000000, 0x300000000000000, 0xC00000000000000, 0x3000000000000000, 0xC000000000000000]
JVM Instances: 128
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: 01.01.06.06
Management Firmware Version: 3.07.03.39
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: none
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Controller System
Hardware
Hardware Vendor: xFusion Digital Technologies Co., Ltd
Model: FusionServer RH1288 V3
CPU Description: 2 x E5-2637 V4
Memory amount (GB): 112
Software
Operating System (OS): Windows Server 2019 Standard (64-bit)
JVM Vendor: Oracle Corporation
JVM Version: ava HotSpot(TM) 64-Bit Server VM (build 17.0.9+11-LTS-201, mixed mode, sharing)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA Inc.
Model: WT210
Serial Number: 91M838229
Connectivity: RS-232
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: 24BC8740B4E25737E0
Date of Calibration: 29-Jul-2024
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Temperature@lert
Model: TM-STD30
Driver Version: 4.2.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: Use a 2 meters USB extension cable to connect to the controller. And placed in front the main airflow inlet of the SUT less than 50mm.
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 827 23.9
90% 680 23.9
80% 581 24.1
70% 493 24.2
60% 442 24.1
50% 390 24.1
40% 357 23.8
30% 330 23.8
20% 289 24.1
10% 241 24.2
Active Idle 160 24.6
Line Standard Minimum Temperature (°C) Elevation (m)
220V / 50 Hz / 1 phase / 2 wires 23.8 101
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     18,199,789
Calibration 2     17,892,428
Calibration 3     17,840,776
ssj_ops@calibrated=17,866,602
100% 99.6% 17,866,602 17,801,687
90% 89.9% 16,079,942 16,053,211
80% 80.0% 14,293,282 14,295,219
70% 70.0% 12,506,622 12,503,045
60% 60.0% 10,719,961 10,717,381
50% 50.0% 8,933,301 8,935,787
40% 40.0% 7,146,641 7,150,721
30% 30.0% 5,359,981 5,357,408
20% 20.0% 3,573,320 3,572,661
10% 10.0% 1,786,660 1,788,734
Active Idle   0 0

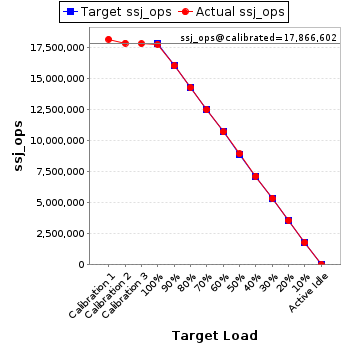

Graph of results
See the Host Performance Report for additional details.
