Hewlett Packard Enterprise ProLiant Compute ML350 Gen12 SPECpower_ssj2008 = 22,312 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Feb 3, 2025
Hardware Availability: Mar-2025 Software Availability: Oct-2024 Publication: Feb 25, 2025
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.2% 22,184,000 891 24,906
90% 89.9% 20,108,709 867 23,202
80% 80.0% 17,888,419 701 25,506
70% 70.0% 15,662,351 565 27,714
60% 60.0% 13,417,716 495 27,097
50% 49.9% 11,167,472 443 25,210
40% 40.0% 8,939,132 396 22,591
30% 30.0% 6,703,920 349 19,228
20% 20.0% 4,465,876 307 14,561
10% 10.0% 2,234,897 263 8,499
Active Idle 0 227 0
∑ssj_ops / ∑power = 22,312
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant Compute ML350 Gen12
Form Factor: Tower
CPU Name: Intel Xeon 6787P Processor 2.0 GHz
CPU Characteristics: 86 core, 2.0 GHz, 336 MB L3 Cache
CPU Frequency (MHz): 2000
CPU(s) Enabled: 172 cores, 2 chips, 86 cores/chip
Hardware Threads: 344 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
Tertiary Cache: 336 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 GB 1Rx8 PC5-6400-R; slots 1, 3, 5, 7, 10, 12, 14 & 16 on each socket
Power Supply Quantity and Rating (W): 1 x 2200
Power Supply Details: HPE 1800W-2200W Flex Slot Titanium Hot Plug Power Supply Kit 96% (P44712-B21)
Disk Drive: 1 x HPE 1.6tb Nvme High Performance Mixed Use Sff Sc U.3 Tlc Ssd
Disk Controller: Embedded SATA
# and type of Network Interface Cards (NICs) Installed: 1 x BCM 5719 1Gb 4p BASE-T OCP Adptr (P51178-B21)
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP6
OS Version: 6.4.0-150600.21-default
Filesystem: XFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 17.0.13+10-LTS-268, mixed mode)
JVM Command-line Options: -server -Xms1500m -Xmx1500m -Xmn1300m -XX:+UseBiasedLocking -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap -XX:FreqInlineSize=2500 -XX:CompileThresholdScaling=210
JVM Affinity: numactl -C $((physicalCoreId + 0)),$((physicalCoreId + 1)),$((physicalCoreId + 172)),$((physicalCoreId + 173))
JVM Instances: 86
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: U68 v1.20 (01/23/2025)
Management Firmware Version: 1.01.00 pass 142 Jan 01 2025
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings

BIOS Platform Configuration (RBSU):

Management Firmware Settings
See SUT Notes
System Under Test Notes
Controller System
Hardware
Hardware Vendor: HPE
Model: ProLiant DL360 Gen9
CPU Description: 2 x Intel Xeon E5-2660 v3
Memory amount (GB): 128
Software
Operating System (OS): Windows Server 2019
JVM Vendor: Oracle Corporation
JVM Version: 1.8.0_144-b01 (build 25.144-b01, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47168
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-H48PA-80-1
Date of Calibration: 01-Aug-2024
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.1-462c978e-20240907
Setup Description: SUT Power Supply 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 891 24.3
90% 867 25.0
80% 701 25.7
70% 565 26.2
60% 495 26.3
50% 443 26.1
40% 396 25.8
30% 349 25.5
20% 307 25.2
10% 263 24.9
Active Idle 227 24.6
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 24.3 132
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     16,777,818
Calibration 2     22,418,011
Calibration 3     22,302,252
ssj_ops@calibrated=22,360,131
100% 99.2% 22,360,131 22,184,000
90% 89.9% 20,124,118 20,108,709
80% 80.0% 17,888,105 17,888,419
70% 70.0% 15,652,092 15,662,351
60% 60.0% 13,416,079 13,417,716
50% 49.9% 11,180,066 11,167,472
40% 40.0% 8,944,052 8,939,132
30% 30.0% 6,708,039 6,703,920
20% 20.0% 4,472,026 4,465,876
10% 10.0% 2,236,013 2,234,897
Active Idle   0 0

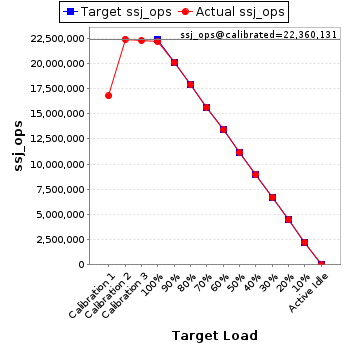

Graph of results
See the Host Performance Report for additional details.
