SPECpower_ssj2008

Hewlett Packard Enterprise ProLiant Compute DL340 Gen12			SPECpower_ssj2008 = 20,454 overall ssj_ops/watt
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Single Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Feb 4, 2025
Hardware Availability:	Mar-2025	Software Availability:	Oct-2024	Publication:	Feb 25, 2025
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	ProLiant Compute DL340 Gen12
Form Factor:	2U
CPU Name:	Intel Xeon 6787P 2.00 GHz
CPU Characteristics:	86-Core, 2.00 GHz, 336MB L3 Cache
CPU Frequency (MHz):	2000
CPU(s) Enabled:	86 cores, 1 chip, 86 cores/chip
Hardware Threads:	172 (2 / core)
CPU(s) Orderable:	1 chip
Primary Cache:	32 KB I + 48 KB D on chip per core
Secondary Cache:	2 MB I+D on chip per core
Tertiary Cache:	336 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	128
# and size of DIMM:	8 x 16384 MB
Memory Details:	8 x 16 GB 1Rx8 PC5-6400B-R
Power Supply Quantity and Rating (W):	1 x 1000
Power Supply Details:	HPE 1000W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit
Disk Drive:	1 x HPE 1.6tb Nvme High Performance Mixed Use Sff Sc U.3 Tlc Ssd
Disk Controller:	embedded SATA
# and type of Network Interface Cards (NICs) Installed:	1 x BCM 5719 1Gb 4p BASE-T OCP Adptr (P51178-B21)
NICs Enabled in Firmware / OS / Connected:	4/4/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	SUSE Linux Enterprise Server 15 SP6
OS Version:	6.4.0-150600.21-default
Filesystem:	xfs
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 17.0.13+10-LTS-268, mixed mode)
JVM Command-line Options:	-server -Xms1300m -Xmx1300m -Xmn1100m -XX:+UseBiasedLocking -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap -XX:FreqInlineSize=2500 -XX:CompileThresholdScaling=210
JVM Affinity:	numactl -C $((physicalCoreId + 0)),$((physicalCoreId + 86))
JVM Instances:	86
JVM Initial Heap (MB):	1300
JVM Maximum Heap (MB):	1300
JVM Address Bits:	64
Boot Firmware Version:	U71 v1.20 (02/04/2025)
Management Firmware Version:	1.01.00 Jan 01 2025
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	None

BIOS Platform Configuration (RBSU):

See SUT Notes

Benchmark started via ssh
SPECpower_ssj.props input.load_level.number_warehouses set to 172 due to a known inconsistency in processor reporting with this Java version
OS tunes:

kernal parameter:pcie_aspm=force pcie_aspm.policy=powersupersave intel_pstate=disable
modprobe cpufreq_conservative
cpupower frequency-set -g conservative
echo 3000000 > /sys/devices/system/cpu/cpufreq/conservative/sampling_rate
echo 92 > /sys/devices/system/cpu/cpufreq/conservative/up_threshold
echo 1 > /sys/devices/system/cpu/cpufreq/conservative/freq_step
echo 91 > /sys/devices/system/cpu/cpufreq/conservative/down_threshold
echo always > /sys/kernel/mm/transparent_hugepage/enabled
echo 6000 > /proc/sys/kernel/sched_migration_cost_ns
echo 10000000 > /proc/sys/kernel/sched_min_granularity_ns
echo 0 > /proc/sys/kernel/nmi_watchdog
cpupower frequency-set -u 2400MHz

The system ROM used for this result contains Intel microcode version 0x1000380 for the Intel Xeon Platinum 6787P Processor

l>

None

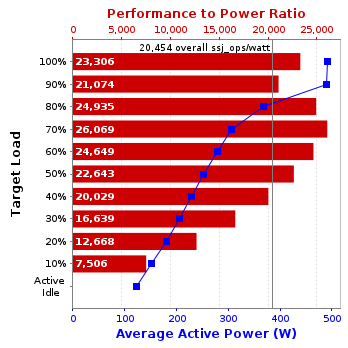

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	491	23.0
90%	489	23.1
80%	367	23.1
70%	307	23.1
60%	278	23.1
50%	252	23.2
40%	229	23.2
30%	207	23.4
20%	181	23.4
10%	153	23.4
Active Idle	123	23.5

Line Standard	Minimum Temperature (°C)	Elevation (m)
208V / 60 Hz / 1 phase / 2 wires	23.0	132

See the Power/Temperature Details Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
