SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2025 Standard Performance Evaluation Corporation
| Supermicro SYS-112H-TN | SPECpower_ssj2008 = 14,329 overall ssj_ops/watt | ||||
| Test Sponsor: | Supermicro | SPEC License #: | 1176 | Test Method: | Single Node |
| Tested By: | Supermicro | Test Location: | Zhonghe Dist, New Taipei City, Taiwan (R.O.C.) | Test Date: | Feb 8, 2025 |
| Hardware Availability: | Mar-2025 | Software Availability: | Jan-2025 | Publication: | Feb 25, 2025 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

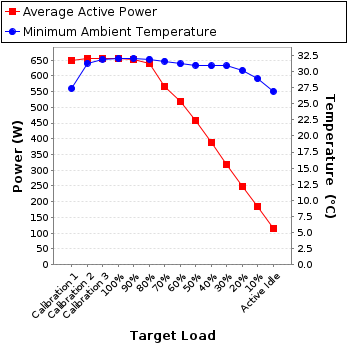

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 647 | 27.4 |
| Calibration 2 | 656 | 31.3 |
| Calibration 3 | 655 | 31.9 |
| 100% | 655 | 32.0 |
| 90% | 652 | 32.1 |
| 80% | 640 | 31.9 |
| 70% | 567 | 31.6 |
| 60% | 518 | 31.2 |
| 50% | 458 | 31.0 |
| 40% | 389 | 30.9 |
| 30% | 320 | 30.9 |
| 20% | 248 | 30.2 |
| 10% | 184 | 28.9 |
| Active Idle | 115 | 26.9 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation. |
| Model: | WT310 |
| Serial Number: | C3RF27027E |
| Connectivity: | GPIB |
| Input Connection: | Default |
| Metrology Institute: | NML (National Measurement Laboratory) |
| Accredited by: | Omnio Calibration Lab. Co., Ltd. |
| Calibration Label: | CI240131001 |
| Date of Calibration: | 13-Jan-2025 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.0-a4047d62-20231205 |
| Setup Description: | SUT Power Supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Cleware USB-Temp |
| Driver Version: | 10.0.17763.719 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 10 mm in front of SUT main air intake |

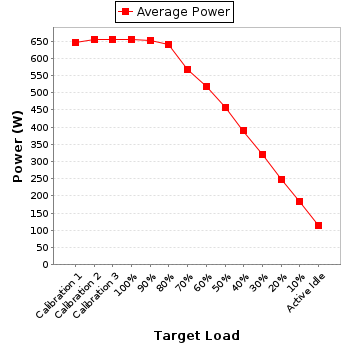

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 226 | 300.0 | 2.90 | 5.0 | 0.988 | 647 | 0.4% |
| Calibration 2 | 226 | 300.0 | 2.94 | 5.0 | 0.988 | 656 | 0.4% |
| Calibration 3 | 226 | 300.0 | 2.93 | 5.0 | 0.988 | 655 | 0.4% |
| 100% | 227 | 300.0 | 2.93 | 5.0 | 0.988 | 655 | 0.4% |
| 90% | 227 | 300.0 | 2.91 | 5.0 | 0.987 | 652 | 0.4% |
| 80% | 227 | 300.0 | 2.87 | 5.0 | 0.984 | 640 | 0.4% |
| 70% | 227 | 300.0 | 2.54 | 5.0 | 0.983 | 567 | 0.4% |
| 60% | 227 | 300.0 | 2.33 | 2.0 | 0.981 | 518 | 0.3% |
| 50% | 227 | 300.0 | 2.07 | 2.0 | 0.976 | 458 | 0.3% |
| 40% | 227 | 300.0 | 1.76 | 2.0 | 0.971 | 389 | 0.3% |
| 30% | 227 | 300.0 | 1.46 | 2.0 | 0.965 | 320 | 0.3% |
| 20% | 228 | 300.0 | 1.13 | 2.0 | 0.967 | 248 | 0.4% |
| 10% | 228 | 300.0 | 0.852 | 1.0 | 0.947 | 184 | 0.3% |
| Active Idle | 228 | 300.0 | 0.575 | 1.0 | 0.881 | 115 | 0.4% |
