SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2025 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant Compute DL320 Gen12 | SPECpower_ssj2008 = 14,571 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Sep 2, 2025 |
| Hardware Availability: | Mar-2025 | Software Availability: | Oct-2024 | Publication: | Feb 25, 2025 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

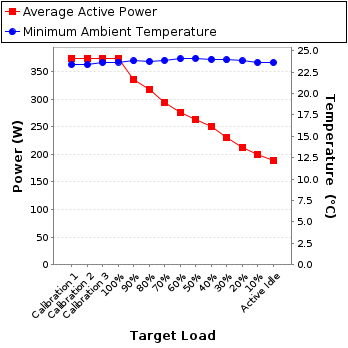

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 373 | 23.4 |
| Calibration 2 | 374 | 23.4 |
| Calibration 3 | 374 | 23.6 |
| 100% | 373 | 23.7 |
| 90% | 336 | 23.8 |
| 80% | 317 | 23.8 |
| 70% | 294 | 23.9 |
| 60% | 277 | 24.1 |
| 50% | 263 | 24.1 |
| 40% | 251 | 24.0 |
| 30% | 231 | 23.9 |
| 20% | 213 | 23.8 |
| 10% | 201 | 23.6 |
| Active Idle | 188 | 23.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91GC21887 |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-H48PA-60-1 |
| Date of Calibration: | 01-Aug-2024 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.1-462c978e-20240907 |
| Setup Description: | SUT Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 210 | 300.0 | 1.91 | 5.0 | 0.931 | 373 | 0.6% |
| Calibration 2 | 209 | 300.0 | 1.93 | 5.0 | 0.931 | 374 | 0.6% |
| Calibration 3 | 209 | 300.0 | 1.93 | 5.0 | 0.931 | 374 | 0.6% |
| 100% | 209 | 300.0 | 1.92 | 5.0 | 0.931 | 373 | 0.6% |
| 90% | 209 | 300.0 | 1.75 | 5.0 | 0.915 | 336 | 0.6% |
| 80% | 209 | 300.0 | 1.67 | 5.0 | 0.907 | 317 | 0.6% |
| 70% | 208 | 300.0 | 1.59 | 5.0 | 0.893 | 294 | 0.7% |
| 60% | 208 | 300.0 | 1.51 | 5.0 | 0.882 | 277 | 0.7% |
| 50% | 208 | 300.0 | 1.45 | 5.0 | 0.872 | 263 | 0.7% |
| 40% | 208 | 300.0 | 1.40 | 5.0 | 0.862 | 251 | 0.7% |
| 30% | 208 | 300.0 | 1.32 | 2.0 | 0.842 | 231 | 0.5% |
| 20% | 208 | 300.0 | 1.25 | 2.0 | 0.823 | 213 | 0.5% |
| 10% | 208 | 300.0 | 1.20 | 2.0 | 0.806 | 201 | 0.5% |
| Active Idle | 208 | 300.0 | 1.15 | 2.0 | 0.785 | 188 | 0.5% |
