SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2025 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant Compute DL340 Gen12 | SPECpower_ssj2008 = 17,870 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Feb 10, 2025 |
| Hardware Availability: | Mar-2025 | Software Availability: | Oct-2024 | Publication: | Feb 25, 2025 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

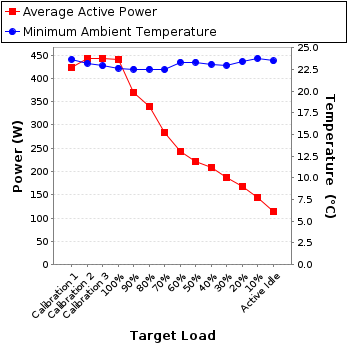

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 423 | 23.7 |
| Calibration 2 | 443 | 23.2 |
| Calibration 3 | 443 | 22.9 |
| 100% | 441 | 22.7 |
| 90% | 370 | 22.6 |
| 80% | 339 | 22.6 |
| 70% | 284 | 22.5 |
| 60% | 243 | 23.4 |
| 50% | 222 | 23.4 |
| 40% | 208 | 23.1 |
| 30% | 188 | 23.0 |
| 20% | 168 | 23.4 |
| 10% | 145 | 23.8 |
| Active Idle | 114 | 23.5 |

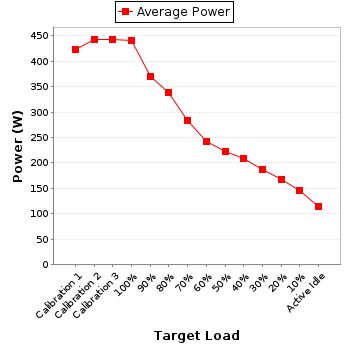

| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91GC21887 |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-H48PA-60-1 |
| Date of Calibration: | 01-Aug-2024 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.1-462c978e-20240907 |
| Setup Description: | SUT Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 205 | 300.0 | 2.10 | 5.0 | 0.981 | 423 | 0.5% |
| Calibration 2 | 205 | 300.0 | 2.20 | 5.0 | 0.983 | 443 | 0.5% |
| Calibration 3 | 205 | 300.0 | 2.20 | 5.0 | 0.983 | 443 | 0.5% |
| 100% | 205 | 300.0 | 2.19 | 5.0 | 0.983 | 441 | 0.5% |
| 90% | 205 | 300.0 | 1.85 | 5.0 | 0.976 | 370 | 0.5% |
| 80% | 205 | 300.0 | 1.70 | 5.0 | 0.972 | 339 | 0.6% |
| 70% | 205 | 300.0 | 1.44 | 5.0 | 0.963 | 284 | 0.7% |
| 60% | 205 | 300.0 | 1.24 | 5.0 | 0.952 | 243 | 0.8% |
| 50% | 205 | 300.0 | 1.15 | 5.0 | 0.940 | 222 | 0.8% |
| 40% | 205 | 300.0 | 1.09 | 5.0 | 0.934 | 208 | 0.9% |
| 30% | 205 | 300.0 | 0.996 | 2.0 | 0.920 | 188 | 0.5% |
| 20% | 205 | 300.0 | 0.905 | 2.0 | 0.903 | 168 | 0.5% |
| 10% | 205 | 300.0 | 0.805 | 2.0 | 0.879 | 145 | 0.6% |
| Active Idle | 205 | 300.0 | 0.675 | 2.0 | 0.821 | 114 | 0.7% |
