Lenovo Global Technology Think System SR630 V4 SPECpower_ssj2008 = 24,246 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Feb 22, 2025
Hardware Availability: Nov-2024 Software Availability: Jun-2024 Publication: Mar 11, 2025
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.8% 19,457,068 657 29,598
90% 90.0% 17,552,051 559 31,396
80% 80.0% 15,595,995 516 30,228
70% 70.0% 13,656,063 473 28,893
60% 60.0% 11,703,847 428 27,331
50% 49.9% 9,735,809 393 24,748
40% 40.0% 7,807,752 360 21,713
30% 30.0% 5,851,842 328 17,838
20% 20.0% 3,901,283 274 14,259
10% 10.0% 1,947,749 234 8,338
Active Idle 0 200 0
∑ssj_ops / ∑power = 24,246
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Think System SR630 V4
Form Factor: 1U
CPU Name: Intel Xeon 6780E
CPU Characteristics: 144-Core, 2.20GHz, 108MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 288 cores, 2 chips, 144 cores/chip
Hardware Threads: 288 (1 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 64 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per core
Tertiary Cache: 108 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 512
# and size of DIMM: 16 x 32 GB
Memory Details: 32GB 2Rx8 PC5-6400; slots 1, 3, 5, 7, 10, 12, 14 and 16 populated
Power Supply Quantity and Rating (W): 1 x 1300
Power Supply Details: Lenovo P/N:4P57A88621
Disk Drive: 1 x 960GB 2.5" NVMe SSD P/N:4XB7A93066
Disk Controller: Integrated NvMe controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP6
OS Version: 6.4.0-150600.21-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.10+11-LTS-240, mixed mode, sharing), version 17.0.10
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:InlineSmallCode=1500 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:FreqInlineSize=2500 -XX:CompileThresholdScaling=210
JVM Affinity: for each even physicalCoreId { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 144, physicalCoreId + 145}
JVM Instances: 72
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: IHE107B
Management Firmware Version: IHX405D
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Thinksystem SR665
CPU Description: 2 x AMD EPYC 7773X
Memory amount (GB): 512
Software
Operating System (OS): Microsoft Windows Server 2022 DataCenter - Version 21H2 (OS Build 20348.1249)
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3UD17023E
Connectivity: USB
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: CHINA CEPEREI LABORATORY CALIBRATION & TESTING CENTRE
Calibration Label: 1GA24011968-0002
Date of Calibration: 10-Oct-2024
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.0-a4047d62-20231205
Setup Description: Connected to PSU 2
Temperature Sensor temp1
Hardware Vendor: Digi International, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 657 22.1
90% 559 22.1
80% 516 22.2
70% 473 22.2
60% 428 22.3
50% 393 22.3
40% 360 22.4
30% 328 22.3
20% 274 22.3
10% 234 22.3
Active Idle 200 22.3
Line Standard Minimum Temperature (°C) Elevation (m)
220V / 50 Hz / 1 phase / 2 wires 22.1 43
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     16,995,819
Calibration 2     19,452,983
Calibration 3     19,558,481
ssj_ops@calibrated=19,505,732
100% 99.8% 19,505,732 19,457,068
90% 90.0% 17,555,158 17,552,051
80% 80.0% 15,604,585 15,595,995
70% 70.0% 13,654,012 13,656,063
60% 60.0% 11,703,439 11,703,847
50% 49.9% 9,752,866 9,735,809
40% 40.0% 7,802,293 7,807,752
30% 30.0% 5,851,719 5,851,842
20% 20.0% 3,901,146 3,901,283
10% 10.0% 1,950,573 1,947,749
Active Idle   0 0

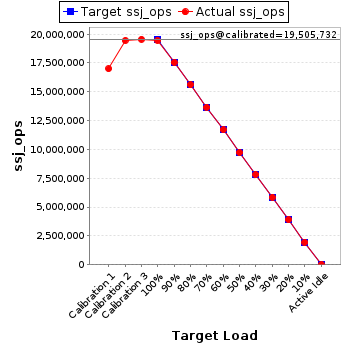

Graph of results
See the Host Performance Report for additional details.
