IEIT Systems Co., Ltd. meta brain NF5180G8 ssj_ops@100% = 18,367,121
ssj_ops@100% per JVM = 255,099
Test Sponsor: IEIT Systems Co., Ltd. SPEC License #: 3358 Test Method: Single Node
Tested By: IEIT Systems Co., Ltd. Test Location: JINAN, CHINA Test Date: Feb 12, 2025
Hardware Availability: Feb-2025 Software Availability: Jun-2024 Publication: Mar 11, 2025
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     18,388,077
Calibration 2     18,375,637
Calibration 3     18,367,743
ssj_ops@calibrated=18,371,690
100% 100.0% 18,371,690 18,367,121
90% 91.7% 16,534,521 16,854,640
80% 80.8% 14,697,352 14,848,116
70% 70.0% 12,860,183 12,861,932
60% 60.0% 11,023,014 11,023,638
50% 50.0% 9,185,845 9,179,229
40% 40.0% 7,348,676 7,352,118
30% 30.0% 5,511,507 5,515,937
20% 20.0% 3,674,338 3,668,265
10% 10.0% 1,837,169 1,840,306
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: IEIT Systems Co., Ltd.
Model: meta brain NF5180G8
Form Factor: 1U
CPU Name: Intel Xeon 6780E 2.2 GHz
CPU Characteristics: 144 core, 2.2GHz, 108MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 288 cores, 2 chips, 144 cores/chip
Hardware Threads: 288 (1 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 64 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
Tertiary Cache: 108 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 512
# and size of DIMM: 16 x 32768 MB
Memory Details: 16 x SA_32G_DDR5-6400ER_2R8_A20F-CS; IEIT PN:ZMMY1001070;slots CPU0_C0D0,CPU0_C1D0, CPU0_C2D0, CPU0_C3D0, CPU0_C4D0, CPU0_C5D0, CPU0_C6D0, CPU0_C7D0, CPU1_C0D0,CPU1_C1D0, CPU1_C2D0, CPU1_C3D0, CPU1_C4D0, CPU1_C5D0, CPU1_C6D0, CPU1_C7D0 populated
Power Supply Quantity and Rating (W): 1 x 1300
Power Supply Details: 1 x 1300w Great Wall Power; G_M_GW-CRPS1300D2WM_1300W_1U; IEIT PN:ZMPS1000784
Disk Drive: 1 x 960G PM963_MZQLW960HMJP-00003_NVME;IEIT PN:ZMHD1000265
Disk Controller: Integrated NVME controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel_W_I350-T2V2_RJ_PCI-E4X_1KM
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode enabled in OS
Operating System (OS): Windows Server 2022 Datacenter
OS Version: Version 21H2 (OS Build 20348.587)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 17.0.10+11-LTS-240, mixed mode, sharing)
JVM Command-line Options: -server -Xmn1825m -Xms1995m -Xmx1995m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:InlineSmallCode=1500 -XX:UseAVX=0 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:+OptimizeFill -XX:+AggressiveHeap -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500
JVM Affinity: start /NODE [0,1,2,3,4,5] /AFFINITY [F,F0,F00,F000,F0000,F00000,F000000,F0000000,F00000000,F000000000,F0000000000,F00000000000]
JVM Instances: 72
JVM Initial Heap (MB): 1995
JVM Maximum Heap (MB): 1995
JVM Address Bits: 64
Boot Firmware Version: 00.17.02
Management Firmware Version: 2.07.00
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows (KB5039227)
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 288 to detect the full number of available processors on the SUT
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-Q3AQLKAF6EB.001 254,547
WIN-Q3AQLKAF6EB.002 253,438
WIN-Q3AQLKAF6EB.003 256,877
WIN-Q3AQLKAF6EB.004 253,317
WIN-Q3AQLKAF6EB.005 255,511
WIN-Q3AQLKAF6EB.006 258,822
WIN-Q3AQLKAF6EB.007 249,506
WIN-Q3AQLKAF6EB.008 251,098
WIN-Q3AQLKAF6EB.009 257,685
WIN-Q3AQLKAF6EB.010 247,718
WIN-Q3AQLKAF6EB.011 254,263
WIN-Q3AQLKAF6EB.012 258,699
WIN-Q3AQLKAF6EB.013 251,921
WIN-Q3AQLKAF6EB.014 258,763
WIN-Q3AQLKAF6EB.015 253,325
WIN-Q3AQLKAF6EB.016 251,173
WIN-Q3AQLKAF6EB.017 253,243
WIN-Q3AQLKAF6EB.018 252,961
WIN-Q3AQLKAF6EB.019 255,704
WIN-Q3AQLKAF6EB.020 253,984
WIN-Q3AQLKAF6EB.021 252,744
WIN-Q3AQLKAF6EB.022 250,897
WIN-Q3AQLKAF6EB.023 258,556
WIN-Q3AQLKAF6EB.024 240,852
WIN-Q3AQLKAF6EB.025 255,113
WIN-Q3AQLKAF6EB.026 257,908
WIN-Q3AQLKAF6EB.027 253,918
WIN-Q3AQLKAF6EB.028 257,390
WIN-Q3AQLKAF6EB.029 255,660
WIN-Q3AQLKAF6EB.030 254,040
WIN-Q3AQLKAF6EB.031 255,556
WIN-Q3AQLKAF6EB.032 255,067
WIN-Q3AQLKAF6EB.033 246,019
WIN-Q3AQLKAF6EB.034 254,235
WIN-Q3AQLKAF6EB.035 255,709
WIN-Q3AQLKAF6EB.036 254,216
WIN-Q3AQLKAF6EB.037 254,849
WIN-Q3AQLKAF6EB.038 252,013
WIN-Q3AQLKAF6EB.039 254,347
WIN-Q3AQLKAF6EB.040 255,225
WIN-Q3AQLKAF6EB.041 255,289
WIN-Q3AQLKAF6EB.042 259,284
WIN-Q3AQLKAF6EB.043 258,566
WIN-Q3AQLKAF6EB.044 253,246
WIN-Q3AQLKAF6EB.045 259,554
WIN-Q3AQLKAF6EB.046 260,740
WIN-Q3AQLKAF6EB.047 257,198
WIN-Q3AQLKAF6EB.048 257,690
WIN-Q3AQLKAF6EB.049 259,379
WIN-Q3AQLKAF6EB.050 255,243
WIN-Q3AQLKAF6EB.051 257,900
WIN-Q3AQLKAF6EB.052 257,965
WIN-Q3AQLKAF6EB.053 250,889
WIN-Q3AQLKAF6EB.054 257,817
WIN-Q3AQLKAF6EB.055 259,365
WIN-Q3AQLKAF6EB.056 257,608
WIN-Q3AQLKAF6EB.057 250,497
WIN-Q3AQLKAF6EB.058 253,607
WIN-Q3AQLKAF6EB.059 259,417
WIN-Q3AQLKAF6EB.060 255,436
WIN-Q3AQLKAF6EB.061 253,011
WIN-Q3AQLKAF6EB.062 262,656
WIN-Q3AQLKAF6EB.063 250,280
WIN-Q3AQLKAF6EB.064 253,022
WIN-Q3AQLKAF6EB.065 260,021
WIN-Q3AQLKAF6EB.066 256,930
WIN-Q3AQLKAF6EB.067 255,008
WIN-Q3AQLKAF6EB.068 259,072
WIN-Q3AQLKAF6EB.069 255,412
WIN-Q3AQLKAF6EB.070 254,531
WIN-Q3AQLKAF6EB.071 256,695
WIN-Q3AQLKAF6EB.072 256,923
ssj_ops@100% 18,367,121
ssj_ops@100% per JVM 255,099

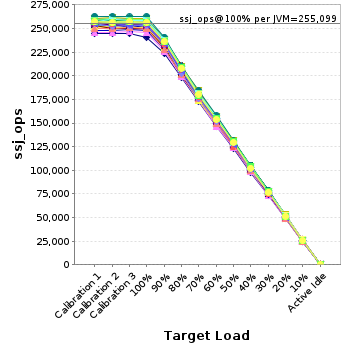

Graph of per-instance results
JVM 'WIN-Q3AQLKAF6EB.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     251,208
Calibration 2     254,731
Calibration 3     254,202
ssj_ops@calibrated=254,467
100% 100.0% 254,467 254,547
90% 91.1% 229,020 231,890
80% 80.9% 203,573 205,876
70% 69.8% 178,127 177,632
60% 59.5% 152,680 151,375
50% 49.8% 127,233 126,669
40% 40.2% 101,787 102,277
30% 29.9% 76,340 76,181
20% 20.3% 50,893 51,579
10% 10.4% 25,447 26,432
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     253,506
Calibration 2     253,852
Calibration 3     253,728
ssj_ops@calibrated=253,790
100% 99.9% 253,790 253,438
90% 92.1% 228,411 233,809
80% 80.5% 203,032 204,243
70% 70.0% 177,653 177,627
60% 59.9% 152,274 151,974
50% 49.8% 126,895 126,460
40% 40.2% 101,516 102,053
30% 30.0% 76,137 76,123
20% 19.9% 50,758 50,555
10% 10.2% 25,379 25,962
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     257,568
Calibration 2     257,452
Calibration 3     257,594
ssj_ops@calibrated=257,523
100% 99.7% 257,523 256,877
90% 91.9% 231,771 236,779
80% 80.2% 206,018 206,454
70% 69.6% 180,266 179,328
60% 60.1% 154,514 154,722
50% 49.7% 128,762 128,022
40% 39.5% 103,009 101,767
30% 30.1% 77,257 77,474
20% 20.1% 51,505 51,704
10% 9.8% 25,752 25,258
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     254,696
Calibration 2     255,220
Calibration 3     255,817
ssj_ops@calibrated=255,519
100% 99.1% 255,519 253,317
90% 92.0% 229,967 235,062
80% 81.2% 204,415 207,501
70% 69.1% 178,863 176,618
60% 60.3% 153,311 154,108
50% 49.9% 127,759 127,424
40% 39.9% 102,207 101,989
30% 30.1% 76,656 76,877
20% 19.7% 51,104 50,225
10% 9.9% 25,552 25,363
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     255,627
Calibration 2     254,122
Calibration 3     251,873
ssj_ops@calibrated=252,998
100% 101.0% 252,998 255,511
90% 91.2% 227,698 230,764
80% 80.9% 202,398 204,616
70% 69.3% 177,098 175,311
60% 59.5% 151,799 150,549
50% 50.1% 126,499 126,724
40% 40.0% 101,199 101,124
30% 30.3% 75,899 76,745
20% 19.6% 50,600 49,528
10% 9.9% 25,300 24,997
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     258,256
Calibration 2     258,826
Calibration 3     258,832
ssj_ops@calibrated=258,829
100% 100.0% 258,829 258,822
90% 92.3% 232,946 238,932
80% 80.4% 207,063 208,225
70% 69.9% 181,180 180,854
60% 60.3% 155,297 156,182
50% 50.2% 129,415 129,980
40% 39.6% 103,532 102,376
30% 29.9% 77,649 77,261
20% 19.6% 51,766 50,671
10% 10.1% 25,883 26,167
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

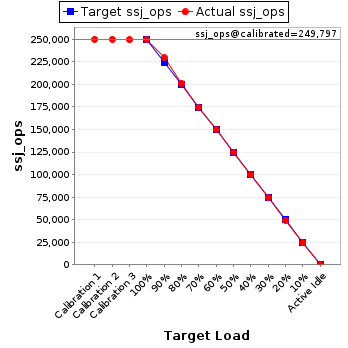

JVM 'WIN-Q3AQLKAF6EB.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     250,136
Calibration 2     250,070
Calibration 3     249,524
ssj_ops@calibrated=249,797
100% 99.9% 249,797 249,506
90% 91.9% 224,817 229,670
80% 80.6% 199,837 201,461
70% 69.9% 174,858 174,618
60% 60.1% 149,878 150,102
50% 50.0% 124,898 125,000
40% 39.9% 99,919 99,601
30% 29.7% 74,939 74,074
20% 19.7% 49,959 49,232
10% 9.7% 24,980 24,203
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     251,947
Calibration 2     251,471
Calibration 3     251,580
ssj_ops@calibrated=251,526
100% 99.8% 251,526 251,098
90% 91.9% 226,373 231,192
80% 80.7% 201,220 203,083
70% 69.9% 176,068 175,876
60% 59.7% 150,915 150,259
50% 50.4% 125,763 126,682
40% 39.8% 100,610 100,151
30% 30.3% 75,458 76,280
20% 20.1% 50,305 50,551
10% 10.0% 25,153 25,277
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     260,695
Calibration 2     259,865
Calibration 3     260,252
ssj_ops@calibrated=260,059
100% 99.1% 260,059 257,685
90% 91.5% 234,053 237,952
80% 81.0% 208,047 210,639
70% 70.2% 182,041 182,589
60% 60.0% 156,035 155,989
50% 50.1% 130,029 130,356
40% 40.0% 104,023 103,941
30% 30.4% 78,018 79,028
20% 20.0% 52,012 51,998
10% 9.9% 26,006 25,664
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     247,927
Calibration 2     248,290
Calibration 3     248,739
ssj_ops@calibrated=248,514
100% 99.7% 248,514 247,718
90% 91.6% 223,663 227,654
80% 81.2% 198,811 201,783
70% 70.1% 173,960 174,280
60% 60.2% 149,109 149,622
50% 50.1% 124,257 124,391
40% 40.2% 99,406 100,010
30% 30.1% 74,554 74,864
20% 20.0% 49,703 49,588
10% 10.1% 24,851 24,989
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     255,991
Calibration 2     254,730
Calibration 3     254,556
ssj_ops@calibrated=254,643
100% 99.9% 254,643 254,263
90% 91.9% 229,179 233,924
80% 80.8% 203,715 205,801
70% 69.8% 178,250 177,742
60% 60.4% 152,786 153,715
50% 49.4% 127,322 125,908
40% 39.9% 101,857 101,674
30% 29.9% 76,393 76,129
20% 19.8% 50,929 50,505
10% 10.1% 25,464 25,681
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     258,096
Calibration 2     258,565
Calibration 3     258,720
ssj_ops@calibrated=258,643
100% 100.0% 258,643 258,699
90% 91.8% 232,778 237,412
80% 80.6% 206,914 208,567
70% 70.3% 181,050 181,812
60% 60.3% 155,186 155,930
50% 49.8% 129,321 128,831
40% 39.7% 103,457 102,725
30% 30.0% 77,593 77,588
20% 19.9% 51,729 51,587
10% 10.1% 25,864 26,087
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     253,300
Calibration 2     251,533
Calibration 3     251,804
ssj_ops@calibrated=251,668
100% 100.1% 251,668 251,921
90% 91.7% 226,501 230,786
80% 81.1% 201,335 204,197
70% 70.2% 176,168 176,549
60% 59.9% 151,001 150,870
50% 50.1% 125,834 126,178
40% 40.1% 100,667 100,895
30% 30.0% 75,500 75,503
20% 20.0% 50,334 50,241
10% 9.8% 25,167 24,672
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     258,608
Calibration 2     258,848
Calibration 3     259,101
ssj_ops@calibrated=258,974
100% 99.9% 258,974 258,763
90% 91.5% 233,077 237,083
80% 81.6% 207,180 211,311
70% 69.8% 181,282 180,802
60% 59.9% 155,385 155,140
50% 50.2% 129,487 129,984
40% 39.9% 103,590 103,436
30% 30.2% 77,692 78,162
20% 20.1% 51,795 51,962
10% 10.1% 25,897 26,154
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     254,760
Calibration 2     253,558
Calibration 3     253,281
ssj_ops@calibrated=253,419
100% 100.0% 253,419 253,325
90% 91.9% 228,077 232,847
80% 81.0% 202,735 205,295
70% 69.5% 177,393 176,091
60% 60.1% 152,052 152,277
50% 50.2% 126,710 127,195
40% 40.0% 101,368 101,295
30% 29.9% 76,026 75,875
20% 20.3% 50,684 51,543
10% 10.3% 25,342 26,059
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     253,632
Calibration 2     251,501
Calibration 3     251,091
ssj_ops@calibrated=251,296
100% 100.0% 251,296 251,173
90% 91.4% 226,166 229,750
80% 81.3% 201,037 204,270
70% 69.6% 175,907 174,997
60% 60.1% 150,778 151,036
50% 50.5% 125,648 126,878
40% 40.5% 100,518 101,778
30% 30.0% 75,389 75,280
20% 19.9% 50,259 50,030
10% 10.1% 25,130 25,260
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

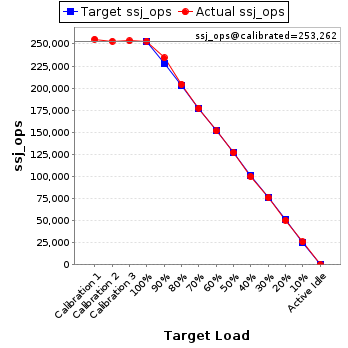

JVM 'WIN-Q3AQLKAF6EB.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     255,368
Calibration 2     253,071
Calibration 3     253,452
ssj_ops@calibrated=253,262
100% 100.0% 253,262 253,243
90% 92.5% 227,935 234,213
80% 80.7% 202,609 204,452
70% 70.0% 177,283 177,299
60% 59.8% 151,957 151,423
50% 50.1% 126,631 126,855
40% 39.4% 101,305 99,720
30% 30.0% 75,978 75,915
20% 19.8% 50,652 50,218
10% 10.1% 25,326 25,682
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     252,952
Calibration 2     252,720
Calibration 3     253,340
ssj_ops@calibrated=253,030
100% 100.0% 253,030 252,961
90% 91.4% 227,727 231,206
80% 81.1% 202,424 205,139
70% 70.3% 177,121 177,968
60% 60.5% 151,818 153,163
50% 50.1% 126,515 126,822
40% 39.9% 101,212 100,837
30% 30.4% 75,909 76,986
20% 19.5% 50,606 49,375
10% 10.0% 25,303 25,239
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     255,271
Calibration 2     256,235
Calibration 3     255,360
ssj_ops@calibrated=255,798
100% 100.0% 255,798 255,704
90% 91.7% 230,218 234,628
80% 81.1% 204,638 207,461
70% 69.9% 179,058 178,692
60% 59.8% 153,479 152,987
50% 49.6% 127,899 126,933
40% 39.7% 102,319 101,588
30% 30.3% 76,739 77,430
20% 20.0% 51,160 51,208
10% 9.9% 25,580 25,305
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     255,545
Calibration 2     254,608
Calibration 3     253,814
ssj_ops@calibrated=254,211
100% 99.9% 254,211 253,984
90% 91.7% 228,790 233,158
80% 81.3% 203,369 206,799
70% 69.6% 177,948 176,861
60% 59.9% 152,527 152,283
50% 50.4% 127,105 128,098
40% 40.3% 101,684 102,573
30% 30.3% 76,263 77,088
20% 19.7% 50,842 50,192
10% 9.8% 25,421 24,958
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     252,863
Calibration 2     252,859
Calibration 3     252,704
ssj_ops@calibrated=252,781
100% 100.0% 252,781 252,744
90% 92.5% 227,503 233,777
80% 80.6% 202,225 203,838
70% 70.3% 176,947 177,687
60% 60.0% 151,669 151,599
50% 49.8% 126,391 125,992
40% 39.8% 101,113 100,638
30% 29.7% 75,834 75,202
20% 19.8% 50,556 50,120
10% 10.0% 25,278 25,247
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     251,417
Calibration 2     249,196
Calibration 3     250,160
ssj_ops@calibrated=249,678
100% 100.5% 249,678 250,897
90% 92.4% 224,710 230,661
80% 81.0% 199,742 202,230
70% 70.0% 174,774 174,679
60% 60.0% 149,807 149,756
50% 50.2% 124,839 125,299
40% 39.7% 99,871 99,169
30% 30.0% 74,903 74,845
20% 19.9% 49,936 49,772
10% 9.9% 24,968 24,663
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     258,662
Calibration 2     258,278
Calibration 3     259,000
ssj_ops@calibrated=258,639
100% 100.0% 258,639 258,556
90% 91.6% 232,775 236,857
80% 80.3% 206,911 207,751
70% 70.1% 181,047 181,267
60% 59.7% 155,184 154,450
50% 49.4% 129,320 127,836
40% 40.2% 103,456 103,947
30% 29.9% 77,592 77,314
20% 19.9% 51,728 51,549
10% 10.0% 25,864 25,763
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

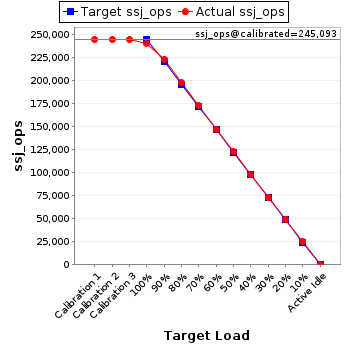

JVM 'WIN-Q3AQLKAF6EB.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     244,719
Calibration 2     245,222
Calibration 3     244,964
ssj_ops@calibrated=245,093
100% 98.3% 245,093 240,852
90% 91.2% 220,584 223,494
80% 80.7% 196,075 197,832
70% 70.6% 171,565 173,054
60% 59.9% 147,056 146,791
50% 50.1% 122,547 122,822
40% 39.8% 98,037 97,576
30% 29.9% 73,528 73,195
20% 20.1% 49,019 49,246
10% 10.1% 24,509 24,747
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     255,134
Calibration 2     254,903
Calibration 3     254,120
ssj_ops@calibrated=254,511
100% 100.2% 254,511 255,113
90% 91.8% 229,060 233,602
80% 80.9% 203,609 205,871
70% 70.1% 178,158 178,375
60% 59.6% 152,707 151,686
50% 50.2% 127,256 127,817
40% 40.4% 101,805 102,732
30% 30.4% 76,353 77,371
20% 20.0% 50,902 50,848
10% 9.9% 25,451 25,221
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     257,685
Calibration 2     257,959
Calibration 3     257,837
ssj_ops@calibrated=257,898
100% 100.0% 257,898 257,908
90% 91.9% 232,108 237,055
80% 80.3% 206,318 207,004
70% 70.2% 180,529 181,059
60% 59.8% 154,739 154,340
50% 49.7% 128,949 128,286
40% 40.3% 103,159 103,857
30% 30.1% 77,369 77,719
20% 19.9% 51,580 51,440
10% 10.0% 25,790 25,779
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     254,142
Calibration 2     253,531
Calibration 3     253,647
ssj_ops@calibrated=253,589
100% 100.1% 253,589 253,918
90% 91.3% 228,230 231,501
80% 81.0% 202,871 205,460
70% 69.5% 177,512 176,124
60% 60.4% 152,153 153,142
50% 49.5% 126,794 125,612
40% 39.9% 101,436 101,233
30% 30.1% 76,077 76,456
20% 20.0% 50,718 50,817
10% 9.8% 25,359 24,902
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     257,129
Calibration 2     257,402
Calibration 3     257,037
ssj_ops@calibrated=257,220
100% 100.1% 257,220 257,390
90% 91.3% 231,498 234,788
80% 80.6% 205,776 207,207
70% 70.0% 180,054 180,002
60% 60.2% 154,332 154,834
50% 49.6% 128,610 127,691
40% 40.1% 102,888 103,171
30% 29.9% 77,166 76,884
20% 20.2% 51,444 52,069
10% 10.1% 25,722 26,042
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     254,658
Calibration 2     254,991
Calibration 3     256,094
ssj_ops@calibrated=255,542
100% 100.0% 255,542 255,660
90% 91.6% 229,988 234,017
80% 80.5% 204,434 205,682
70% 69.9% 178,880 178,594
60% 60.1% 153,325 153,576
50% 50.2% 127,771 128,183
40% 40.2% 102,217 102,679
30% 30.2% 76,663 77,280
20% 19.8% 51,108 50,712
10% 10.0% 25,554 25,503
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     253,846
Calibration 2     254,045
Calibration 3     253,943
ssj_ops@calibrated=253,994
100% 100.0% 253,994 254,040
90% 91.6% 228,595 232,688
80% 80.9% 203,195 205,505
70% 70.0% 177,796 177,920
60% 60.0% 152,396 152,407
50% 50.0% 126,997 127,016
40% 40.1% 101,598 101,734
30% 30.1% 76,198 76,449
20% 19.8% 50,799 50,169
10% 10.1% 25,399 25,703
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     255,663
Calibration 2     255,256
Calibration 3     255,615
ssj_ops@calibrated=255,435
100% 100.0% 255,435 255,556
90% 91.4% 229,892 233,554
80% 80.1% 204,348 204,544
70% 70.4% 178,805 179,739
60% 60.4% 153,261 154,347
50% 50.0% 127,718 127,678
40% 39.8% 102,174 101,672
30% 30.0% 76,631 76,660
20% 20.0% 51,087 51,031
10% 10.0% 25,544 25,435
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     254,817
Calibration 2     255,401
Calibration 3     254,744
ssj_ops@calibrated=255,072
100% 100.0% 255,072 255,067
90% 92.0% 229,565 234,760
80% 81.3% 204,058 207,283
70% 70.1% 178,551 178,797
60% 59.7% 153,043 152,202
50% 50.0% 127,536 127,415
40% 39.8% 102,029 101,509
30% 29.8% 76,522 75,958
20% 19.8% 51,014 50,580
10% 9.9% 25,507 25,310
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     245,857
Calibration 2     246,358
Calibration 3     246,424
ssj_ops@calibrated=246,391
100% 99.8% 246,391 246,019
90% 91.8% 221,752 226,235
80% 80.9% 197,113 199,339
70% 70.5% 172,474 173,662
60% 59.6% 147,835 146,824
50% 50.2% 123,196 123,747
40% 40.3% 98,556 99,192
30% 29.9% 73,917 73,671
20% 20.0% 49,278 49,193
10% 9.8% 24,639 24,191
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

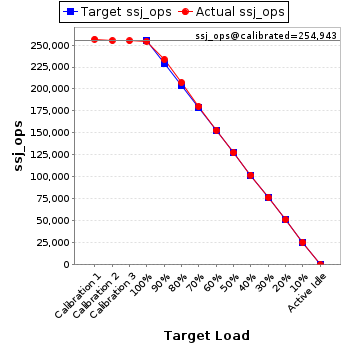

JVM 'WIN-Q3AQLKAF6EB.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     256,621
Calibration 2     255,087
Calibration 3     254,799
ssj_ops@calibrated=254,943
100% 99.7% 254,943 254,235
90% 91.6% 229,449 233,651
80% 81.3% 203,954 207,271
70% 70.6% 178,460 180,112
60% 60.0% 152,966 153,056
50% 50.0% 127,472 127,391
40% 40.0% 101,977 102,014
30% 30.0% 76,483 76,463
20% 20.0% 50,989 51,056
10% 10.1% 25,494 25,623
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     256,375
Calibration 2     256,225
Calibration 3     256,278
ssj_ops@calibrated=256,251
100% 99.8% 256,251 255,709
90% 91.6% 230,626 234,686
80% 81.4% 205,001 208,641
70% 69.6% 179,376 178,477
60% 60.0% 153,751 153,634
50% 50.2% 128,126 128,632
40% 40.2% 102,501 102,977
30% 30.1% 76,875 77,104
20% 19.9% 51,250 50,997
10% 10.0% 25,625 25,641
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

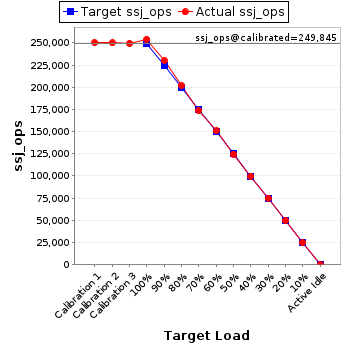

JVM 'WIN-Q3AQLKAF6EB.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     250,227
Calibration 2     250,058
Calibration 3     249,632
ssj_ops@calibrated=249,845
100% 101.7% 249,845 254,216
90% 92.1% 224,860 230,159
80% 80.8% 199,876 201,989
70% 69.4% 174,891 173,507
60% 60.4% 149,907 150,877
50% 49.9% 124,922 124,785
40% 40.0% 99,938 99,842
30% 30.1% 74,953 75,157
20% 19.9% 49,969 49,789
10% 10.0% 24,984 24,904
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     256,615
Calibration 2     255,930
Calibration 3     254,831
ssj_ops@calibrated=255,381
100% 99.8% 255,381 254,849
90% 91.8% 229,843 234,426
80% 80.9% 204,305 206,477
70% 70.0% 178,766 178,671
60% 59.9% 153,228 152,867
50% 49.9% 127,690 127,311
40% 39.8% 102,152 101,706
30% 30.1% 76,614 76,884
20% 19.9% 51,076 50,740
10% 10.4% 25,538 26,672
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     251,194
Calibration 2     251,756
Calibration 3     252,388
ssj_ops@calibrated=252,072
100% 100.0% 252,072 252,013
90% 92.1% 226,864 232,230
80% 80.6% 201,657 203,280
70% 70.3% 176,450 177,196
60% 59.9% 151,243 150,913
50% 50.8% 126,036 127,938
40% 39.7% 100,829 100,107
30% 29.9% 75,621 75,339
20% 20.0% 50,414 50,487
10% 10.0% 25,207 25,297
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     256,509
Calibration 2     254,971
Calibration 3     255,372
ssj_ops@calibrated=255,171
100% 99.7% 255,171 254,347
90% 91.8% 229,654 234,307
80% 81.2% 204,137 207,235
70% 70.6% 178,620 180,250
60% 60.4% 153,103 154,009
50% 49.7% 127,586 126,697
40% 39.9% 102,069 101,798
30% 30.3% 76,551 77,225
20% 19.7% 51,034 50,272
10% 10.1% 25,517 25,683
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     256,755
Calibration 2     255,654
Calibration 3     253,065
ssj_ops@calibrated=254,360
100% 100.3% 254,360 255,225
90% 91.8% 228,924 233,490
80% 81.3% 203,488 206,708
70% 69.2% 178,052 175,898
60% 60.0% 152,616 152,519
50% 49.6% 127,180 126,116
40% 39.8% 101,744 101,304
30% 29.8% 76,308 75,902
20% 19.7% 50,872 50,181
10% 10.1% 25,436 25,745
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

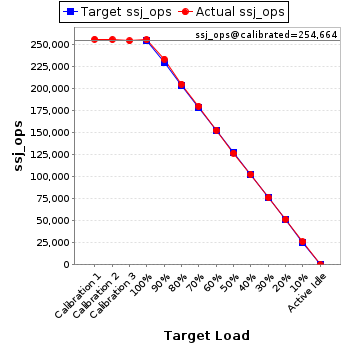

JVM 'WIN-Q3AQLKAF6EB.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     255,814
Calibration 2     255,359
Calibration 3     253,969
ssj_ops@calibrated=254,664
100% 100.2% 254,664 255,289
90% 91.6% 229,198 233,342
80% 80.5% 203,731 204,998
70% 70.6% 178,265 179,822
60% 59.9% 152,799 152,564
50% 49.7% 127,332 126,683
40% 40.2% 101,866 102,275
30% 29.9% 76,399 76,126
20% 20.3% 50,933 51,664
10% 10.2% 25,466 25,931
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     259,300
Calibration 2     259,779
Calibration 3     259,193
ssj_ops@calibrated=259,486
100% 99.9% 259,486 259,284
90% 91.1% 233,537 236,351
80% 80.9% 207,589 209,846
70% 70.2% 181,640 182,154
60% 60.3% 155,692 156,549
50% 49.0% 129,743 127,232
40% 40.3% 103,794 104,605
30% 30.3% 77,846 78,511
20% 19.9% 51,897 51,531
10% 10.0% 25,949 25,946
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     255,764
Calibration 2     258,494
Calibration 3     258,597
ssj_ops@calibrated=258,546
100% 100.0% 258,546 258,566
90% 91.7% 232,691 236,974
80% 80.7% 206,837 208,569
70% 70.3% 180,982 181,797
60% 60.1% 155,127 155,317
50% 50.2% 129,273 129,764
40% 40.2% 103,418 103,815
30% 29.9% 77,564 77,320
20% 19.8% 51,709 51,321
10% 10.1% 25,855 26,153
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     254,437
Calibration 2     253,967
Calibration 3     251,536
ssj_ops@calibrated=252,752
100% 100.2% 252,752 253,246
90% 92.1% 227,476 232,800
80% 80.8% 202,201 204,156
70% 69.9% 176,926 176,635
60% 59.9% 151,651 151,416
50% 50.2% 126,376 126,796
40% 40.0% 101,101 100,978
30% 29.6% 75,825 74,730
20% 20.1% 50,550 50,770
10% 10.0% 25,275 25,190
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     259,397
Calibration 2     259,521
Calibration 3     259,609
ssj_ops@calibrated=259,565
100% 100.0% 259,565 259,554
90% 91.8% 233,608 238,178
80% 81.3% 207,652 211,083
70% 69.5% 181,695 180,294
60% 59.9% 155,739 155,546
50% 50.2% 129,782 130,232
40% 40.2% 103,826 104,406
30% 29.5% 77,869 76,612
20% 20.3% 51,913 52,735
10% 10.0% 25,956 25,857
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     260,488
Calibration 2     261,444
Calibration 3     261,090
ssj_ops@calibrated=261,267
100% 99.8% 261,267 260,740
90% 91.4% 235,140 238,693
80% 80.4% 209,014 210,088
70% 70.7% 182,887 184,787
60% 60.0% 156,760 156,856
50% 50.2% 130,634 131,085
40% 39.9% 104,507 104,229
30% 29.8% 78,380 77,904
20% 20.1% 52,253 52,637
10% 10.0% 26,127 26,087
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     257,428
Calibration 2     255,394
Calibration 3     257,851
ssj_ops@calibrated=256,623
100% 100.2% 256,623 257,198
90% 91.7% 230,960 235,431
80% 80.7% 205,298 207,145
70% 70.2% 179,636 180,095
60% 60.4% 153,974 155,017
50% 49.8% 128,311 127,912
40% 40.1% 102,649 102,843
30% 30.1% 76,987 77,284
20% 20.3% 51,325 52,063
10% 10.3% 25,662 26,326
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     256,610
Calibration 2     257,004
Calibration 3     256,776
ssj_ops@calibrated=256,890
100% 100.3% 256,890 257,690
90% 91.3% 231,201 234,506
80% 81.5% 205,512 209,481
70% 70.2% 179,823 180,393
60% 60.4% 154,134 155,164
50% 49.6% 128,445 127,520
40% 40.2% 102,756 103,141
30% 30.4% 77,067 78,059
20% 19.6% 51,378 50,284
10% 10.0% 25,689 25,729
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     253,606
Calibration 2     259,841
Calibration 3     260,068
ssj_ops@calibrated=259,954
100% 99.8% 259,954 259,379
90% 91.9% 233,959 239,019
80% 80.3% 207,964 208,671
70% 70.1% 181,968 182,133
60% 59.9% 155,973 155,777
50% 50.1% 129,977 130,348
40% 40.5% 103,982 105,378
30% 30.2% 77,986 78,494
20% 20.0% 51,991 51,956
10% 10.0% 25,995 25,966
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     254,280
Calibration 2     253,936
Calibration 3     255,169
ssj_ops@calibrated=254,552
100% 100.3% 254,552 255,243
90% 91.6% 229,097 233,203
80% 81.3% 203,642 207,031
70% 70.1% 178,187 178,514
60% 60.1% 152,731 153,019
50% 49.1% 127,276 124,960
40% 40.3% 101,821 102,605
30% 29.8% 76,366 75,897
20% 20.2% 50,910 51,483
10% 9.9% 25,455 25,116
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     258,663
Calibration 2     258,195
Calibration 3     258,597
ssj_ops@calibrated=258,396
100% 99.8% 258,396 257,900
90% 91.6% 232,556 236,644
80% 81.0% 206,717 209,259
70% 70.3% 180,877 181,640
60% 59.8% 155,037 154,623
50% 50.2% 129,198 129,803
40% 39.9% 103,358 102,976
30% 30.0% 77,519 77,390
20% 19.9% 51,679 51,357
10% 9.9% 25,840 25,702
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     256,557
Calibration 2     258,367
Calibration 3     258,504
ssj_ops@calibrated=258,436
100% 99.8% 258,436 257,965
90% 92.1% 232,592 238,007
80% 80.2% 206,749 207,142
70% 70.4% 180,905 181,995
60% 59.6% 155,062 153,928
50% 50.3% 129,218 129,960
40% 40.1% 103,374 103,542
30% 29.8% 77,531 76,919
20% 20.1% 51,687 51,927
10% 9.8% 25,844 25,362
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     252,481
Calibration 2     251,335
Calibration 3     251,339
ssj_ops@calibrated=251,337
100% 99.8% 251,337 250,889
90% 91.5% 226,204 230,025
80% 80.4% 201,070 202,143
70% 69.2% 175,936 173,884
60% 59.4% 150,802 149,394
50% 50.3% 125,669 126,374
40% 40.0% 100,535 100,555
30% 30.2% 75,401 75,794
20% 20.1% 50,267 50,553
10% 10.0% 25,134 25,244
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     258,705
Calibration 2     258,294
Calibration 3     258,454
ssj_ops@calibrated=258,374
100% 99.8% 258,374 257,817
90% 91.2% 232,536 235,644
80% 80.6% 206,699 208,224
70% 70.2% 180,862 181,430
60% 60.0% 155,024 155,074
50% 50.1% 129,187 129,508
40% 39.8% 103,350 102,888
30% 29.8% 77,512 77,044
20% 20.3% 51,675 52,460
10% 9.9% 25,837 25,497
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     258,606
Calibration 2     259,687
Calibration 3     259,035
ssj_ops@calibrated=259,361
100% 100.0% 259,361 259,365
90% 91.4% 233,425 237,054
80% 80.8% 207,489 209,577
70% 69.5% 181,553 180,377
60% 60.6% 155,616 157,045
50% 50.0% 129,680 129,605
40% 40.0% 103,744 103,758
30% 30.1% 77,808 78,103
20% 20.0% 51,872 51,880
10% 10.0% 25,936 26,039
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     257,101
Calibration 2     257,362
Calibration 3     257,870
ssj_ops@calibrated=257,616
100% 100.0% 257,616 257,608
90% 91.4% 231,854 235,349
80% 80.8% 206,093 208,078
70% 70.3% 180,331 181,106
60% 60.0% 154,570 154,541
50% 50.0% 128,808 128,771
40% 40.0% 103,046 103,078
30% 29.6% 77,285 76,201
20% 20.1% 51,523 51,666
10% 9.8% 25,762 25,353
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     253,510
Calibration 2     250,234
Calibration 3     250,433
ssj_ops@calibrated=250,334
100% 100.1% 250,334 250,497
90% 91.8% 225,300 229,817
80% 80.2% 200,267 200,722
70% 70.5% 175,234 176,373
60% 60.1% 150,200 150,563
50% 49.8% 125,167 124,695
40% 40.3% 100,134 100,874
30% 30.2% 75,100 75,699
20% 20.1% 50,067 50,291
10% 10.1% 25,033 25,386
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     254,694
Calibration 2     253,954
Calibration 3     252,758
ssj_ops@calibrated=253,356
100% 100.1% 253,356 253,607
90% 91.9% 228,020 232,877
80% 80.9% 202,685 205,081
70% 70.0% 177,349 177,378
60% 59.7% 152,013 151,377
50% 49.9% 126,678 126,353
40% 39.6% 101,342 100,285
30% 29.9% 76,007 75,741
20% 19.8% 50,671 50,057
10% 10.0% 25,336 25,409
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     258,916
Calibration 2     258,411
Calibration 3     258,934
ssj_ops@calibrated=258,672
100% 100.3% 258,672 259,417
90% 92.1% 232,805 238,125
80% 80.5% 206,938 208,309
70% 69.9% 181,071 180,757
60% 59.6% 155,203 154,297
50% 50.3% 129,336 130,198
40% 40.7% 103,469 105,175
30% 30.5% 77,602 78,834
20% 20.3% 51,734 52,419
10% 9.9% 25,867 25,594
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     255,599
Calibration 2     255,536
Calibration 3     253,678
ssj_ops@calibrated=254,607
100% 100.3% 254,607 255,436
90% 92.1% 229,146 234,512
80% 81.2% 203,686 206,637
70% 69.3% 178,225 176,359
60% 59.8% 152,764 152,225
50% 50.0% 127,304 127,351
40% 40.3% 101,843 102,697
30% 29.7% 76,382 75,552
20% 20.1% 50,921 51,156
10% 10.0% 25,461 25,516
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     255,002
Calibration 2     253,656
Calibration 3     254,521
ssj_ops@calibrated=254,089
100% 99.6% 254,089 253,011
90% 91.8% 228,680 233,184
80% 81.5% 203,271 207,109
70% 70.3% 177,862 178,750
60% 59.8% 152,453 152,025
50% 49.8% 127,044 126,529
40% 39.9% 101,635 101,409
30% 30.0% 76,227 76,277
20% 19.8% 50,818 50,280
10% 10.1% 25,409 25,628
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

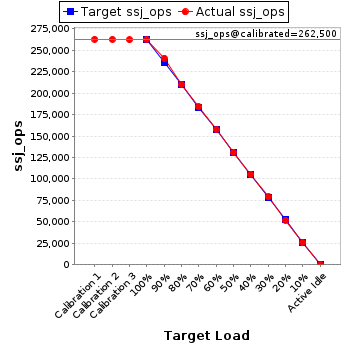

JVM 'WIN-Q3AQLKAF6EB.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     262,908
Calibration 2     262,709
Calibration 3     262,291
ssj_ops@calibrated=262,500
100% 100.1% 262,500 262,656
90% 91.8% 236,250 240,951
80% 80.1% 210,000 210,382
70% 70.2% 183,750 184,339
60% 60.2% 157,500 157,997
50% 50.0% 131,250 131,176
40% 40.1% 105,000 105,362
30% 30.1% 78,750 78,965
20% 19.7% 52,500 51,834
10% 9.9% 26,250 26,002
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     250,453
Calibration 2     249,816
Calibration 3     251,221
ssj_ops@calibrated=250,519
100% 99.9% 250,519 250,280
90% 90.9% 225,467 227,711
80% 80.3% 200,415 201,113
70% 70.3% 175,363 176,179
60% 59.7% 150,311 149,555
50% 49.9% 125,259 124,997
40% 40.0% 100,208 100,086
30% 30.4% 75,156 76,235
20% 19.7% 50,104 49,378
10% 9.9% 25,052 24,844
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

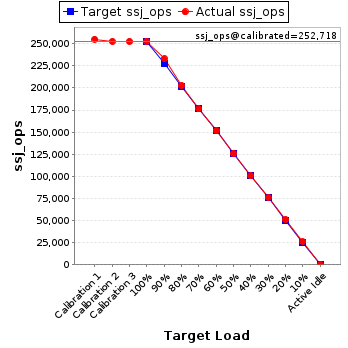

JVM 'WIN-Q3AQLKAF6EB.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     255,104
Calibration 2     252,678
Calibration 3     252,757
ssj_ops@calibrated=252,718
100% 100.1% 252,718 253,022
90% 92.2% 227,446 233,108
80% 80.3% 202,174 202,954
70% 69.7% 176,902 176,192
60% 60.0% 151,631 151,614
50% 49.8% 126,359 125,793
40% 39.7% 101,087 100,447
30% 30.1% 75,815 76,144
20% 20.3% 50,544 51,200
10% 10.2% 25,272 25,859
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.065' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     260,080
Calibration 2     260,265
Calibration 3     260,086
ssj_ops@calibrated=260,175
100% 99.9% 260,175 260,021
90% 91.7% 234,158 238,578
80% 80.5% 208,140 209,511
70% 70.2% 182,123 182,720
60% 59.7% 156,105 155,444
50% 49.8% 130,088 129,509
40% 40.2% 104,070 104,633
30% 29.9% 78,053 77,858
20% 20.3% 52,035 52,792
10% 10.0% 26,018 25,911
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.066' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     255,952
Calibration 2     257,310
Calibration 3     256,484
ssj_ops@calibrated=256,897
100% 100.0% 256,897 256,930
90% 91.8% 231,207 235,810
80% 81.1% 205,517 208,429
70% 70.1% 179,828 180,004
60% 59.8% 154,138 153,525
50% 49.7% 128,448 127,741
40% 40.0% 102,759 102,839
30% 29.9% 77,069 76,871
20% 20.2% 51,379 51,969
10% 10.4% 25,690 26,624
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

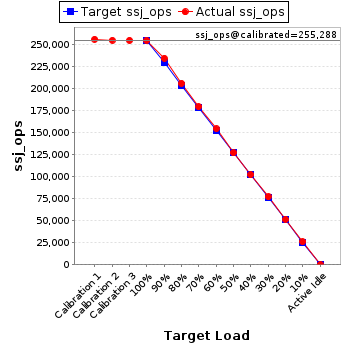

JVM 'WIN-Q3AQLKAF6EB.067' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     256,452
Calibration 2     255,301
Calibration 3     255,275
ssj_ops@calibrated=255,288
100% 99.9% 255,288 255,008
90% 92.0% 229,759 234,966
80% 80.8% 204,231 206,380
70% 70.4% 178,702 179,773
60% 60.6% 153,173 154,670
50% 49.8% 127,644 127,211
40% 40.0% 102,115 102,213
30% 30.3% 76,586 77,231
20% 20.3% 51,058 51,716
10% 10.2% 25,529 26,005
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.068' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     257,884
Calibration 2     259,168
Calibration 3     258,862
ssj_ops@calibrated=259,015
100% 100.0% 259,015 259,072
90% 92.0% 233,114 238,264
80% 80.3% 207,212 208,068
70% 70.1% 181,311 181,684
60% 60.0% 155,409 155,387
50% 49.8% 129,508 129,100
40% 40.1% 103,606 103,759
30% 30.1% 77,705 77,990
20% 20.0% 51,803 51,748
10% 10.1% 25,902 26,101
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.069' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     256,342
Calibration 2     255,666
Calibration 3     255,442
ssj_ops@calibrated=255,554
100% 99.9% 255,554 255,412
90% 91.6% 229,999 234,095
80% 81.0% 204,443 207,076
70% 69.5% 178,888 177,708
60% 60.0% 153,332 153,431
50% 49.1% 127,777 125,515
40% 40.4% 102,222 103,146
30% 29.7% 76,666 75,882
20% 20.1% 51,111 51,406
10% 9.9% 25,555 25,229
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.070' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     255,026
Calibration 2     255,497
Calibration 3     253,700
ssj_ops@calibrated=254,598
100% 100.0% 254,598 254,531
90% 91.9% 229,138 234,092
80% 80.9% 203,679 206,048
70% 70.0% 178,219 178,264
60% 60.3% 152,759 153,406
50% 49.9% 127,299 127,108
40% 39.9% 101,839 101,573
30% 29.9% 76,379 76,218
20% 19.7% 50,920 50,106
10% 10.2% 25,460 25,882
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.071' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     257,645
Calibration 2     256,867
Calibration 3     257,259
ssj_ops@calibrated=257,063
100% 99.9% 257,063 256,695
90% 91.9% 231,356 236,115
80% 81.1% 205,650 208,399
70% 69.7% 179,944 179,186
60% 60.3% 154,238 154,931
50% 50.7% 128,531 130,355
40% 40.3% 102,825 103,674
30% 30.2% 77,119 77,536
20% 19.7% 51,413 50,716
10% 10.0% 25,706 25,635
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q3AQLKAF6EB.072' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     257,298
Calibration 2     256,240
Calibration 3     257,073
ssj_ops@calibrated=256,657
100% 100.1% 256,657 256,923
90% 92.2% 230,991 236,566
80% 81.1% 205,325 208,081
70% 70.4% 179,660 180,590
60% 59.9% 153,994 153,826
50% 50.4% 128,328 129,391
40% 39.8% 102,663 102,208
30% 29.8% 76,997 76,576
20% 20.0% 51,331 51,347
10% 10.0% 25,666 25,705
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
