SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2025 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge R570 | SPECpower_ssj2008 = 21,089 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 6573 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Mar 10, 2025 |
| Hardware Availability: | Mar-2025 | Software Availability: | Oct-2024 | Publication: | Mar 26, 2025 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

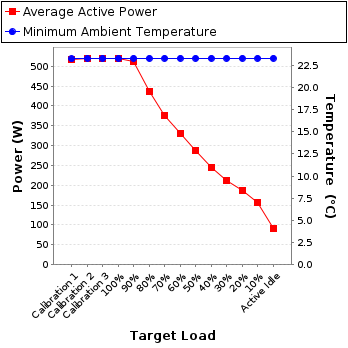

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 518 | 23.2 |
| Calibration 2 | 520 | 23.3 |
| Calibration 3 | 520 | 23.3 |
| 100% | 520 | 23.3 |
| 90% | 512 | 23.3 |
| 80% | 437 | 23.3 |
| 70% | 377 | 23.3 |
| 60% | 331 | 23.3 |
| 50% | 286 | 23.3 |
| 40% | 246 | 23.3 |
| 30% | 213 | 23.3 |
| 20% | 186 | 23.3 |
| 10% | 157 | 23.3 |
| Active Idle | 90.0 | 23.3 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT210 |
| Serial Number: | 91KA21979 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TesCom |
| Calibration Label: | T76417 |
| Date of Calibration: | 04-Oct-2025 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.1-462c978e-20240907 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main airflow intake |

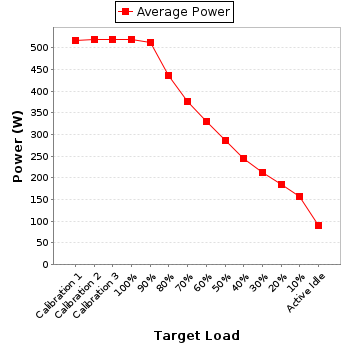

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 207 | 300.0 | 2.53 | 5.0 | 0.990 | 518 | 0.5% |
| Calibration 2 | 207 | 300.0 | 2.54 | 5.0 | 0.990 | 520 | 0.5% |
| Calibration 3 | 207 | 300.0 | 2.54 | 5.0 | 0.990 | 520 | 0.5% |
| 100% | 207 | 300.0 | 2.54 | 5.0 | 0.990 | 520 | 0.5% |
| 90% | 207 | 300.0 | 2.51 | 5.0 | 0.988 | 512 | 0.5% |
| 80% | 207 | 300.0 | 2.15 | 5.0 | 0.986 | 437 | 0.5% |
| 70% | 207 | 300.0 | 1.85 | 5.0 | 0.984 | 377 | 0.6% |
| 60% | 207 | 300.0 | 1.63 | 5.0 | 0.981 | 331 | 0.6% |
| 50% | 207 | 300.0 | 1.42 | 5.0 | 0.976 | 286 | 0.7% |
| 40% | 207 | 300.0 | 1.23 | 5.0 | 0.970 | 246 | 0.8% |
| 30% | 207 | 300.0 | 1.07 | 5.0 | 0.962 | 213 | 0.9% |
| 20% | 207 | 300.0 | 0.943 | 2.0 | 0.952 | 186 | 0.5% |
| 10% | 207 | 300.0 | 0.807 | 2.0 | 0.939 | 157 | 0.6% |
| Active Idle | 207 | 300.0 | 0.501 | 2.0 | 0.868 | 90.0 | 0.9% |
